2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM Pneumatic unit 05/2007 Edition 16 : When function is successfully checked mark th e pn eumatic unit with a permanent blue point.. 2 2 : Note the …
Pneumatic unit 2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM
05/2007 Edition
15
: Open the main compressed air supply.
: Switch on the placement system at the main switch.
: Execute a reference run.
2
: Check the correct function after the assembly:
By opening the protective covers you must hear a loud noise (fizz).

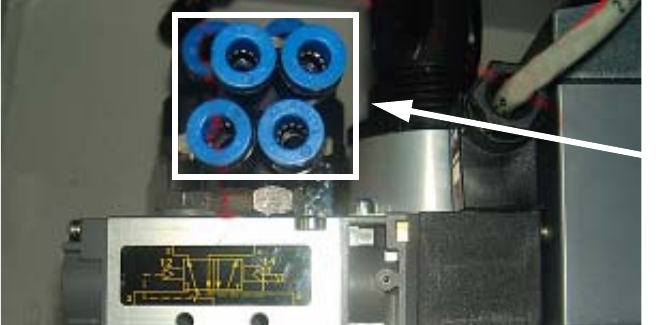

: For further control pull off one of the four air hoses at the distributor.
The hoses are switches parallel.
When function is correct no noticeable pressure must be at this hose.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Air distributor
2 Retrofit instructions Pneumatic maintenance unit SIPLACE D1/D2 / S-27 HM Pneumatic unit
05/2007 Edition
16
: When function is successfully checked mark the pneumatic unit with a permanent blue point..
2
2
: Note the retrofit in the logbook.
2
2
2
2
Marker:
blue point
