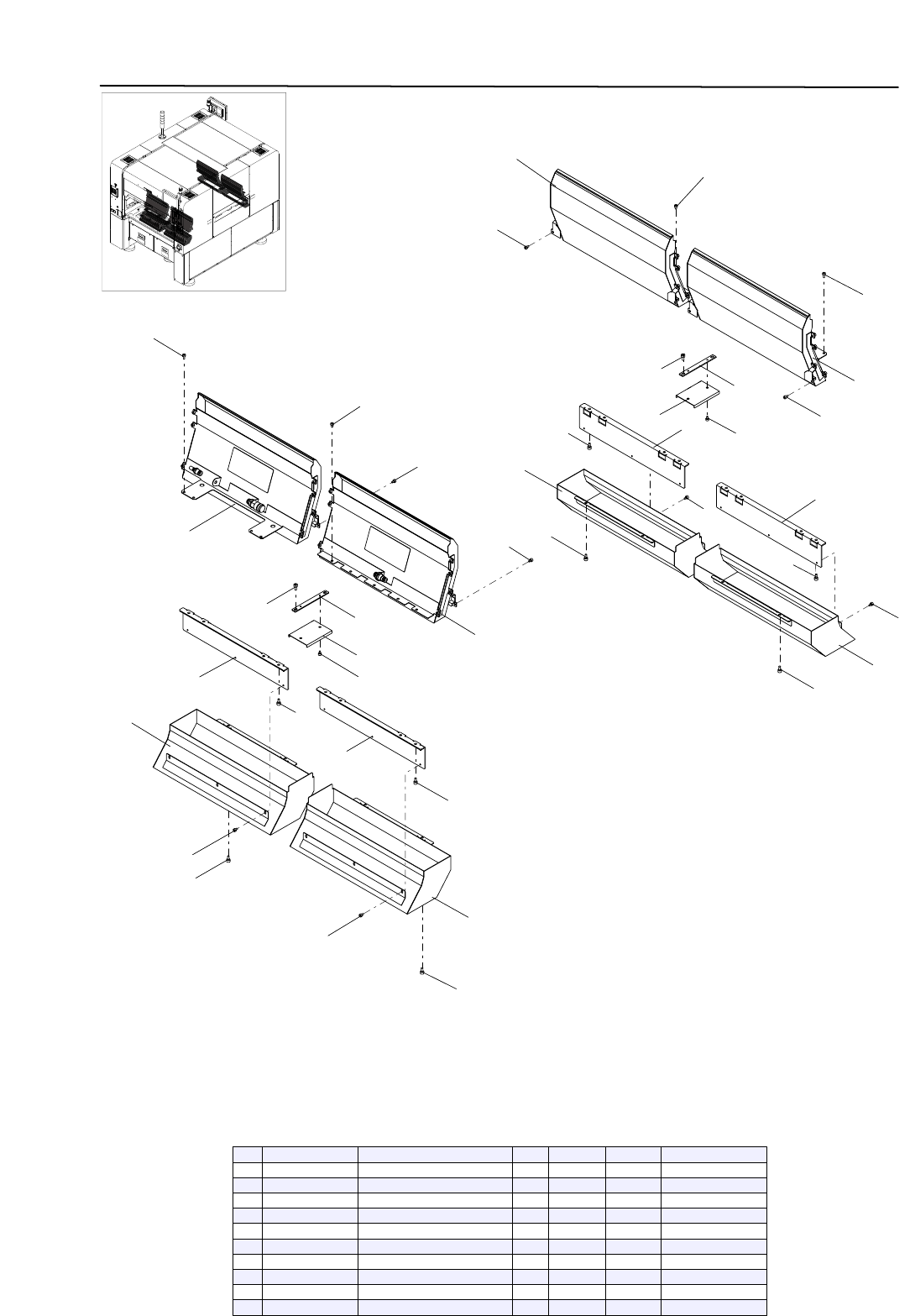

Slope 32
Tape Cutter
KMK-1803
12-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KMC-M3T20-00
COVER UPR.32 ASSY.
2
2
KMC-M3T20-10
COVER UPR.32 ASSY.
2
3
KMC-M3T2B-00
DUCT,CUTTER L
2
4
KMC-M3T2C-00
DUCT,CUTTER R
2
5
KMC-M3T2D-00
STAY,DUCT
4
6
KMC-M3T2E-00
COVER,BASE 32A
2
7
KMC-M3T2F-01
COVER,BASE 32B
2
8
91312-04006
BOLT HEX,SOCKET HEAD
34
9
91312-04008
BOLT HEX,SOCKET HEAD
8
10
91312-05010
BOLT HEX,SOCKET HEAD
20
12
17
20
1
16
9
21
1
23
17
9
10
20
20
21
6
20
23
10
20
3
20
11
22
18
8
18
5
20
20
7
4
3
22
5
19
14
4
13
2
19
19
15
2
19
12
17
20
1
16
9
21
1
23
17
9
10
20
20
21
6
20
23
10
20
3
20
11
22
18
8
18
5
20
20
7
4
3
22
5
19
14
4
13
2
19
19
15
2
19
Safety Cover 32
Tape Cutter
KMK-1803
12-4
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90K41-001260
LABEL,WARNING
2
2
90K41-001410
LABEL,WARNING
2
3
KGS-M1360-00
BOLT
4
4
KHU-M1117-00
PULL
2
5
KJJ-M5127-00
SAFETY SWITCH KEY
2
6
KLW-M11C8-00
BRKT.,COVER SAFETY L
1
7
KLW-M11C9-01
BRKT.,COVER SAFETY R
1
8
KLW-M11CA-00
PLATE,COVER SAFETY
1
9
KLW-M5126-C0
SAFETY SW UNIT ASSY
2
10
KMC-M11C2-00
DUCT 2
2
11
KMC-M11C6-00
COVER,SAFETY L
1
12
KMC-M11C6-A0
SAFETY COVER L ASSY.
1
13
KMC-M11C7-00
COVER,SAFETY R
1
14
KMC-M11C7-A0
SAFETY COVER R ASSY.
1
15
KLW-M1324-00
COVER,FRONT
1
16
KLW-M1325-00
BRKT.,SWITCH
1
17
$NK-3N
NYLON CLIP
2
18
90990-12J001
SCREW, BIN. HEAD W/W
4
19
90990-12J004
SCREW, BIN. HEAD W/W
9
20
90990-12J006
SCREW, BIN. HEAD W/W
10
21
91312-04025
BOLT HEX,SOCKET HEAD
4
22
92902-04200
WASHER,PLAIN
4
23
98902-04006
SCREW BINDING HEAD
4
12
16
21
7
22
17
4
3
17
4
5
7
5
18
2
21
19
10
6
16
13
14
11
16
14
9
15
18
19
8
19
1
20
20
19
12
16
21
7
22
17
4
3
17
4
5
7
5
18
2
21
19
10
6
16
13
14
11
16
14
9
15
18
19
8
19
1
20
20
19
Main Cutter 70
Tape Cutter
KMK-1803
12-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KLW-M3T55-A1
CUTTER,UPPER 70
1
2
KLW-M3T57-A1
CUTTER,LOWER 70
1
3
KMC-M3T0S-11
PLATE,CUTTER BASE 2
1
4
KMC-M3T0W-00
BLOCK
4
5
KMC-M3T30-00
DAMPER STOPPER
2
6
KMC-M3T59-01
BASE,BLADE
1
7
KMC-M3T5A-00
PLATE,SIDE
2
8
KMC-M3T5D-00
STAY,DUCT
1
9
KMC-M3T5P-00
COVER,CUTTER UPR.
1
10
KMC-M3T5R-00
BRKT.,VALVE
1
11
KMC-M3TV1-A0
CUTTER VALVE ASSY
1
12
KMC-M3T0K-10
CUT VALVE SUB ASSY.
1
13
90990-42J052
JOINT
1
14
90990-65J003
SILENCER
2
15
91312-03014
BOLT HEX,SOCKET HEAD
2
16
91312-04008
BOLT HEX,SOCKET HEAD
6
17
91312-04016
BOLT HEX,SOCKET HEAD
8
18
90990-01J074
BOLT HEX,SOCKET HEAD
10
19
91312-05016
BOLT HEX,SOCKET HEAD
13
20
91312-06012
BOLT HEX,SOCKET HEAD
10
21
91312-06020
BOLT HEX,SOCKET HEAD
4
22
99480-06014
PIN,PARALLEL
1
