YSM20R_KMK_pl - 第48页
18 21 20 19 11 36 39 38 28 7 42 22 37 3 40 44 8 9 34 34 7 5 1 42 41 33 6 34 14 37 12 24 30 26 40 3 37 44 8 5 9 32 39 36 43 43 16 27 13 12 10 43 43 4 2 35 37 29 25 17 23 31 37 43 15 43 A B A B 18 21 20 19 11 36 39 38 28 7…
7
4
3
26
25
12
13
23
24
2
10
23
5
5
25
17
15
22
22
12
9
24
1
18
8
23
1
5
5
22
22
11
19
6
21
21
20
14
16
A
B
A
B
7
4
3
26
25
12
13
23
24
2
10
23
5
5
25
17
15
22
22
12
9
24
1
18
8
23
1
5
5
22
22
11
19
6
21
21
20
14
16

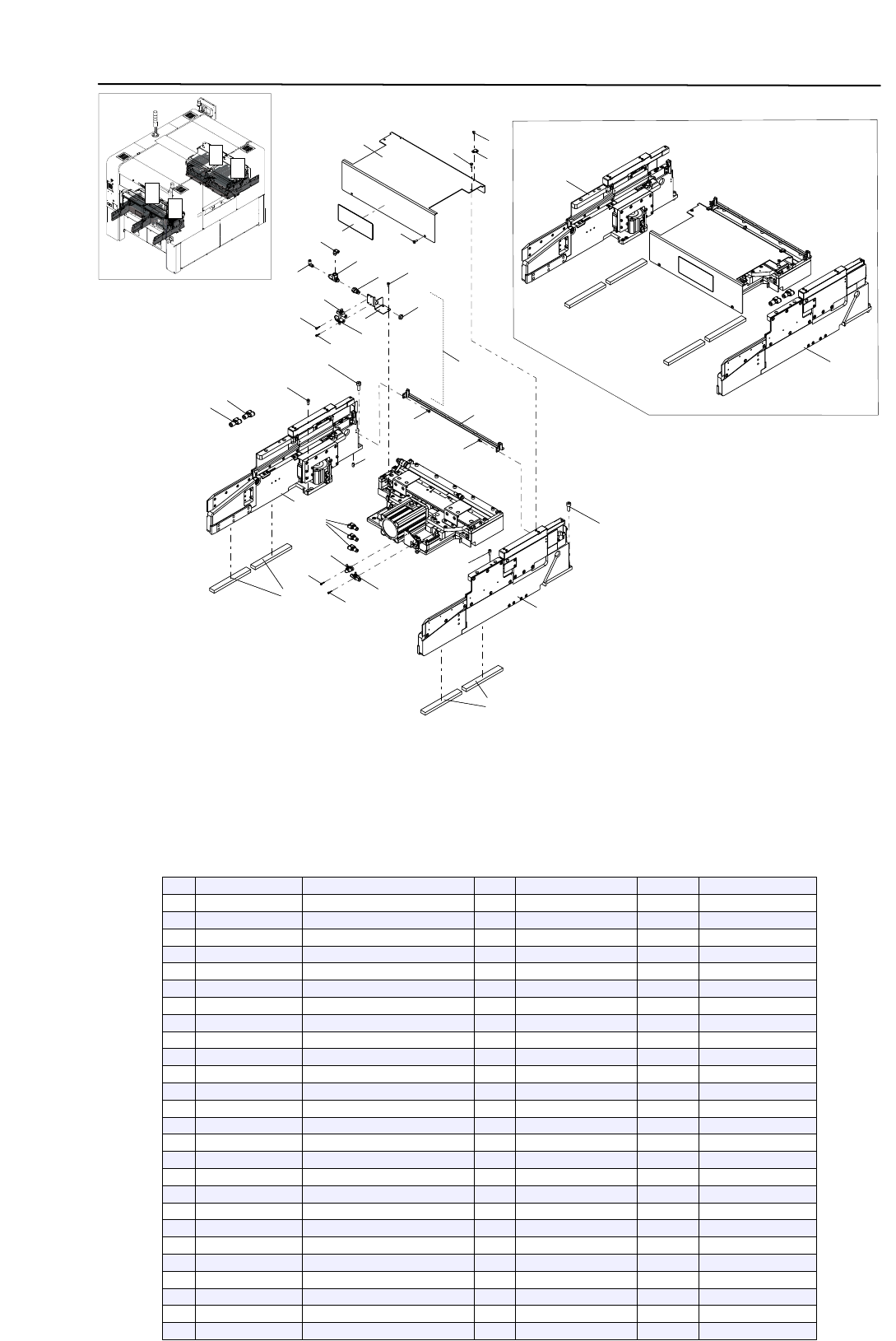

NSF Clamp Unit (PILOT Valve )
Feeder
KMK-1901
3-26
B
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$AUKM4-01
JOINT
1
2
$UY4
JOINT
3
3
$UY6
JOINT
1
4
$UYD6-4
JOINT
1
5
KLW-M916A-00
SPEED CONTROLLER
4
6
KMK-M37D0-00
LABEL,ALFDR
1
7
KMK-M3J0J-00
PILOT VALVE ASSY.
1
8
KMK-M3J1E-00
BRKT.,JOINT
1
9
KMK-M3J37-00
PILOT VALVE
1
10
KMK-M3J60-00
STAY,HNS.
1
11
KMK-M3JC1-00
COVER,CLAMP
1
12
KMK-M3JC5-00
SEAT
4
13
KMK-M3JL0-50
CLAMP FR1 L ASSY.
1
14
KMK-M3JL0-60
CLAMP FR2 L ASSY.
1
Different parts for A
15
KMK-M3JR0-50
CLAMP FR1 R ASSY.
1
16
KMK-M3JR0-60
CLAMP FR2 R ASSY.
1
Different parts for A
17
KYB-M702S-00
PIPE_FITTINGS
1
18
LE6-M5J3H-00
JOINT
1
19
$NK-4N
NYLON CLIP
1
20
90990-01J058
BOLT HEX,SOCKET HEAD
1
21
90990-01J131
BOLT HEX,SOCKET HEAD
4
22
91312-03012
BOLT HEX,SOCKET HEAD
8
23
91312-04008
BOLT HEX,SOCKET HEAD
6
24
91312-05012
BOLT HEX,SOCKET HEAD
4
25
91312-08020
BOLT HEX,SOCKET HEAD
2
26
99480-06012
PIN,PARALLEL
2
18
21
20
19
11
36
39
38
28
7
42
22
37
3
40
44
8
9
34
34
7
5
1
42
41
33
6
34
14
37
12
24
30
26
40
3
37
44
8
5
9
32
39
36
43
43
16
27
13
12
10
43
43
4
2
35
37
29
25
17
23
31
37
43
15
43
A
B
A
B
18
21
20
19
11
36
39
38
28
7
42
22
37
3
40
44
8
9
34
34
7
5
1
42
41
33
6
34
14
37
12
24
30
26
40
3
37
44
8
5
9
32
39
36
43
43
16
27
13
12
10
43
43
4
2
35
37
29
25
17
23
31
37
43
15
43

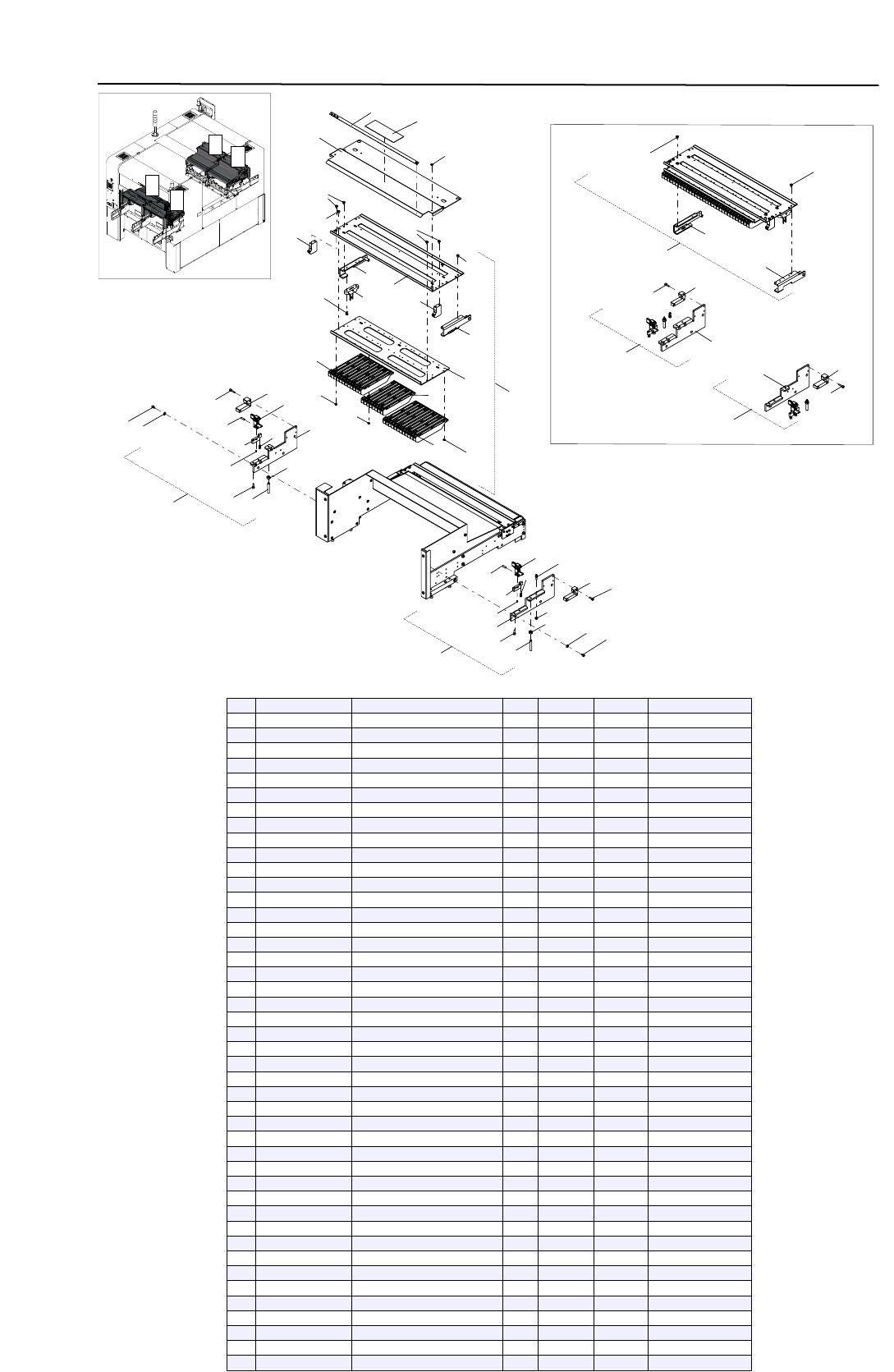

NSF Clamp Unit (Shutter Lever )
Feeder
KMK-1901
3-27
B
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-06J002
BOLT,BUTTON HEAD
2
2
90K41-001840
LABEL,CAUTION
1
3
KHJ-MC147-02
SPRING,TAPE GUIDE F
2
4
KKG-M373L-00
LABEL,FEEDER 32-12P
1
5
KLF-M374S-00
GUIDE,FEEDER UPPER
2
6
KLF-M374T-50
GUIDE,FEEDER UPPER
1
7
KLF-M926E-00
SPRING PLUNGER
2
8
KLW-M374A-00
BASE,CLAMP
2
9
KLW-M374C-00
LEVER,CLAMP
2
10
KMK-M3JS3-L0
GUIDE L,FEEDER ASSY.
1
11
KMK-M3JS3-R0
GUIDE R,FEEDER ASSY.
1
12
KMK-M3JSH-00
PLATE,CLAMP
2
13
KMK-M3JSJ-00
PLATE,UPPER
1
14
KMK-M3JSK-L0
PLATE LL,LINK
1
15
KMK-M3JSK-R0
PLATE RR,LINK
1
16
KMK-M3JSL-L0
PLATE LR,LINK
1
17
KMK-M3JSL-R0
PLATE RL,LINK
1
18
KMK-M3JSM-L0
LEVER LL ASSY.
1
19
KMK-M3JSM-R0
LEVER RL ASSY.
1
20
KMK-M3JSN-L0
LEVER,LR ASSY.
1
21
KMK-M3JSN-R0
LEVER,RR ASSY.
1
22
KMK-M3JSP-L0
BRKT.,LL FRAME
1
23
KMK-M3JSP-R0
BRKT.,RR FRAME
1
24
KMK-M3JSR-L0
BRKT.,LR FRAME
1
25
KMK-M3JSR-R0
BRKT.,RL FRAME
1
26
KMK-M3JSU-00
PIN,COVER
1
27
KMK-M3JSV-00
COVER,TOP
1
28
KMK-M3JT3-L0
STOPPER,LL COVER
1
29
KMK-M3JT3-R0
STOPPER,RL COVER
1
30
KMK-M3JT4-L0
STOPPER,LR COVER
1
31
KMK-M3JT4-R0
STOPPER,RR COVER
1
32
KMK-M3JT9-00
PLATE,UPPER
1
33
KW7-M5127-00
SAFETY SWITCH KEY
1
34
90990-10J008
SCREW, BINDING HEAD
48
35
90990-46J016
BOLT, THIN HEAD
4
36
91312-04006
BOLT HEX,SOCKET HEAD
6
37
91312-04012
BOLT HEX,SOCKET HEAD
13
38
91312-04016
BOLT HEX,SOCKET HEAD
3
39
92902-04200
WASHER,PLAIN
6
40
92A08-03305
SCREW SET
2
41
95302-04600
NUT HEXAGON
1
42
95302-06600
NUT HEXAGON
2
43
98902-04006
SCREW BINDING HEAD
18
44
99480-04014
PIN,PARALLEL
2
2
10
1
16
19
4
22
3
14
6
15
17
22
7
16
24
20
21
22
9
18
8
24
13
5
21
11
9
22
18
20
23
12
23
A
B
A
B
2
10
1
16
19
4
22
3
14
6
15
17
22
7
16
24
20
21
22
9
18
8
24
13
5
21
11
9
22
18
20
23
12
23
NSF Clamp Unit (ShutterAxis 1)
Feeder
KMK-1901
3-28
AB Common
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$UT6
JOINT
1
2
90990-06J002
BOLT,BUTTON HEAD
2
3
90990-06J003
BOLT,BUTTON HEAD
2
4
90990-06J014
BOLT,BUTTON HEAD
2
5
KKG-M373L-00
LABEL,FEEDER 32-12P
1
6
KLW-M3T0H-00
COUPLER,SOCKET
1
7
KLW-M8803-00
COUPLER,PLUG D4
1
8
KMK-M3JS2-00
SHUTTER
1
9
KMK-M3JS5-00
FOOT
2
10
KMK-M3JSG-00
KEY,PLATE
1
11
KMK-M3JSW-L0
COVER,LL
1
12
KMK-M3JSX-L0
COVER,LR
1
13
KMK-M3JSY-00
TAPE,COVER
1
14
KMK-M5126-B0
SAFETY SW UNIT ASSY
1
15
KMK-M654D-00
VALVE SHUTTER ASSY
1
16
KMK-M654E-00
SAFETY SW ASSY
1
17
90990-01J052
BOLT HEX,SOCKET HEAD
2
18
90990-01J065
BOLT HEX,SOCKET HEAD
4
19
91312-03010
BOLT HEX,SOCKET HEAD
2
20
91312-04014
BOLT HEX,SOCKET HEAD
4
21
91312-05016
BOLT HEX,SOCKET HEAD
4
22
92902-04200
WASHER,PLAIN
8
23
98902-04006
SCREW BINDING HEAD
4
24
99480-06012
PIN,PARALLEL
2
