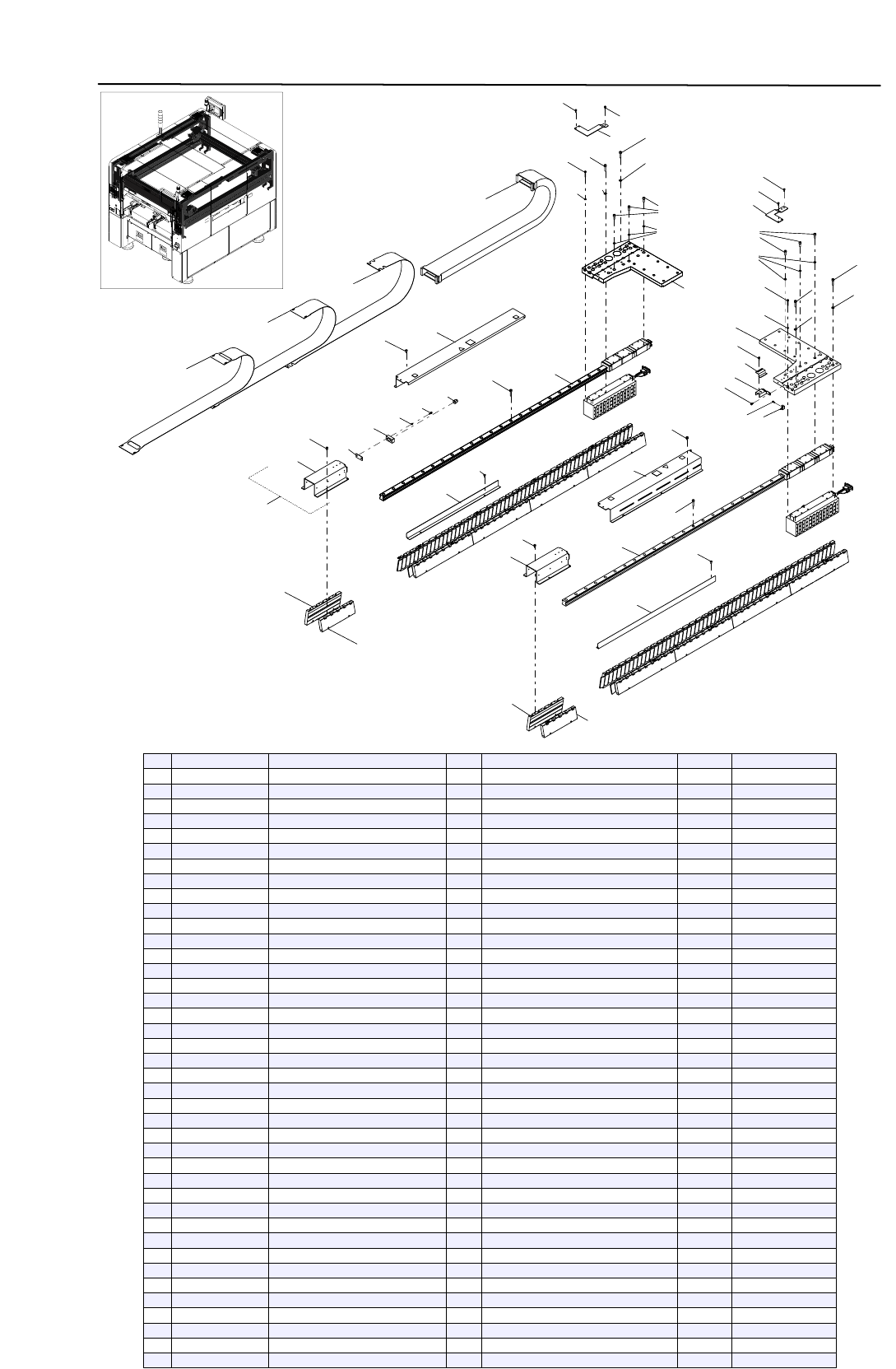

Y-Axis 1-beam
Moving-axis
KMK-1808
4-7
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KHN-M22F6-00
WASHER,SWR06
24
2
KHW-M2654-00
PLATE,DAMPER
2
3
KLW-M260B-10
TAPE 1,Y DUCT
1
1-beam
4
KLW-M260C-10
TAPE 2,Y DUCT
1
1-beam
5
KLW-M260D-10
TAPE 3,Y DUCT
1
1-beam
6
KLW-M2657-00
STOPPER
1
1-beam
7
KLW-M2658-10
STOPPER
1
1-beam
8
KLW-M2678-10
DUCT,CABLE
1
1-beam
9
KLW-M2682-10
DOG,ORIGIN
1
1-beam
10
KLW-M2684-00
STAY,DOG
1
1-beam
11
KLW-M26CP-00
STATOR C ASSY.
2
1-beam
12
KLW-M26CR-00
STATOR D ASSY.
2
1-beam
13
KLW-M26FA-01
BRACKET,DAMPER 2
2
1-beam
14
KLW-M26FA-A0
Y DAMPER 2 ASSY.
2
1-beam
15
KLW-M26TD-00
COVER,LINEAR 3
1
1-beam
16
KLW-M26TE-00
COVER,LINEAR 4
1
1-beam
17
KLW-M26TG-A0
LINEAR COVER 2 ASSY.
1
1-beam
18
KLW-M26TH-A0
LINEAR COVER 1 ASSY.
1
1-beam
19
KLW-M653A-10
SENSOR,Y ORG ASSY
1
1-beam
20
KMK-M2613-S0
PLATE SET
1
TypePV THK
21
KMK-M2676-10
GUIDE SET,Y AXIS
1
1-beam TypePV THK
22
KV7-M2651-00
DAMPER, STOPPER
2
23
90990-08J043
SCREW, PAN HEAD
5
24
90990-30J090
SHIM(S)
2
25
90990-41J180
COLLAR
4
26
90990-01J110
BOLT,HEX.S/HEAD WW
6
27
91312-04008
BOLT HEX,SOCKET HEAD
11
28
91312-04010
BOLT HEX,SOCKET HEAD
4
29
91312-04025
BOLT HEX,SOCKET HEAD
4
30
91312-05008
BOLT HEX,SOCKET HEAD
8
31
91312-06016
BOLT HEX,SOCKET HEAD
24
32
91312-06025
BOLT HEX,SOCKET HEAD
76
TypePV
33
92902-04600
WASHER,PLAIN
4
34
92902-06600
WASHER,PLAIN
20
35
97602-03310
SCREW PAN HEAD W/WASHER
2
36
KLW-M2613-S4
PLATE SET
1
TypeSV
37
KLW-M2676-10
GUIDE SET,Y AXIS
1
1-beam TypeSV
38
90990-01J003
BOLT HEX,SOCKET HEAD
56
TypeSV
39
KMK-M2615-S0
PLATE SET
1
TypePV IKO
H025936-2019/1/15
40
KMK-M2676-30
GUIDE SET,Y AXIS
1
1-beam TypePV IKO Block end is blue
H025936-2019/1/15
23
5
29
21
28
7
32
9
38
14
18
39
15
35
10
30
16
31
10
35
13
30
30
35
40
12
17
20
40
11
22
19
32
26
35
41
30
27
25
33
37
3
36
24
31
6
4
31
1
34
8
34
2
23
5
29
21
28
7
32
9
38
14
18
39
15
35
10
30
16
31
10
35
13
30
30
35
40
12
17
20
40
11
22
19
32
26
35
41
30
27
25
33
37
3
36
24
31
6
4
31
1
34
8
34
2

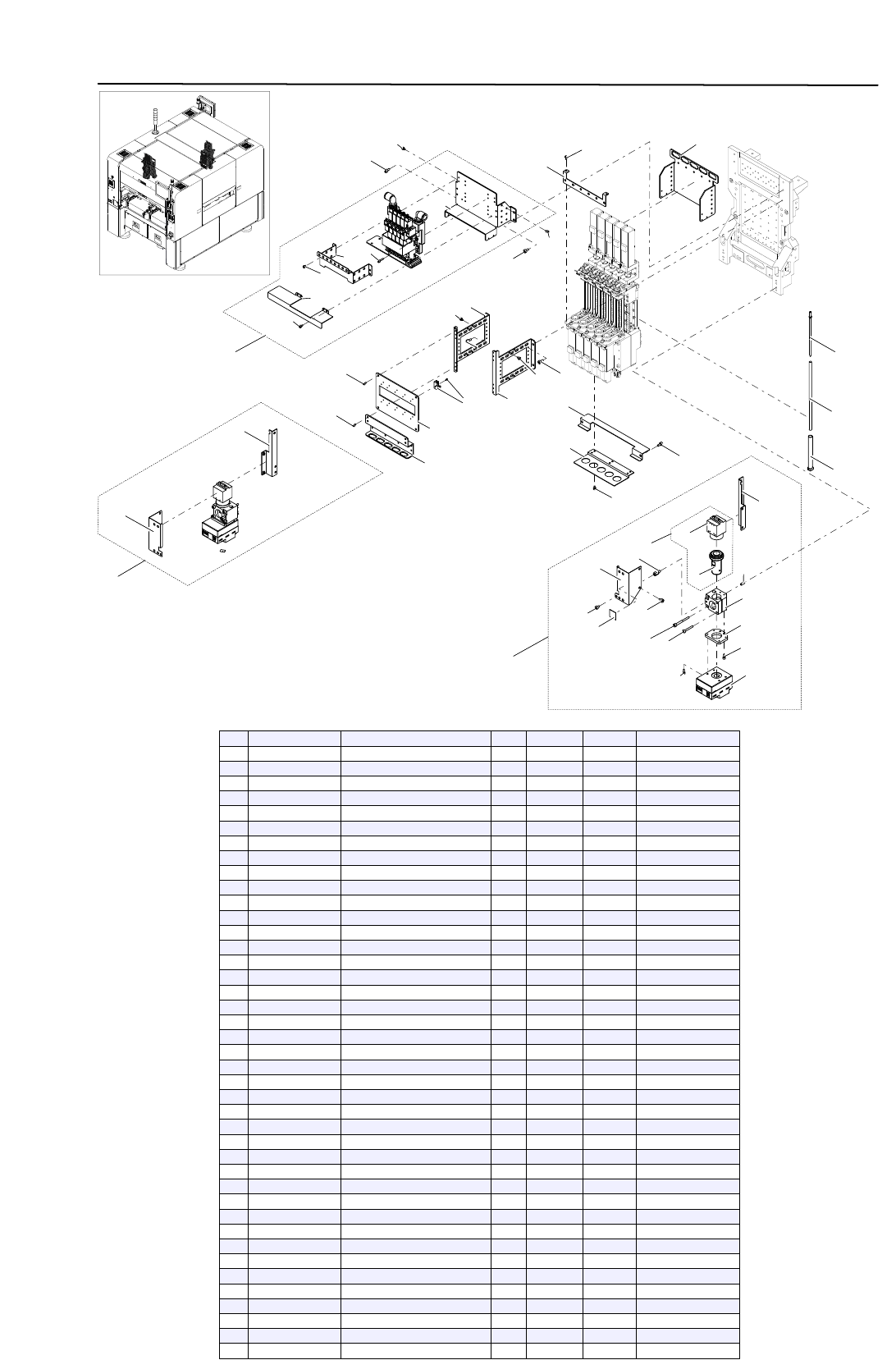

FID Camera / Stay (FM)
Head
KMK-1803
5-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90563-04J100
SPACER
2
2
90K41-001320
LABEL,CAUTION
2
3
KHT-M76B0-01
LENS FID.
2
4
KLW-M7210-00
CCD CAMERA
2
5
KLW-M76D0-00
CAMERA ASSY.
2
6
KLW-M71C1-00
BRACKET,RIGHT
1
7
KLW-M71C2-00
BRACKET,LEFT
1
8
KLW-M71C6-00
COVER,CAMERA R
1
9
KLW-M71C8-00
COVER,CAMERA L
1
10
KLW-M7401-00
BRKT.,COVER HEAD
2
11
KLW-M7402-00
COVER,HEAD 1
1
12
KLW-M7403-00
COVER,HEAD 2
1
13
KLW-M7404-00
COLLAR,SPRING
5
14
KLW-M7405-00
COVER,UNDER
1
15
KLW-M7406-00
BRKT.,Z AXIS HNS.
1
16
KLW-M7408-00
BRKT.,EARTH
1
17
KLW-M7409-00
SPRING,RETURN
5
18
KLW-M740A-00
COVER,UNDER
1
19
KLW-M740B-00
GUIDE,SPRING
5
20
KLW-M740C-00
HOLDER,TUBE
10
21
KLW-M7450-04
EJECTOR ASSY.
1
22
KLW-M7451-00
BRKT.,EJECTOR
1
23
KLW-M7452-00
BRKT.,HNS.
1
24
KLW-M7453-00
COVER,BOARD
1
25
KLW-M7601-00
HOLDER,CAMERA
2
26
KLW-M76A0-00
FIDUCIAL LIGHT ASSY.
2
27
KLW-M76L4-00
STAY,FID. LIGHT
2
28
KMC-M7610-00
VISION ATTACHMENT L
1
29
KMC-M7620-00
VISION ATTACHMENT R
1
30
91312-03004
BOLT HEX,SOCKET HEAD
10
31
91312-03005
BOLT HEX,SOCKET HEAD
10
32
91312-03008
BOLT HEX,SOCKET HEAD
12
33
91312-03012
BOLT HEX,SOCKET HEAD
4
34
91312-04006
BOLT HEX,SOCKET HEAD
6
35
91312-04008
BOLT HEX,SOCKET HEAD
8
36
91312-04025
BOLT HEX,SOCKET HEAD
4
37
91312-04040
BOLT HEX,SOCKET HEAD
4
38
91317-03005
BOLT HEX,SOCKET HEAD
6
39
91317-04008
BOLT HEX,SOCKET HEAD
2
40
92012-03005
BOLT BUTTON HEAD
8
41
99480-04010
PIN,PARALLEL
4
20
15
9
23,24,25,26,27
16
20
13
8
7
1
6
3
12
5
4
11
2
10
22
14
19
21
18
17
20
15
9
23,24,25,26,27
16
20
13
8
7
1
6
3
12
5
4
11
2
10
22
14
19
21
18
17
R Axis Assy (FM)
Head
KMK-1803
5-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90112-2AJ010
BOLT, HEX.SOCKET HEAD
20
2
90152-03J03
SCREW SET
10
3
90990-28J140
WASHER,PLAIN
20
4
90K2L-0G1111
AC SERVO MOTOR
1
5
90K2L-0G1112
AC SERVO MOTOR
1
6
90K2L-0G1113
AC SERVO MOTOR
1
7
90K2L-0G1128
AC SERVO MOTOR
1
8
90K2L-0G1129
AC SERVO MOTOR
1
9
KJX-M7C4A-00
COLLAR,BEARING
5
10
KLW-M7431-00
PLATE,MOTOR R
5
11
KLW-M7432-00
PULLEY,MOTOR R
5
12
KLW-M7433-00
SHEET
5
13
KLW-M7442-00
BLOCK,SHAFT
1
14
KLW-M7445-00
PLATE,SPLINE
1
15
KLW-M7449-00
PLATE,SPLINE
5
16
KLW-M744B-00
PLATE,SPRING
1
17
KLW-M74RA-00
BELT
5
18
91312-03008
BOLT HEX,SOCKET HEAD
10
19
91312-03010
BOLT HEX,SOCKET HEAD
12
20
91317-03008
BOLT HEX,SOCKET HEAD
26
21
92902-03200
WASHER,PLAIN
10
22
99480-03010
PIN,PARALLEL
2
23
KLW-M7430-00
R1 MOTOR ASSY.
1
with 4
24
KLW-M7430-10
R2 MOTOR ASSY.
1
with 5
25
KLW-M7430-20
R3 MOTOR ASSY.
1
with 6
26
KLW-M7430-30
R4 MOTOR ASSY.
1
with 7
27
KLW-M7430-40
R5 MOTOR ASSY.
1
with 8
