YSM20R_KMK_pl - 第64页

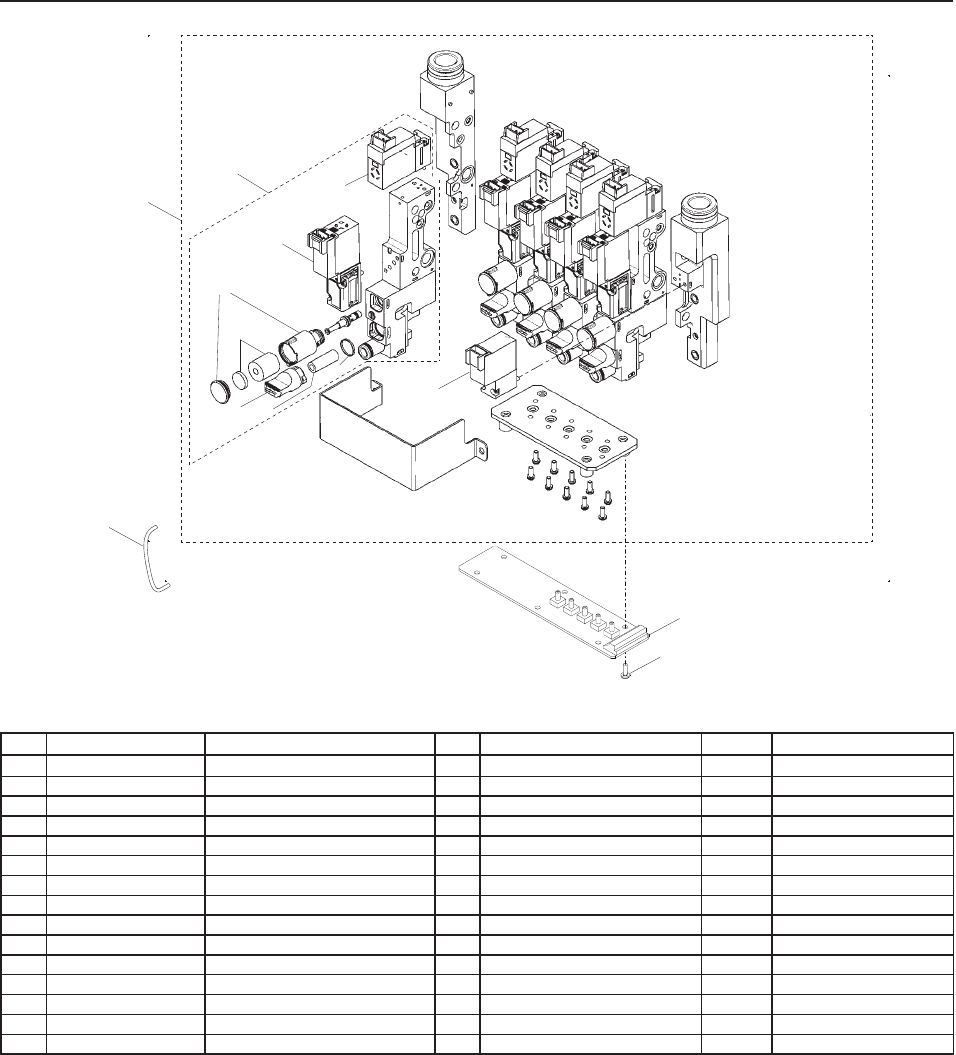

6 2 10 9 3 8 7 5 1 4 11 12 13,14 15 Ejector (FM) Head KMK-1803 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KL W -M745A-02 EJECTOR 1 2 KLF-M7152-00 V AL VE 1 3 KLF-M7153-00 V AL VE 1 4 KL W -M715…
17
3
16
4
6
7
2
8
1
2
15
14
3
13
12
11
9
5
10
17
3
16
4
6
7
2
8
1
2
15
14
3
13
12
11
9
5
10
Side View Unit (FM)
Head
KMK-1803
5-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-41J128
COLLAR
4
2
91312-03005
BOLT HEX,SOCKET HEAD
8
3
91312-03010
BOLT HEX,SOCKET HEAD
4
4
91312-05030
BOLT HEX,SOCKET HEAD
4
5
92012-03005
BOLT BUTTON HEAD
4
6
99480-06018
PIN,PARALLEL
4
7
KLW-M7921-00
BRKT.,LIGHT L
1
8
KLW-M7922-00
BRKT.,LIGHT R
1
9
KLW-M7923-01
COVER,LIGHT
1
10
KLW-M7924-01
BRKT.,LIGHT
1
11
KLW-M7925-00
SHEET
1
12
KLW-M7926-01
DIFFUSER
1
13
KLW-M7927-00
DIFFUSER,UPPER
1
14
KLW-M7928-00
PLATE,LIGHT
1
15
KLW-M7981-00
S.V.LIGHT BRD ASSY
1
16
KLW-M79C0-01
S.V.CAM.ASSY.
1
17
KLW-M79L0-00
S.V.LIGHT ASSY.
1
6
2
10
9
3
8
7
5
1
4
11
12
13,14
15
Ejector (FM)
Head
KMK-1803
No. Part No. Part Name Q'ty Remarks
Compati. Revision No.-date
1 KLW-M745A-02 EJECTOR 1
2 KLF-M7152-00 VALVE 1
3 KLF-M7153-00 VALVE 1
4 KLW-M7154-00 BIT 1
5 KLW-M7156-00 BIT CAP 1
6 KLW-M7157-10 EJECTOR 1
7 KLW-M7158-00 VALVE 1
8 KLW-M715A-00 MUFFLER 1
9 KLW-M715B-00 GASKET 1
10 KLW-M8527-00 FILTER 1
11 KHY-M4592-10 VAC5 SENS BRD ASSY 1
12 98502-03008 SCREW,PAN HEAD 4
13 KLW-M74T1-00 TUBE 2 04-205mm H1,H5
14 KLW-M74T2-00 TUBE 3 04-200mm H2,H3,H4
15 KLW-M7155-00 FILTER CAP 1
5-6
19
26
23
4
7
9
10
27
25
27
14
15
12
3
27
28
26
27
17
18
27
27
16
26
11
25
26
21
31
22
20
6
30
29
24
8
5
2
13
26
26
1
19
26
23
4
7
9
10
27
25
27
14
15
12
3
27
28
26
27
17
18
27
27
16
26
11
25
26
21
31
22
20
6
30
29
24
8
5
2
13
26
26
1
FID Camera / Stay (HM)
Head
KMK-1803
5-7
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90K41-001320
LABEL,CAUTION
2
2
90563-04J100
SPACER
2
3
90990-41J123
COLLAR
3
4
KHT-M76B0-01
LENS FID.
1
5
KLW-M7210-00
CCD CAMERA
1
6
KLW-M76D0-00
CAMERA ASSY.
2
7
KLW-M7117-00
STOPPER
1
8
KLW-M71C1-00
BRACKET,RIGHT
1
9
KLW-M71C2-00
BRACKET,LEFT
1
10
KLW-M71C3-00
STAY,EJECTOR
1
11
KLW-M71C4-01
STAY,HOSE
1
12
KLW-M71C5-00
BRACKET,CABLE
1
13
KLW-M71C6-00
COVER,CAMERA R
1
14
KLW-M71C7-00
BRACKET,CABLE
1
15
KLW-M71C8-00
COVER,CAMERA L
1
16
KLW-M71C9-01
PLATE 2,HARNESS
1
17
KLW-M71CB-00
PLATE,HARNESS
1
18
KLW-M71Y0-00
LABEL,HEAD SERIAL
1
19
KLW-M740C-00
HOLDER,TUBE
2
20
KLW-M7601-00
HOLDER,CAMERA
2
21
KLW-M76A0-00
FIDUCIAL LIGHT ASSY.
2
22
KLW-M76L4-00
STAY,FID. LIGHT
2
23
KMC-M7610-00
VISION ATTACHMENT L
1
24
KMC-M7620-00
VISION ATTACHMENT R
1
25
91312-03008
BOLT HEX,SOCKET HEAD
12
26
91312-04006
BOLT HEX,SOCKET HEAD
14
27
91312-04008
BOLT HEX,SOCKET HEAD
10
28
91312-04012
BOLT HEX,SOCKET HEAD
3
29
91312-04025
BOLT HEX,SOCKET HEAD
4
30
91312-04040
BOLT HEX,SOCKET HEAD
4
31
99480-04010
PIN,PARALLEL
4
