YSM20R_KMK_pl - 第68页
2 3 12 4 7 3 1 6 3 4 9 3 1 11 5 7 8 6 8 3 1 6 3 2 10 3 1 3 2 3 12 4 7 3 1 6 3 4 9 3 1 11 5 7 8 6 8 3 1 6 3 2 10 3 1 3 Z Axis Assy (HM) Head KMK-1803 5-10 NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date 1 9…
13
14
8
6
5
10
10
2
6
2
16
2
5
2
5
7
3
5
15
3
2
6
15
16
2
6
2
2
9
9
10
9
11
10
9
12
4
4
16
1
1
1
1
16
13
14
8
6
5
10
10
2
6
2
16
2
5
2
5
7
3
5
15
3
2
6
15
16
2
6
2
2
9
9
10
9
11
10
9
12
4
4
16
1
1
1
1
16

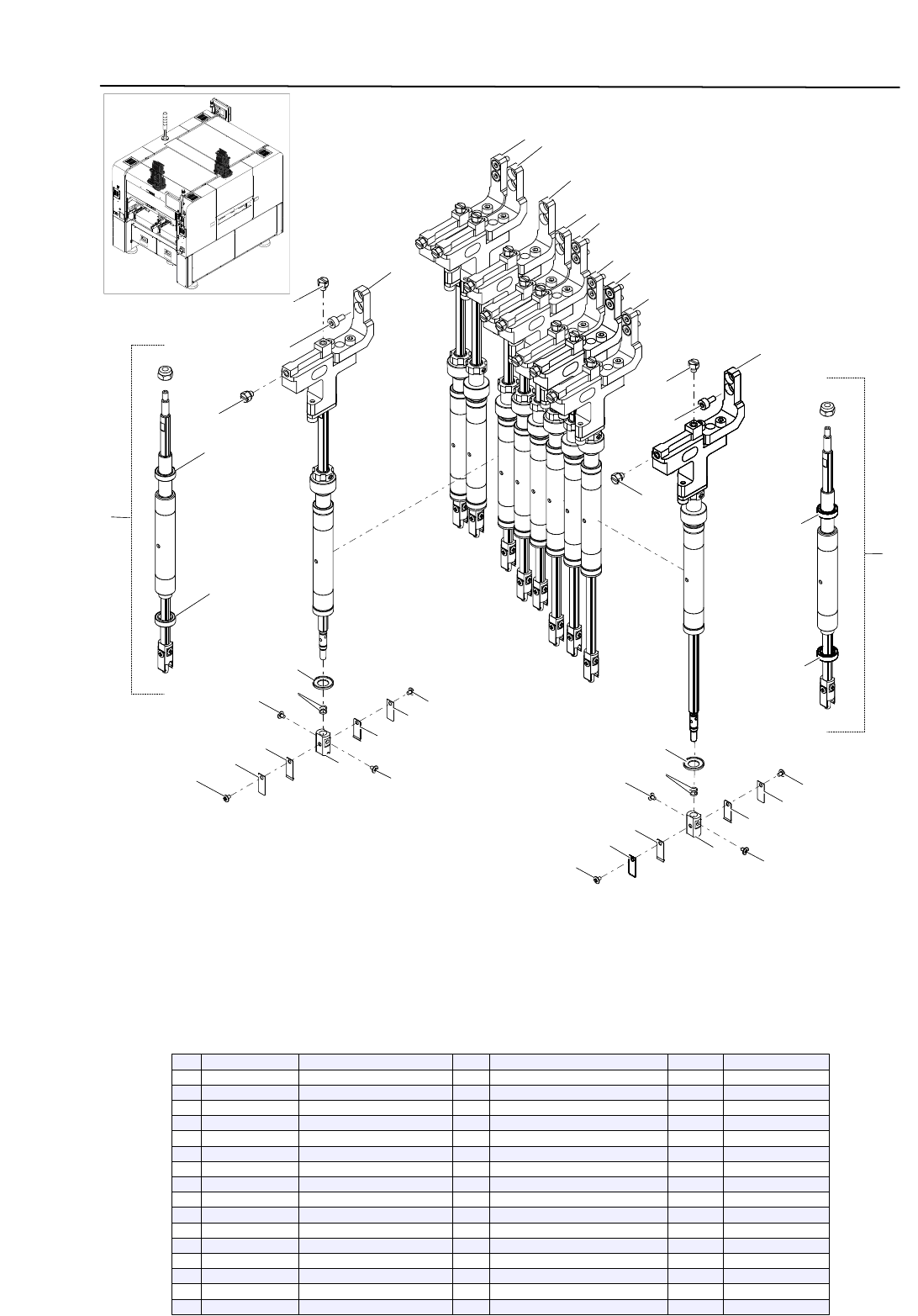

Shaft Head Assy (HM)
Head
KMK-1803
5-9
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$PF-M3
PLUG
20
2
90990-08J016
SCREW, PAN HEAD
40
3
90990-17J053
O-RING
20
4
91312-03006
BOLT HEX,SOCKET HEAD
20
5
KG7-M7137-A0
LEAF SPRING
20
6
KLW-M714W-00
PLATE,SPRING
20
7
KHY-M7105-00
HOLDER,NOZZLE
8
8
KKS-M7105-00
HOLDER,NOZZLE
2
9
KLW-M7107-A1
HEAD SHAFT 1 ASSY.
4
Under a pulley
10
KLW-M7107-B0
HEAD SHAFT 2 ASSY.
4
On a pulley
11
KLW-M7107-C1
HEAD SHAFT 1B ASSY.
1
Under a pulley .With V slot Holder
12
KLW-M7107-D0
HEAD SHAFT 2B ASSY.
1
On a pulley . With V slot Holder
13
KLW-M711S-A0
SHAFT 1,SPARE
1
Spare
14
KLW-M711S-B0
SHAFT 2,SPARE
1
Spare With V slot Holder
15
KHY-M7108-00
COLLAR,BRG.
10
16
90990-25J026
BEARING
20
2
3
12
4
7
3
1
6
3
4
9
3
1
11
5
7
8
6
8
3
1
6
3
2
10
3
1
3
2
3
12
4
7
3
1
6
3
4
9
3
1
11
5
7
8
6
8
3
1
6
3
2
10
3
1
3

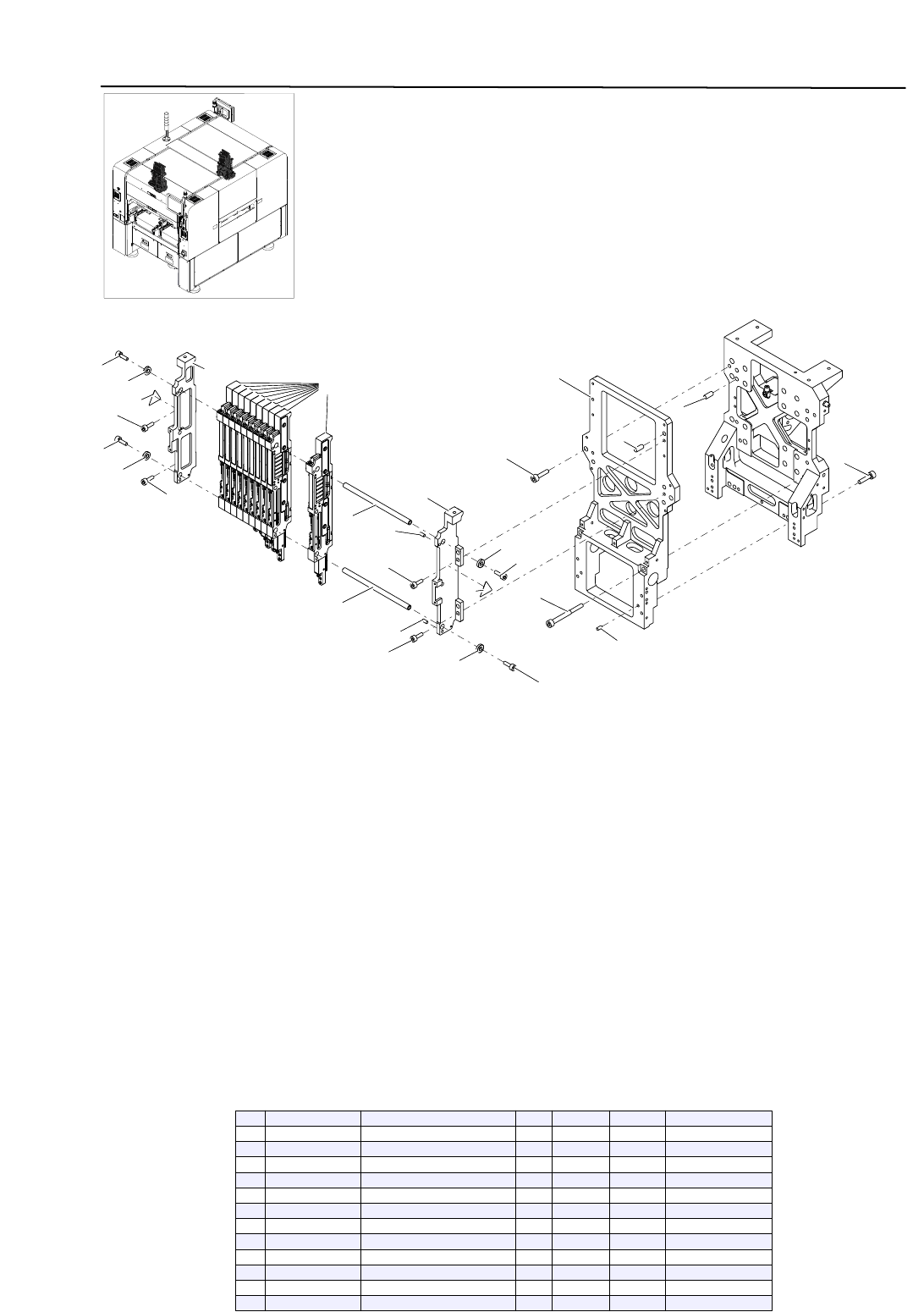

Z Axis Assy (HM)
Head
KMK-1803
5-10
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-28J078
WASHER,PLAIN
4
2
90K41-001400
LABEL,CAUTION
2
3
91312-05014
BOLT HEX,SOCKET HEAD
8
4
91312-06022
BOLT HEX,SOCKET HEAD
4
5
91312-06060
BOLT HEX,SOCKET HEAD
2
6
99480-04008
PIN,PARALLEL
4
7
99480-06014
PIN,PARALLEL
4
8
KHY-M71G3-00
SHAFT 1
2
9
KLW-M7103-01
PLATE,HEAD
1
10
KLW-M71G1-01
SIDE PLATE,R
1
11
KLW-M71G2-01
SIDE PLATE,L
1
12
KLW-M71G5-00
Z UNIT ASSY.
10
Ejector (HM)
Head
KMK-1803
5-11
6
10
9
3
8
7
5
1
4
2
12
11
14
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLW-M7151-02 EJECTOR,RESIN 1
2 KLF-M7152-00 VALVE 1
3 KLF-M7153-00 VALVE 1
4 KLW-M7154-00 BIT 1
5 KLW-M7156-00 BIT CAP 1
6 KLW-M7157-10 EJECTOR 1
7 KLW-M7158-00 VALVE 1
8 KLW-M715A-00 MUFFLER 1
9 KLW-M715B-00 GASKET 1
10 KLW-M8527-00 FILTER 1
11 KHY-M4592-01 VAC SENSOR BRD ASSY 1
12 90563-23J060 SPACER 4
13 KLW-M74T1-00 TUBE 1 04-205mm
14 KLW-M7155-00 FILTER CAP 1
