SIPLACE On board PCB inspection (M270 selective sales release, only)

8/8/2017 ASM Assembly Systems Page 14

License:

SIPLACE PCB Inspection – Machine Connection (Floating- license)

Three new types of inspections can be performed when a board is produced:

- Solder paste (SP),

- Before placement (BPL)

- After placement (APL).

The inspection areas are coupled to placement positions which will be inspected with the board camera.

Solder paste inspections are performed at the first station in the line.

Precondition for Hotlink machine SX-series is the PCB camera 03075363-02

All machine with Gig E camera are able to measure the solder paste.

Note: A feature description will be created for this!

SIPLACE Pro - On board PCB inspection

8/8/2017 ASM Assembly Systems Page 15

Inspect SP – Solder paste

Inspect BPL – Before Placement

Inspect APL – After Placement

Placementlist

Inspection area will be displayed as a colored

rectangle.

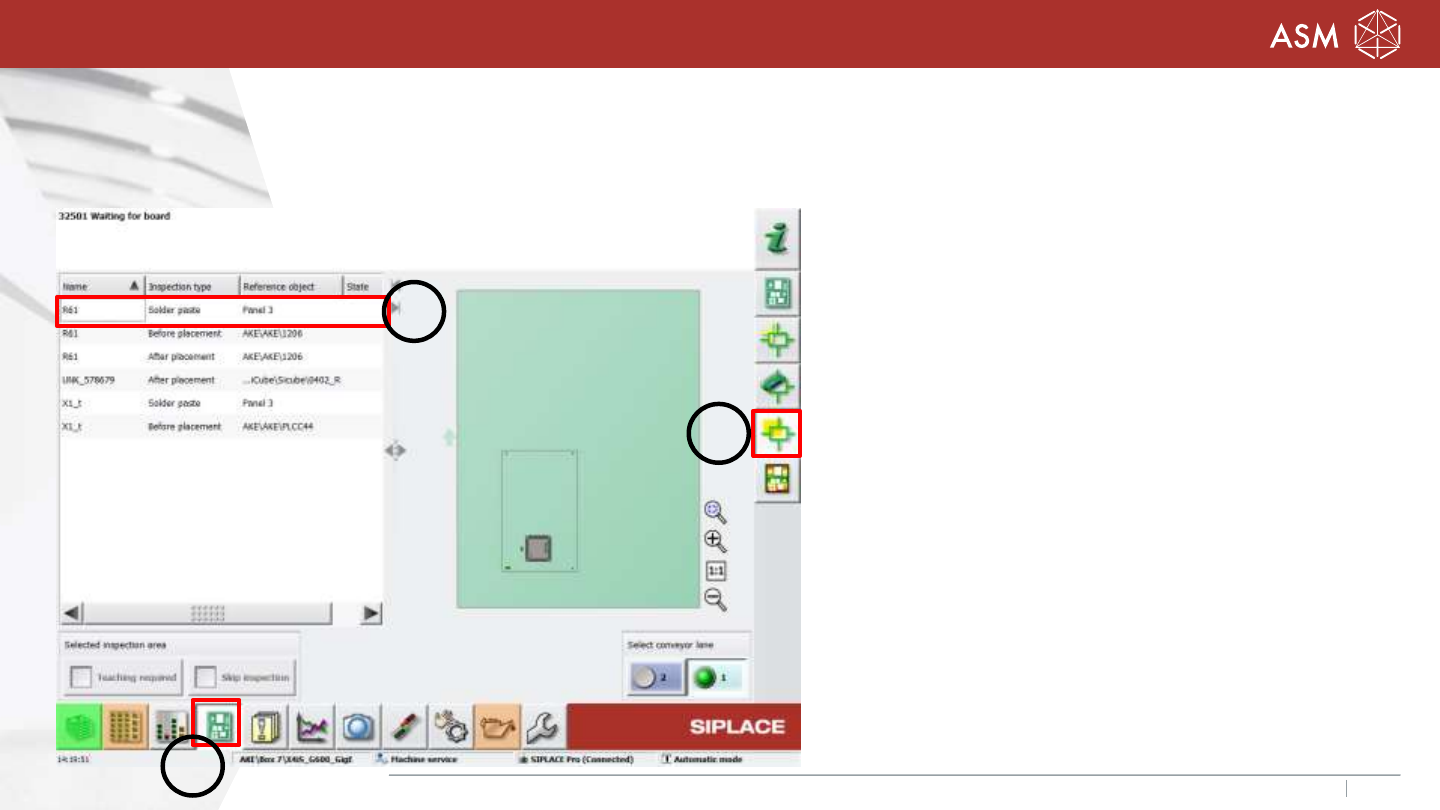

Station SW - On board PCB inspection

8/8/2017 ASM Assembly Systems Page 16

Teach the inspection area:

1. Choose „Display, check and set up PCB“

2. Choose „Display the inspection area and set

their options“

3. Select the component
