Station SW - On board PCB inspection 8/8/2017 ASM Assembly Systems Page 16 T each the inspection a rea: 1. Choose „Display , check and set up PCB“ 2. Choose „Display the inspection area and set their options “ 3. Select …
SIPLACE Pro - On board PCB inspection
8/8/2017 ASM Assembly Systems Page 15
Inspect SP – Solder paste
Inspect BPL – Before Placement
Inspect APL – After Placement
Placementlist
Inspection area will be displayed as a colored
rectangle.
Station SW - On board PCB inspection
8/8/2017 ASM Assembly Systems Page 16
Teach the inspection area:
1. Choose „Display, check and set up PCB“
2. Choose „Display the inspection area and set
their options“
3. Select the component
1
2
3
Station SW - On board PCB inspection
8/8/2017 ASM Assembly Systems Page 17

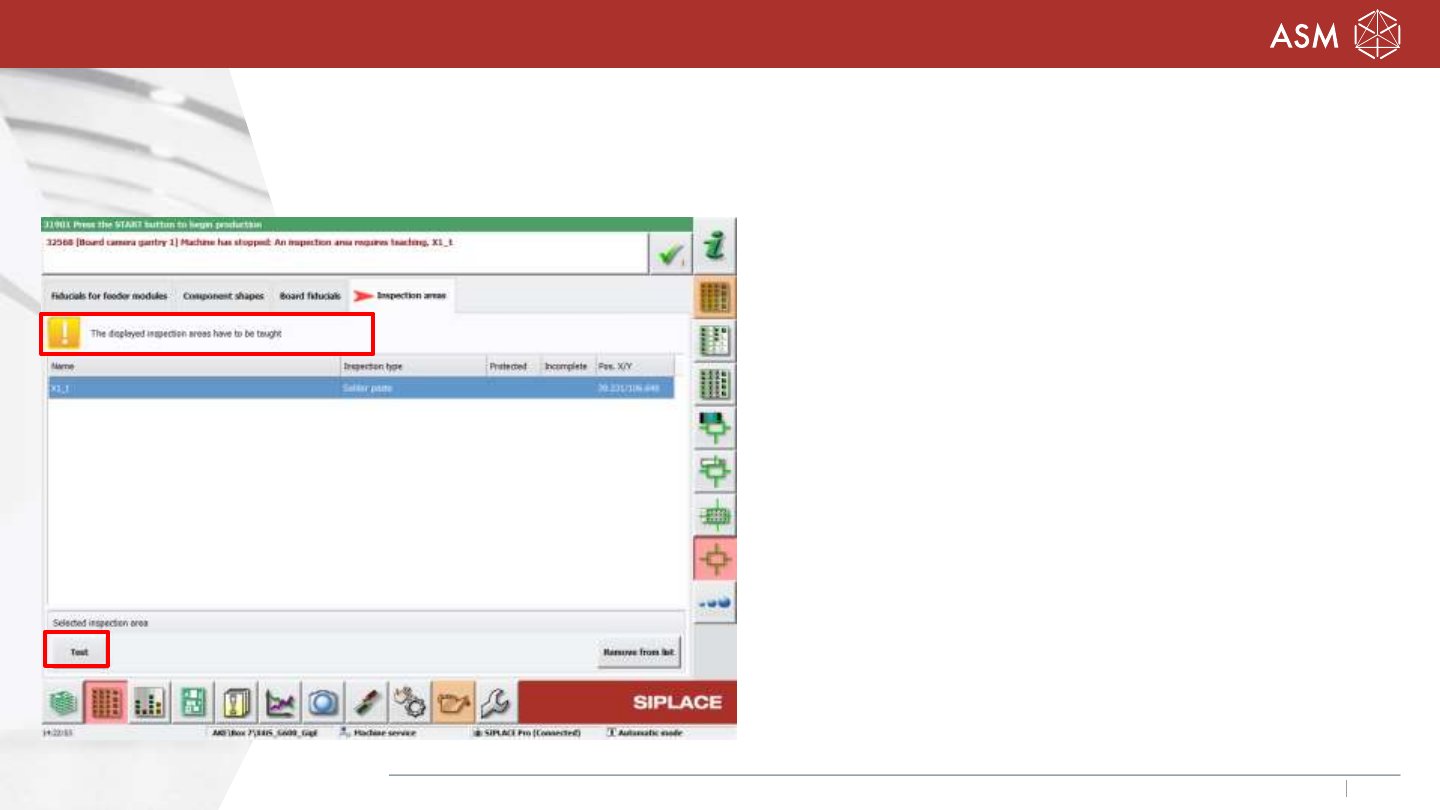

Dialog after Downlod the set up from SIPLACE Pro
Direct access to teach the inspection area
