Station SW - On board PCB inspection 8/8/2017 ASM Assembly Systems Page 18 Check Solder paste
Station SW - On board PCB inspection
8/8/2017 ASM Assembly Systems Page 17
Dialog after Downlod the set up from SIPLACE Pro
Direct access to teach the inspection area
Station SW - On board PCB inspection
8/8/2017 ASM Assembly Systems Page 18
Check Solder paste
Station SW - On board PCB inspection
8/8/2017 ASM Assembly Systems Page 19

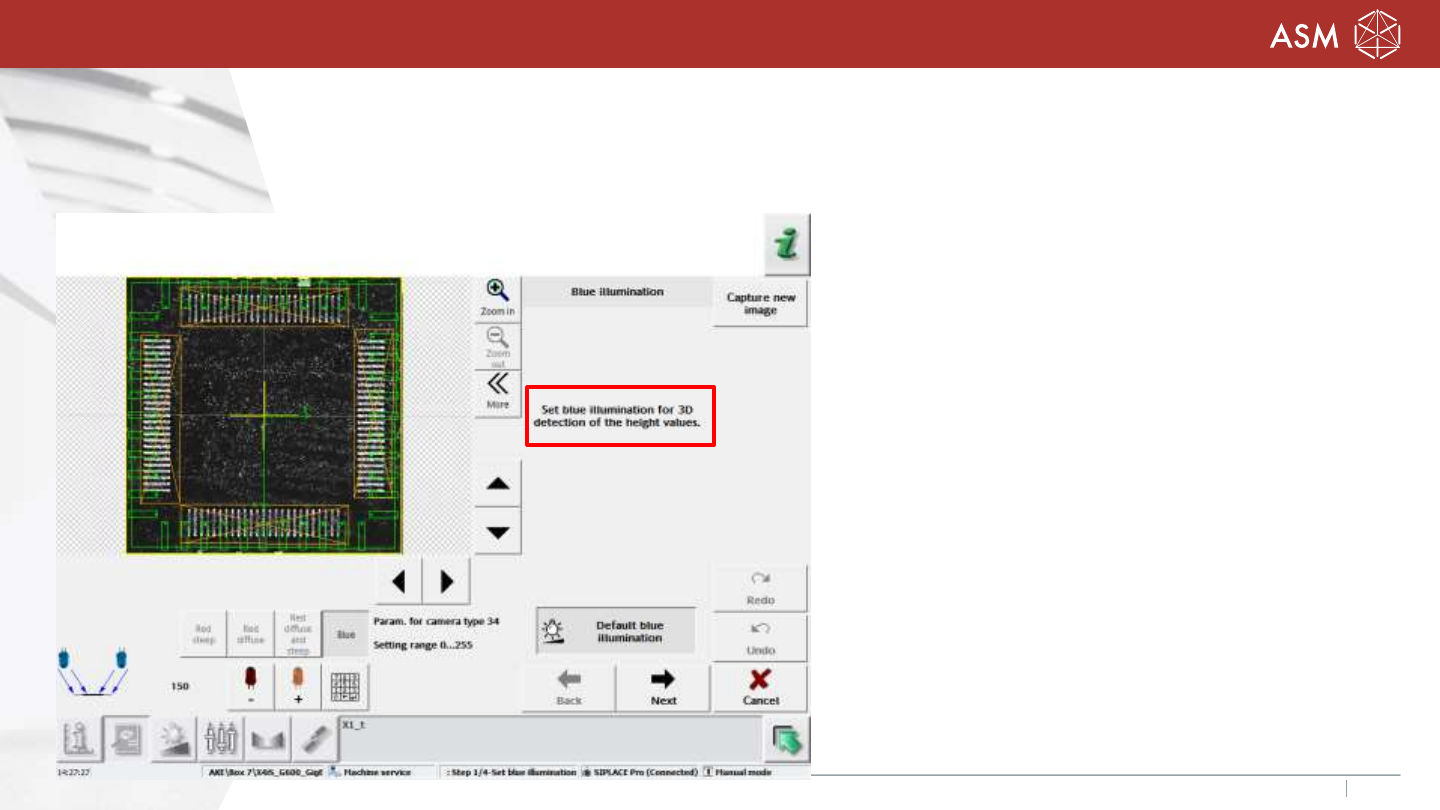

Blue Illumination necessary with the PCB
camera
Note: All machine with Gig E are prepared, SX
machine need the PCB camera version -02
