SIPLACE Pro Features

8/8/2017 ASM Assembly Systems Page 5

1. New Concave Nozzles:

Nozzle Placement head

1204 C&P20 A,C&P20 M

4204 C&P20 P, C&P20 M2

2204 CPP,CPPM

2. Long Board Option up to 1525 mm SX-machine

The licensed Long Board Option (LBO) is now supported for boards up to 1525 mm.

3. New feeder:

SIPLACE JTF-ML2 tray feeder supported the TX machine with two different cassette types. 14 levels

(supporting 7/7 cassettes) or 18 levels (supporting 9/9 cassettes). The cassette variants cannot be combined

with each other!

4. Support CPP M head on TX micron (only 20µm) and CA V2 machine

SIPLACE Pro 14.1

ASM Printer programming

8/8/2017 ASM Assembly Systems Page 6

ASM Printer Programming extends the existing SIPLACE Pro programming system by adding functionality for

editing print process data for DEK printing systems. The SIPLACE Pro programming system allows preparing,

optimizing and downloading placement and printing programs. ASM Printer Programming can be ordered

separately.

License:

DEK SIPLACE Pro – Machine Connection (Single- / Floating- license)

DEK ASM Traceability – Machine Connection (Single- / Floating- license)

 Workflow oriented Editor in ASM Studio for complete offline printer program creation.

 Central SIPLACE Pro database for print&place programs with shared objects for better process control and

data change management over all products.

 Import of existing .pr1 Printer Programs to an existing SIPLACE Pro board side.

 Program Download from SIPLACE Line Control to DEK and SIPLACE machines.

 Upload of program changes and additional data into the central database.

 Programming also for DEK standalone printers (no SIPLACE in line).

OIS for DEK Printer

08.08.2017 Page 7 ASM Assembly Systems

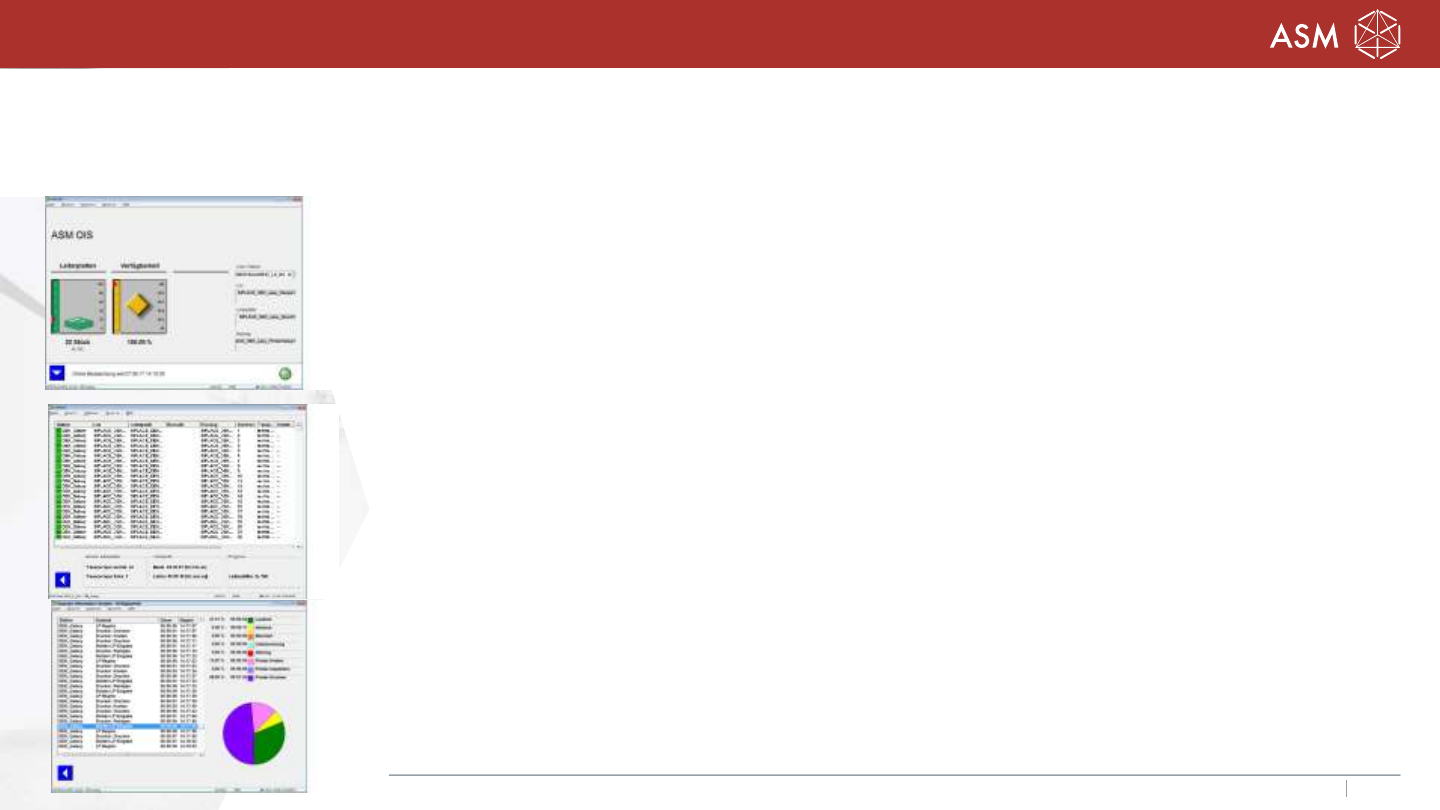

OIS Main View for Printer

 OIS client installation at DEK printer.

 If DEK printer is part of SIPLACE Pro line configuration,

it appears in OIS, can be selected and shows details.

PCB Overview for Printer

 Each board is listed, similar to SIPLACE machines.

 Info about recipe, setup, transport conveyor, build time, etc

Machine availability for Printer

 Machine states as pie chart and in percentage

 Detailed listing of events and duration

 Events: PCB start, printing, kneading, cleaning, waiting
