3 Introduction and Basic Concepts User Manual HS-50 3.3 User Interface - Views and Menus Software Version S R.501.xx 12 /99 Issue US 120 t I I t 3.3.2.3 "Options" Menu The "Opti ons" men u is o nly av…
User Manual HS-50 3 Introduction and Basic Concepts
Software Version SR.501.xx 12/99 Issue US 3.3 User Interface - Views and Menus
119
t IIt
Start SITEST F11 3
This automatically starts the SITEST test program for machine set-up and calibration.
The user interface, together with the procedure for the execution of the functions, is described in
the separate User’s Manual for the SITEST test program. 3
NOTE
The SITEST test program cannot be started from the "Operator" access level. 3
GEM F12 3
This menu item is used to call the GEM interface functions. 3
NOTE
The GEM interface functions cannot be called unless the GEM interface has been configured.
At the "Operator" access level, only the function "Send and receive messages" is available.
The GEM interface functions are not available in the current software version. 3
3
3
3 Introduction and Basic Concepts User Manual HS-50
3.3 User Interface - Views and Menus Software Version SR.501.xx 12/99 Issue US
120
t IIt
3.3.2.3 "Options" Menu
The "Options" menu is only available in the main view. This menu contains all the supplementary
functions. 3
Å Click the required menu item and then make the appropriate settings or selections in the cor-
responding windows or dialog boxes.
Machine options... 3
Depending on access level, you can obtain information about the station configuration ("Opera-
tor") or activate or deactivate the displayed machine options ("Line engineer", "Service"). 3
Å Click the menu item Machine options...

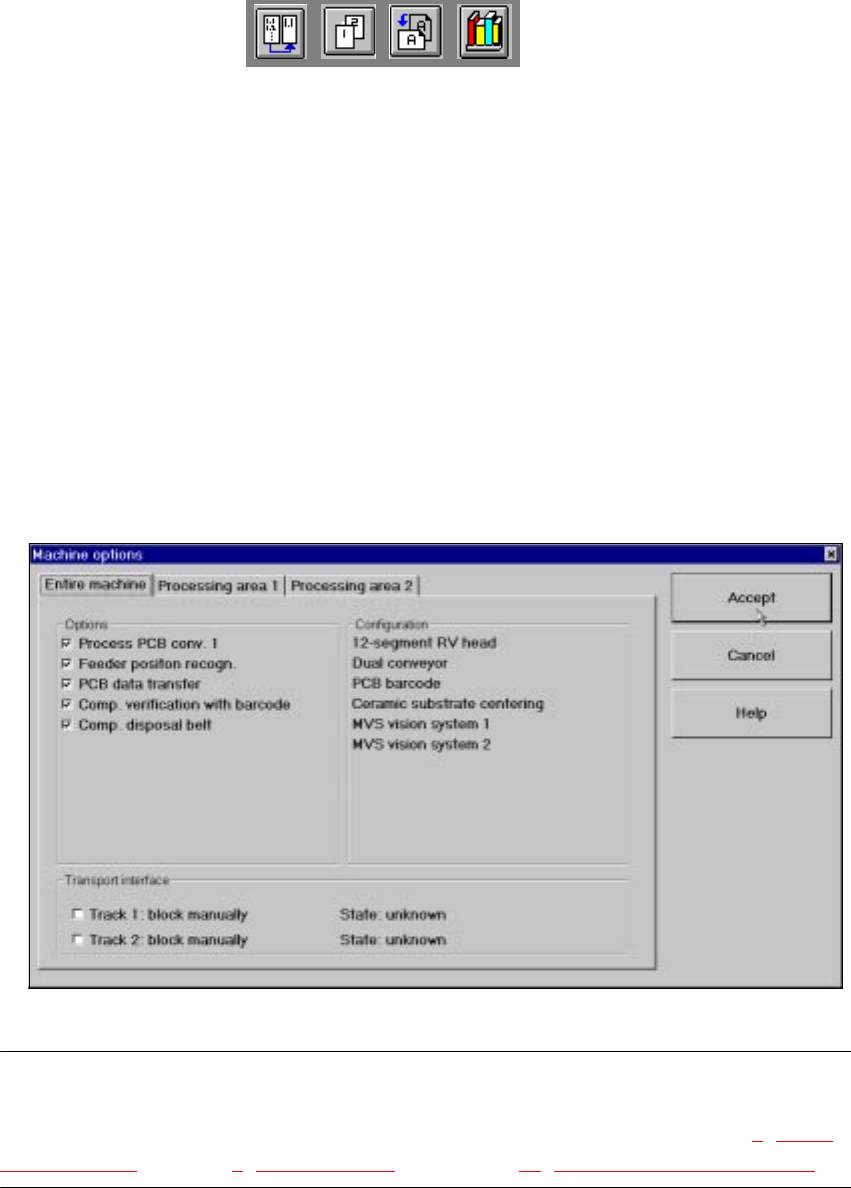

The following window is displayed.
3
NOTE
Only those machine options are displayed which are configured at the current station.
The different machine options and the associated functions are described in Chapter 4
"Place-
ment Functions", Chapter 6 "Vision functions" and chapter 12 "Station Extensions - Software“. 3
Å Click the checkboxes corresponding to the machine options which you want to activate or de-
activate.
User Manual HS-50 3 Introduction and Basic Concepts
Software Version SR.501.xx 12/99 Issue US 3.3 User Interface - Views and Menus
121
t IIt
NOTE
At "Operator" access level, it is only possible to activate and deactivate the conveyor interface op-
tions. 3
Å If you want to activate or deactivate the options for a processing area or view its configuration,
click the Processing area 1 or Processing area 2 tab to select the required area.
The display switches to the selected processing area (see example below for PA1).
3
Å Check/uncheck the boxes corresponding to the required machine options.
Å Click Accept to save the settings.
Access level... 3
It is possible to protect some user interface functions against unauthorized use by setting an ac-
cess level and allocating a password. Functions which are not accessible from a given access
level cannot be executed since the associated pushbuttons, radio buttons and menu commands
are either inactive or not displayed. 3
You can choose between the access levels "Operator", "Line engineer" and "Service". Passwords
can be allocated for the access levels "Line engineer" and "Service". 3
