User Manual HS-50 4 Placement Functions
Software Version SR.501.xx 12/99 Issue US 4.3 Feeders
149
t IIt
4.3.1.4 Refilling All Empty Tracks of a Location
Å Click on the button for the location that is to be confirmed as being "refilled", e.g. Location 1.
All tracks of this location are then considered refilled and the corresponding entries for the
empty tracks in this location are deleted from the list of empty tracks.
The button for the location is not active thereafter.
4.3.1.5 Refilling Empty Track When the "Component Verification With Barcode"
Option is Active
When the "Component verification with barcode" option is active, then empty tracks can normally
only be confirmed as having been "refilled" in the manner described in Section 4.3.1.5
.
The tracks containing components without
component barcodes are an exception. You can man-
ually "refill" here even if the "Component verification with barcode" option is active. 4
Å Select the entry in the table (see Fig. 4.3 - 2) for an empty track that contains components with-
out barcodes (see the note on page 148).
The "Selected track" button is active.
Å Click on the Selected track button when the feeder in this track has been refilled.
The "Selected track" button is not active thereafter.
4 Placement Functions User Manual HS-50
4.3 Feeders Software Version SR.501.xx 12/99 Issue US
150
t IIt
4.3.2 "Omit components" view
The “Omit components” function is used to deliberately leave out components on selected tracks
when processing the PCB.
This may be necessary, for example, in order to check component placement when introducing
the first PCB of a new cluster. When the PCB is produced, any components set to “Omit compo-
nents” will then be ignored on all the tracks on which they are set up. The incomplete PCBs will
then be transported to the output belt, where they must be removed manually.
When this function is activated, the specified components will be omitted from all subsequent
PCBs until you reset the function.
4
Å Click on the icon.
The “Omit components” view will appear (see Fig.
4.3 - 3
).
4

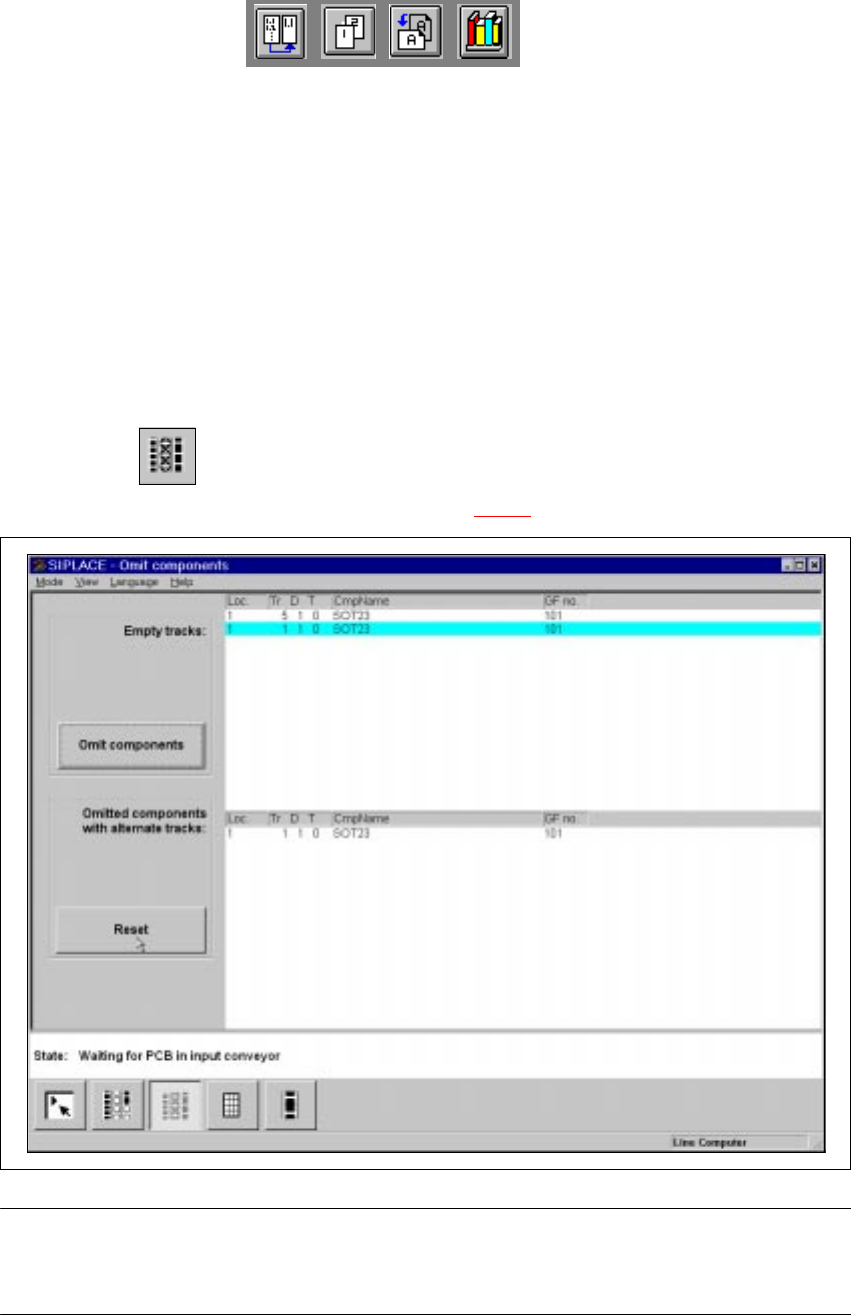

Fig. 4.3 - 3 “Omit components” view
PLEASE NOTE
The “Omit components” function cannot be used at the “Operator” access level.
4
User Manual HS-50 4 Placement Functions
Software Version SR.501.xx 12/99 Issue US 4.3 Feeders
151
t IIt
4.3.2.1 Meaning of the Entries in the Tables of the "Omit Components" View
– Loc.
Number of the location
– Tr D T
Number of the track and of the feeder division
The entry for "T" is irrelevant for model SIPLACE HS-50 machines.
(Only valid for automatic machines with wafflepack changers)
– CmpName
Name of the component
– GF no.
Number of the package form
4
4.3.2.2 Omit component
Å Select the component to be omitted from the “Empty tracks” table. The selected line will be
highlighted in light blue.
The “Omit components” button is active.

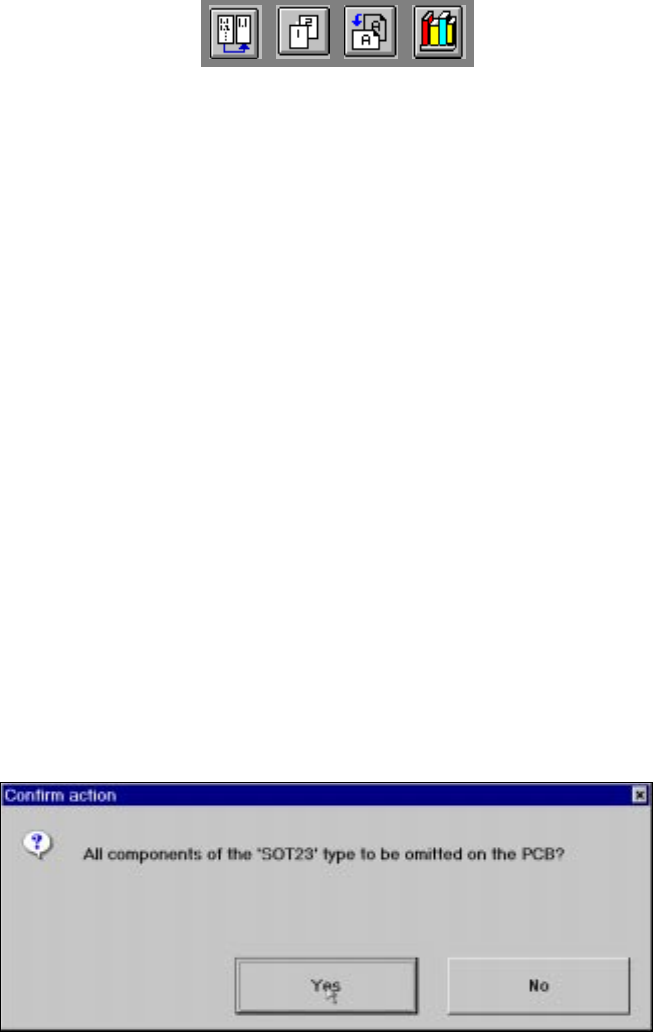

Å Click on the Omit components button. The following dialog box will appear.
4
Å Click on Yes to confirm the prompt.
The “Omitted components with alternate tracks” table lists all the tracks that have feeders set
up with components to be omitted from the placement process. When this function is activated,
the specified components will be omitted from all subsequent PCBs until you reset the function.
4
