4 Placement Functions User Manual HS-50
4.3 Feeders Software Version SR.501.xx 12/99 Issue US
152
t IIt
4.3.3 "Linear Feeder" View
When refilling the linear feeders with components, the operator must select the correct component
in the Setup view to refill an empty track (see Section 4.1.1
). The track with the corresponding lin-
ear feeder must be vibrated so that the new components move to the front after the tray has been
inserted. 4
4
Å Click on the icon.

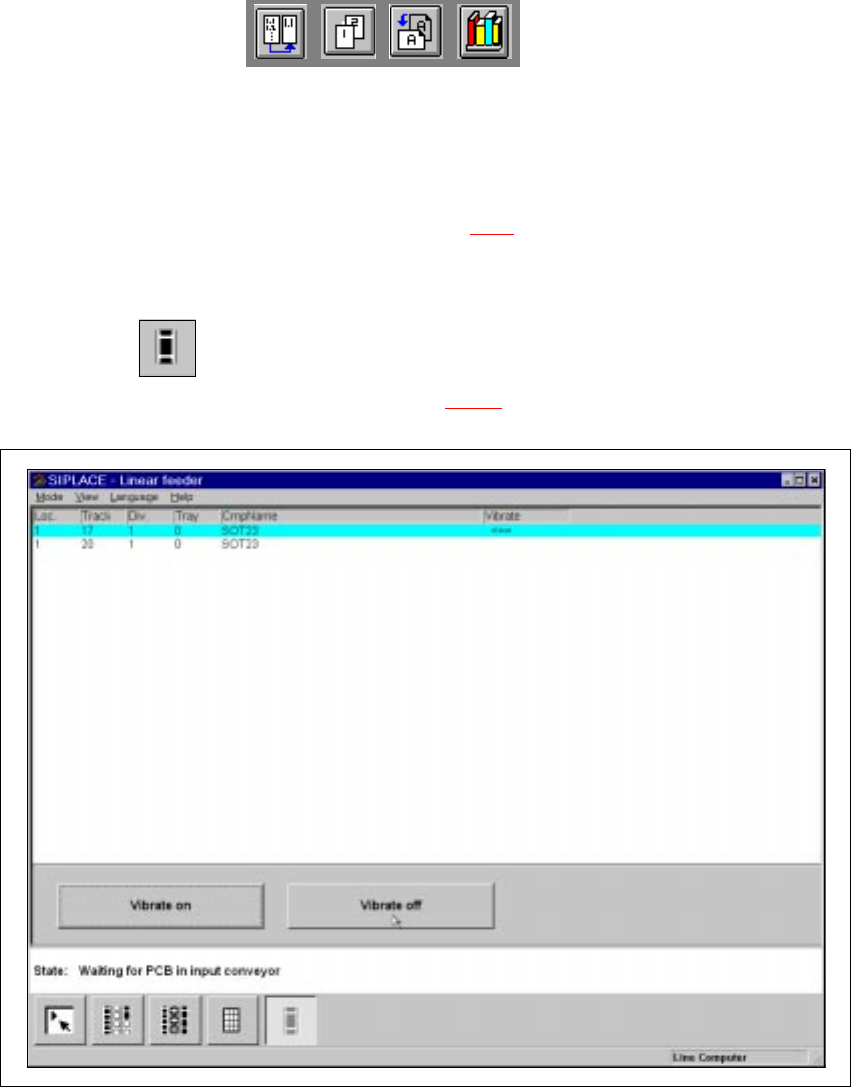

The "Linear feeder" view is displayed (see Fig. 4.3 - 4
).
4
Fig. 4.3 - 4 "Linear feeder" view
User Manual HS-50 4 Placement Functions
Software Version SR.501.xx 12/99 Issue US 4.3 Feeders
153
t IIt
4.3.3.1 Meaning of the Entries in the Table for the Linear Feeder
– Loc.
Number of the location
– Track
Number of the track
– Div.
Number of the feeder division
– Tray
This column is irrelevant when setting up the locations of a SIPLACE HS-50.
(Only valid for automatic machines with wafflepack changers)
– CmpName
Name of the component
– Vibrate
If the "<==" symbol is displayed in this column, then this means that the linear feeder on the
corresponding track is currently being vibrated.
4
4.3.3.2 Vibrate Track With Linear Feeder
Å Select the entry in the table for the track with the linear feeder that has been refilled and that
is to be vibrated now.
The selected line is highlighted in light blue in the table. The "Vibrate on" button is active.
Å Click on the Vibrate on button.
The components used to refill the track are vibrated to the front.
The "Vibrate off" button is active.
Å Click on the Vibrate off button when the vibrating is to be switched off.
Vibration stops.
NOTE
If the user interface is switched to a different view, then vibration will also stop. 4
4
