User Manual HS-50 5 Single Functions Software Version S R.501.xx 12/99 Issue US 5.2 Single functions, Gantry 157 t I I t 5 Fig. 5.2 - 1 "Revolver head functions" scr een Key to Fig. 5.2 - 1 (1) G antry fu nctio…
5 Single Functions User Manual HS-50
5.2 Single functions, Gantry Software Version SR.501.xx 12/99 Issue US
156
t IIt
5.2 Single functions, Gantry
NOTE
The travel functions of the X or Y-axis can only be carried out when the machine cover is closed.
To execute this function, press the start button.
As a rule, the gantries only travel slowly. 5
Å On the tool bar in the main view, click the symbol which represents the gantry you want to test
the functions of (or select the appropriate item from the "View" menu, e.g. "Gantry 1" for
Gantry 1).
NOTE
The single functions can be called for each of the 4 gantries. The single functions are identical
for all gantries. Each of the 4 symbols used to call the single functions is marked with the
number of the corresponding gantry:
Example for Gantry 1. 5
The user interface changes to display the "Revolver head functions" screen for the selected
gantry (see Fig. 5.2 - 1
). 5
5
5.2.1 "Revolver head functions" screen
The revolver head functions can be used to control all functions relating to the revolver head. 5
NOTE
The revolver head functions can be executed with the machine cover open. To do this the key-
operated switch must be turned to position I. 5
5
5
User Manual HS-50 5 Single Functions
Software Version SR.501.xx 12/99 Issue US 5.2 Single functions, Gantry
157
t IIt
5

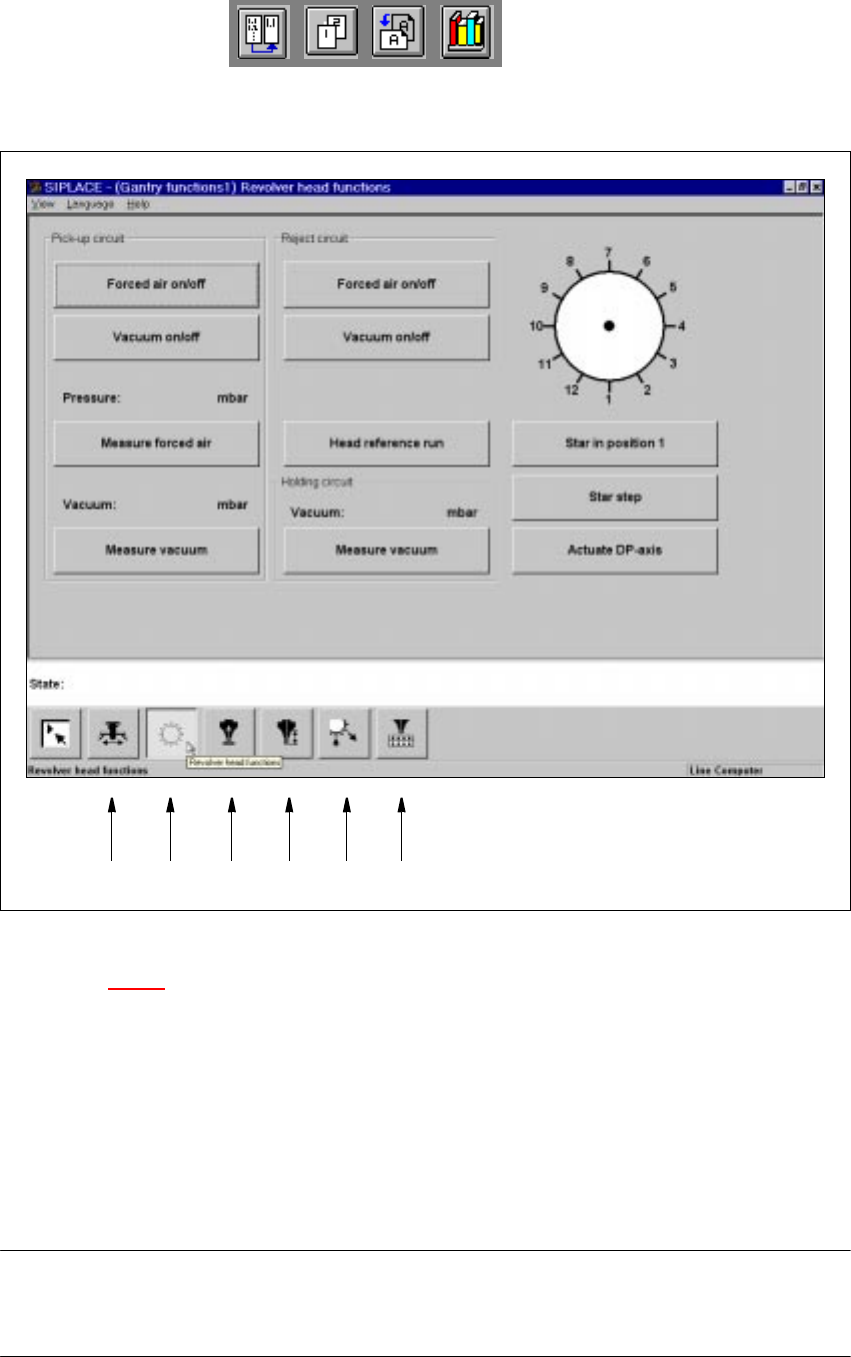

Fig. 5.2 - 1 "Revolver head functions" screen
Key to Fig. 5.2 - 1
(1) Gantry functions
(2) Revolver head functions
(3) Vacuum test, revolver head
(4) Nozzle offset, revolver head
(5) Nozzle configuration, revolver head
(6) Nozzle changer configuration, revolver head
NOTE
The current position of the revolver head segment is shown by the graphic above the "Star in
position 1" button. 5
12 345 6
5 Single Functions User Manual HS-50
5.2 Single functions, Gantry Software Version SR.501.xx 12/99 Issue US
158
t IIt
5.2.1.1 Functions
In the "Revolver head functions" screen, the functions described below are available to help you
test the revolver head. 5
– Vacuum test in the pick-up position
– Vacuum test in the reject position
– Vacuum test in the holding circuit
– Revolver head functions
The functions are triggered by clicking the appropriate button. 5
Pick-up circuit - Forced air on/off 5
When this function is activated, the forced air to the nozzle in the pick-up position is either
switched on or off.
Å In the "Pick-up circuit" area, click the Forced air on/off button.
This switches the forced air on or off.
Pick-up circuit - Vacuum on/off 5
When this function is activated, the vacuum at the nozzle in the pick-up position is either
switched on or off.
Å In the "Pick-up circuit" area, click the Vacuum on/off button.
This switches the vacuum on or off.
Pick-up circuit - Measure forced air 5
When this function is activated, forced air at the pick-up position is measured.
Å Switch on the forced air (using the "Forced air on/off" function in the "Pick-up circuit" area).
Å Click the Measure forced air button in the "Pick-up circuit" area.
The forced air is measured and the result displayed in [mbar] above the button.
NOTE
The value displayed after the measurement is taken does not correspond to the actual values at
the nozzle.
When calibrating the machine, you must use a manometer to establish the values (see Adjustment
instructions or the Service Manual). 5
Pick-up circuit - Measure vacuum 5
When this function is activated, vacuum at the pick-up position is measured.
Å Switch on the vacuum (using the "Vacuum on/off" function in the "Pick-up circuit" area).
Å Click the Measure Vacuum button in the "Pick-up circuit" area.
The vacuum is measured and the result displayed in [mbar] above the button.
