User Manual HS-50 5 Single Functions
Software Version SR.501.xx 12/99 Issue US 5.2 Single functions, Gantry
167
t IIt
All nozzles
If this radio button is activated, the selected function i.e."Return", "Pick up" or "Remove" is carried
out for all nozzles on the revolver head. 5
Å Activate the All nozzles radio button.
Å Click the button for the required function.
The function is carried out for all functions on the revolver head.
Return 5
When this function is activated, the nozzles are returned to the correct magazine of the nozzle
changer (or the nozzle on the selected segment is returned to its magazine).
Å Click the Return button.
If the "All nozzles" radio button is activated, the function is carried out immediately.
If the "One nozzle" radio button is activated, a dialog box is opened for you to enter the number
of the required segment (see page 166
).
Remove 5
When this function is activated, all nozzles or the nozzle on the specified segment are discarded
into the reject container.
Å Click the Remove button.
If the "All nozzles" radio button is activated, the function is carried out immediately.
If the "One nozzle" radio button is activated, a dialog box is opened for you to enter the number
of the required segment (see page 166
).
Pick up 5
When this function is activated, nozzles specified for current use are picked up from their respec-
tive magazines (or a nozzle is picked up for the specified segment).
Å Click the Pick up button.
If the "All nozzles" radio button is activated, the function is carried out immediately.
If the "One nozzle" radio button is activated, a dialog box is opened for you to enter the number
of the required segment (see page 166
).
Replace 5
This function is used to replace the nozzle on the specified segment with one of the same type.
Å Click the Replace button.
A dialog box opens to allow you to enter the segment number.
(The rest of the procedure is described on page 166
).
5 Single Functions User Manual HS-50
5.2 Single functions, Gantry Software Version SR.501.xx 12/99 Issue US
168
t IIt
RV head indexing 5
This function is used to move the revolver head.
Å Click the RV head indexing button.
The revolver head is moved on one segment.
The current positions of the segments are shown in the graphic.
Confirm 5
This function allows you to confirm that a nozzle has been changed (without nozzle changer).
To change a nozzle without a nozzle changer you must perform the operation by hand. You can
only change the nozzle on one segment at a time because the segment must be in the
changeover position. By turning the head in a clockwise fashion you can bring each segment in
turn to the changeover position.
5
Å In the table, find the segment for which the nozzle is to be changed.
Å Click the RV head indexing button as often as required to bring the required segment round
until it is displayed in the changeover position (marked with an arrow).
The table entry for this segment is now highlighted in light blue (see Fig. 5.2 - 5
).
Å Remove the nozzle by hand and replace it with a nozzle of the type shown in the "Preset" co-
lumn.
Å Click the Confirm button.
The change is confirmed. The entries in the columns "Actual" and "Preset" agree. The new no-
zzle configuration is saved to the machine data.
User Manual HS-50 5 Single Functions
Software Version SR.501.xx 12/99 Issue US 5.2 Single functions, Gantry
169
t IIt

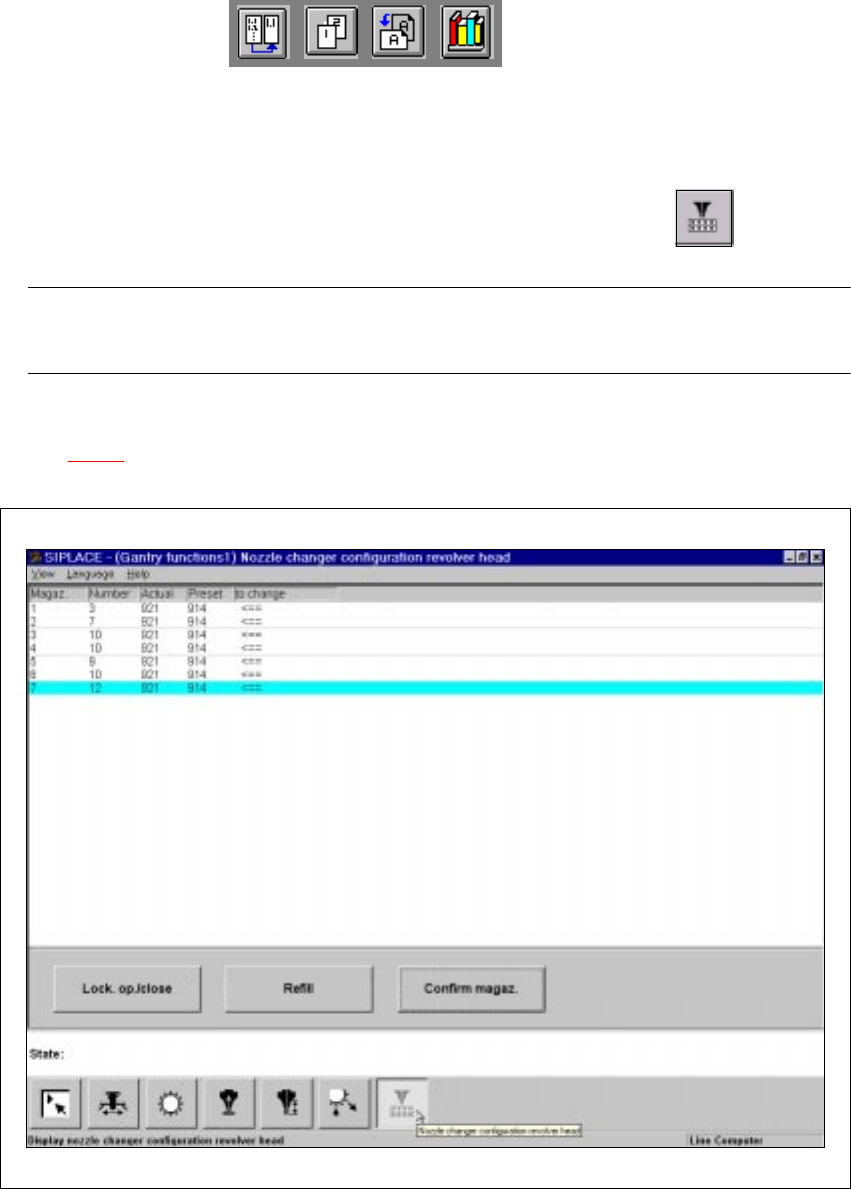

5.2.6 "Nozzle changer configuration revolver head" screen
5
Å In the current screen for the single function for Gantry x, click the symbol .
NOTE
The nozzle changer must be installed and configured in the machine options. 5
The user interface is switched to the "Nozzle changer configuration revolver head" screen (see
Fig. 5.2 - 6
). 5
5
Fig. 5.2 - 6 "Nozzle changer configuration revolver head" screen
