User Manual HS-50 6 Vision functions Software Vers ion SR.501.xx 12/99 Issue US 6.5 Teach Fiducial 219 t I I t 6.5.3.5 Save Fiducial Option With this option y ou ca n save fi ducials togeth er with th eir modi fied param…
6 Vision functions User Manual HS-50
6.5 Teach Fiducial Software Version SR.501.xx 12/99 Issue US
218
t IIt

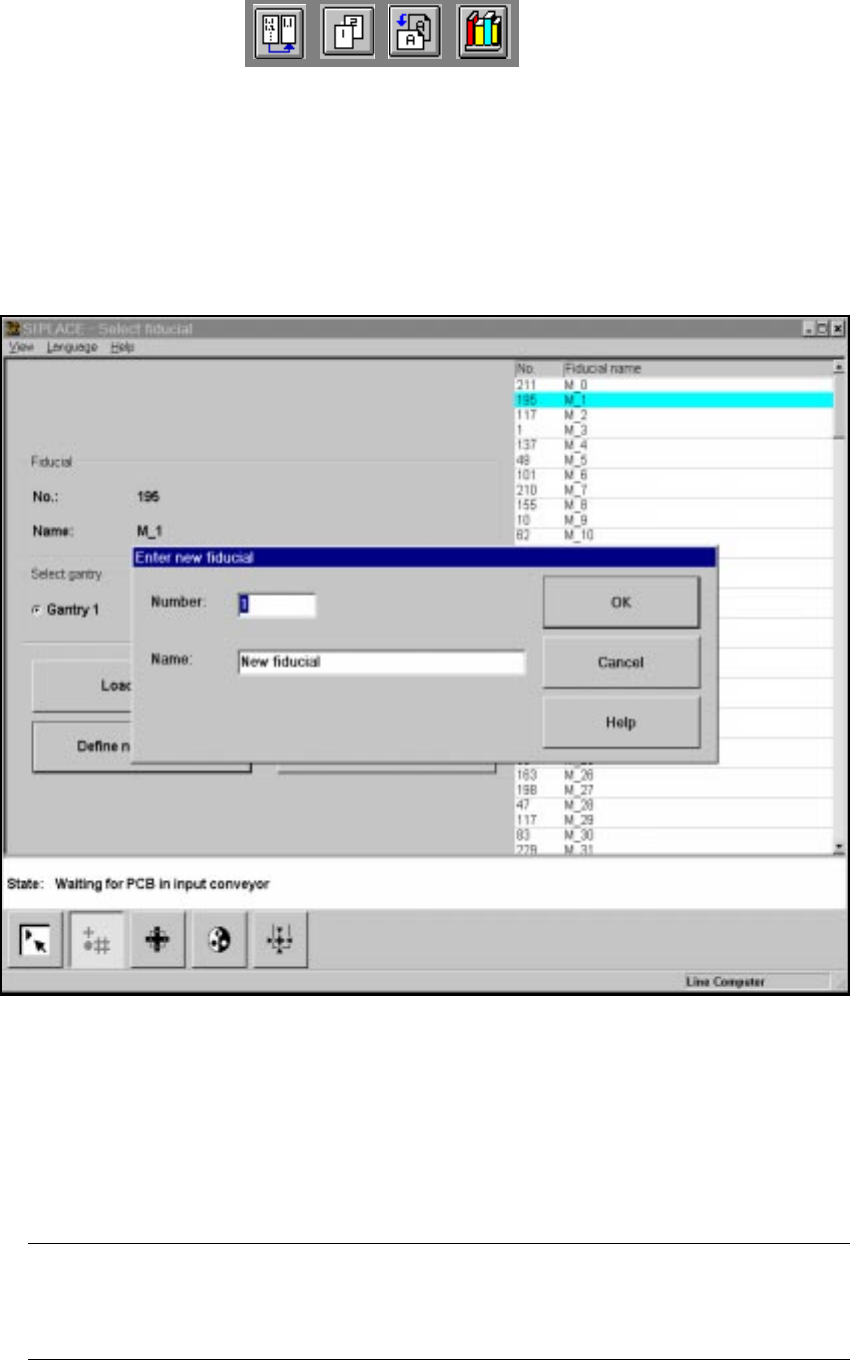

6.5.3.4 Define New Fiducial Option
With this option you can generate a new fiducial. 6
– Click on the Define new fiducial button.
The input box for the fiducial number and the fiducial name will appear on the screen.
6
Fig. 6.5 - 11 Select fiducial menu, Define new fiducial option, input box
– Input a fiducial number and the fiducial name.
– Conclude your input with OK or discard your input with Cancel.
– The new fiducial can also be taught with standard values and further processed.
– When finished save the fiducial by clicking on the Save fiducial button.
NOTE 6
If a fiducial number already exists after clicking on OK you will be asked if you want to over-
write the existing fiducial. 6
User Manual HS-50 6 Vision functions
Software Version SR.501.xx 12/99 Issue US 6.5 Teach Fiducial
219
t IIt

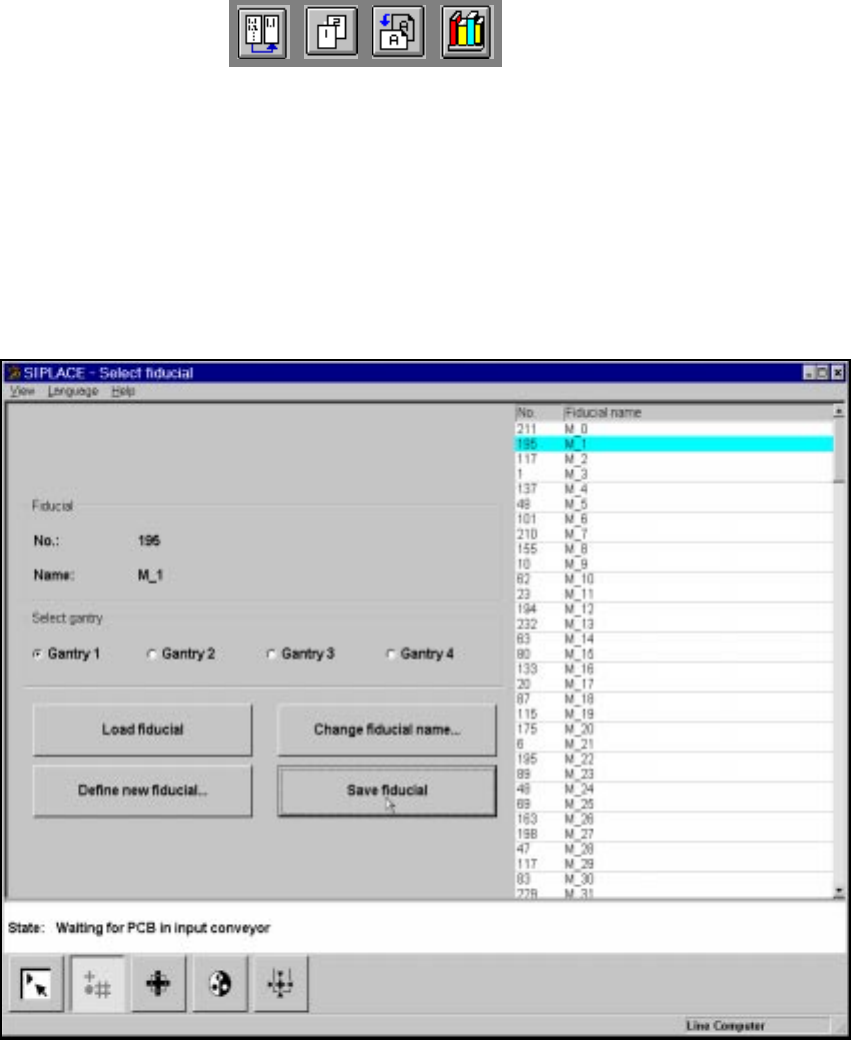

6.5.3.5 Save Fiducial Option
With this option you can save fiducials together with their modified parameters. The button will
only become activated if you have 6
– changed the fiducial name or
– generated a new fiducial.
6
Fig. 6.5 - 12 Select fiducial menu, Save fiducial option
6 Vision functions User Manual HS-50
6.5 Teach Fiducial Software Version SR.501.xx 12/99 Issue US
220
t IIt

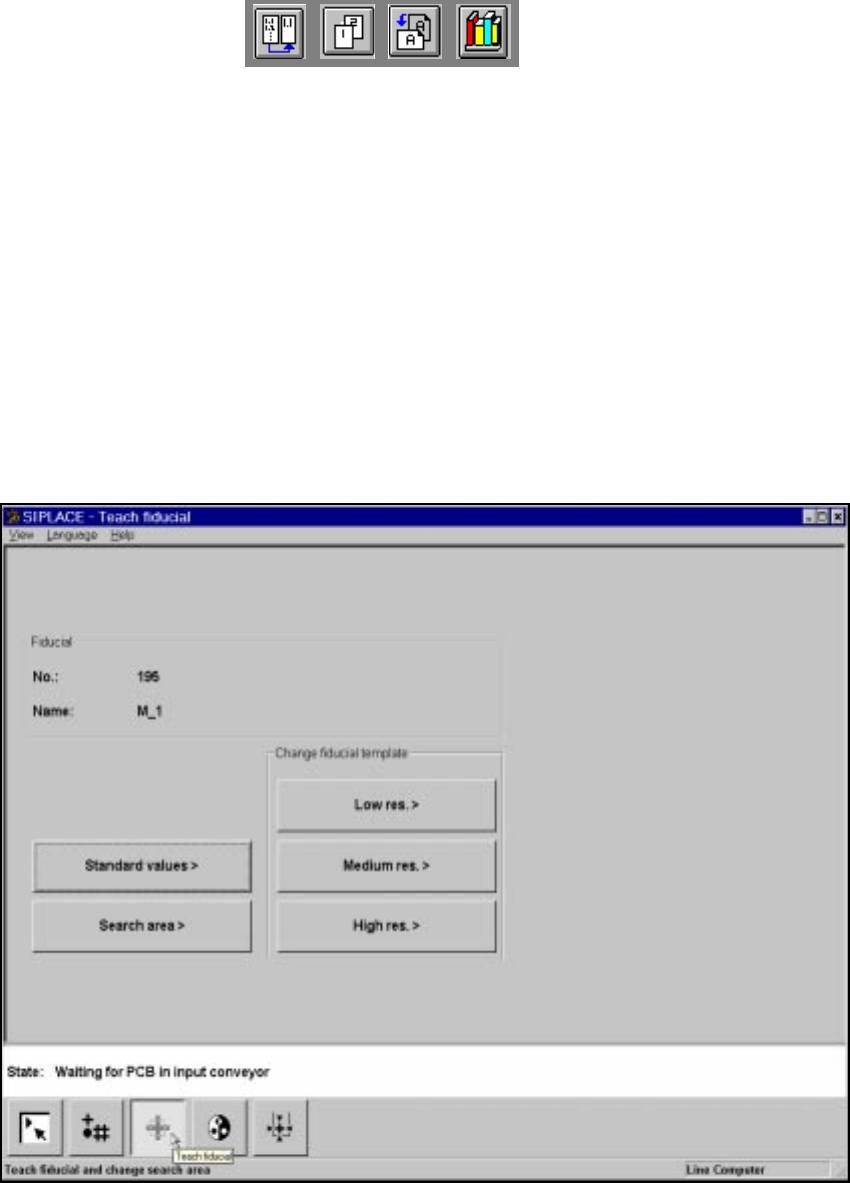

6.5.4 Teach Fiducial Menu
As the diagram shows, the Teach fiducial menu offers the following options: 6
– Standard values
– Search area
– Change search area with
– low resolution,
– middle resolution and
– high resolution
6
Fig. 6.5 - 13 Teach fiducial menu, options
