6.6.3.3 Save GF data Option
Using this option you can save package forms together with their changed parameters. The button
will only be active after you have modified the package form data. 6
6

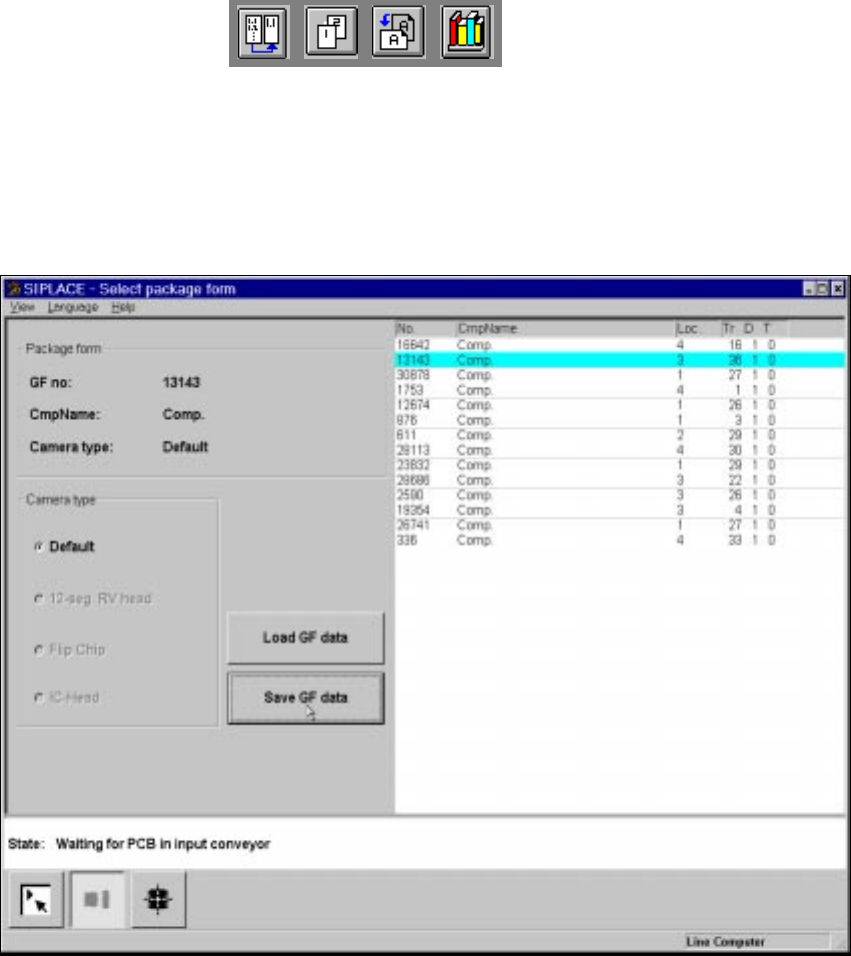

Fig. 6.6 - 13 Select package form menu, Save GF data option
6 Vision functions User Manual HS-50
6.6 Test Component Software Version SR.501.xx 12/99 Issue US
256
t IIt
6.6.4 Test Component Menu

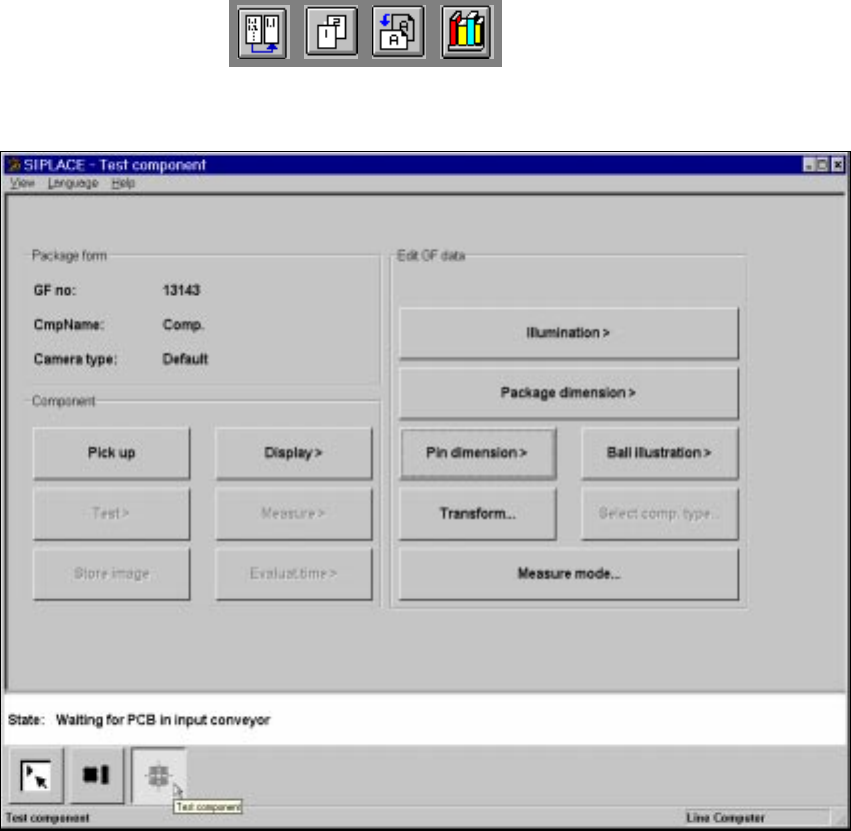

If you click on the Test component icon the corresponding menu will drop down. As the diagram
shows, the following options, organized by group, are available to you: 6
Component Edit GF data 6
–Pick up – Illumination
– Display – Package dimension
–Test – Pin dimension
– Measure – Ball illustration
– Store image – Transform
– Evaluat. time – Select component type (80 F machines only)
– Measure mode 6
NOTE 6
Buttons are active when the text on the button is black (rather than gray). This means that you
can launch the associated function by clicking on the button with the mouse.
If you have not yet loaded a package form all options will be inactive. 6
Å From the Select package form menu load a package form (see Section 6.6.3 on page 251).
The loaded package form will be displayed in the Package form display field with package
form number, package form name, and camera type. All options are accessible with the excep-
tion of Test, Measure, Store image and Evaluat. time. The Component type option is re-
served for the 80F machines only.
