User Manual HS-50 6 Vision functions Software Version S R.501.xx 12/99 Issue US 6.6 Test Comp onent 259 t I I t 6.6.4.2 Display Component Opti on NOTE 6 Before y ou can ac tiva te this op tion y ou must h ave al ready l …
6 Vision functions User Manual HS-50
6.6 Test Component Software Version SR.501.xx 12/99 Issue US
258
t IIt
6.6.4.1 Pick Up Component Option
NOTE 6
Before you can activate this option you must have already loaded a package form number. If this
is not the case, the button will remain inactive.
6

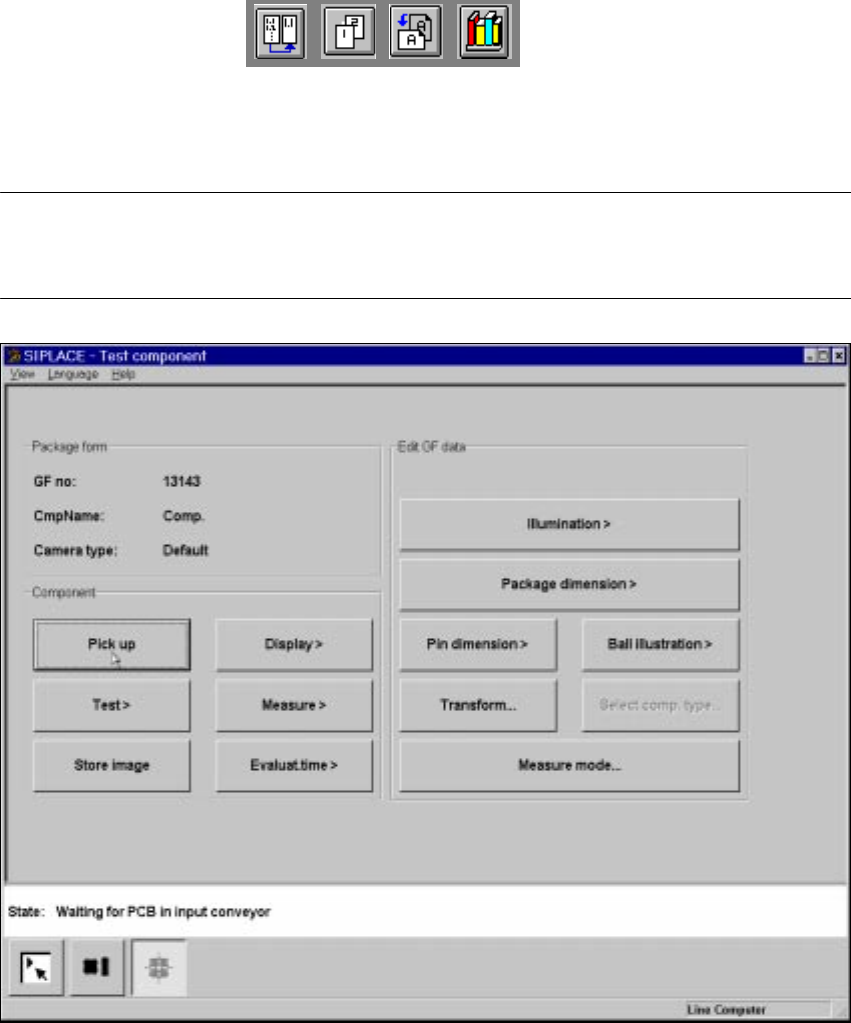

Fig. 6.6 - 15 Test component menu, Pick up component option
When this option is activated the following actions are started: 6
– A component is picked up from a specific track.
– If there already is a component beneath the component camera, it will be discarded.
– The options Test and Measure can be clicked on.
User Manual HS-50 6 Vision functions
Software Version SR.501.xx 12/99 Issue US 6.6 Test Component
259
t IIt
6.6.4.2 Display Component Option
NOTE 6
Before you can activate this option you must have already loaded a package form number.
6
Fig. 6.6 - 16 Test component menu, Display component option
When this option is activated the following actions are started: 6
– The teach command will be given.
– The vision system generates the outside contours of the component from the synthetic descrip-
tion.
– The video image with the real camera image and the model overlayed on it will be displayed
on the screen.
– The header with commentaries is displayed.
The operator can now check the synthetic description visually against the real component. 6
6 Vision functions User Manual HS-50
6.6 Test Component Software Version SR.501.xx 12/99 Issue US
260
t IIt
6
Fig. 6.6 - 17 Test component menu, Display component video image
Å Use Esc to end the function. The video image disappears and the Test component menu is
displayed once more.
GF No. = 5Display component
