00191369-02 - 第365页
User Manual HS-50 10 Component handling Software V e rsion SR.501.xx 1 2/99 Issue US 10.2 T echnical data for the feeder modules 365 t I I t 10.2.2 3 x 8 mm S module 10 Fig. 10.2 - 2 8 mm S II modu le Item no. 0014109 8-…
10 Component handling User Manual HS-50
10.2 Technical data for the feeder modules Software Version SR.501.xx 12/99 Issue US
364
t IIt
10.2 Technical data for the feeder modules
The following pages contain diagrams of all the feeder modules, technical data and the module
setting options on the placement system. 10
10.2.1 8 mm S II module
10

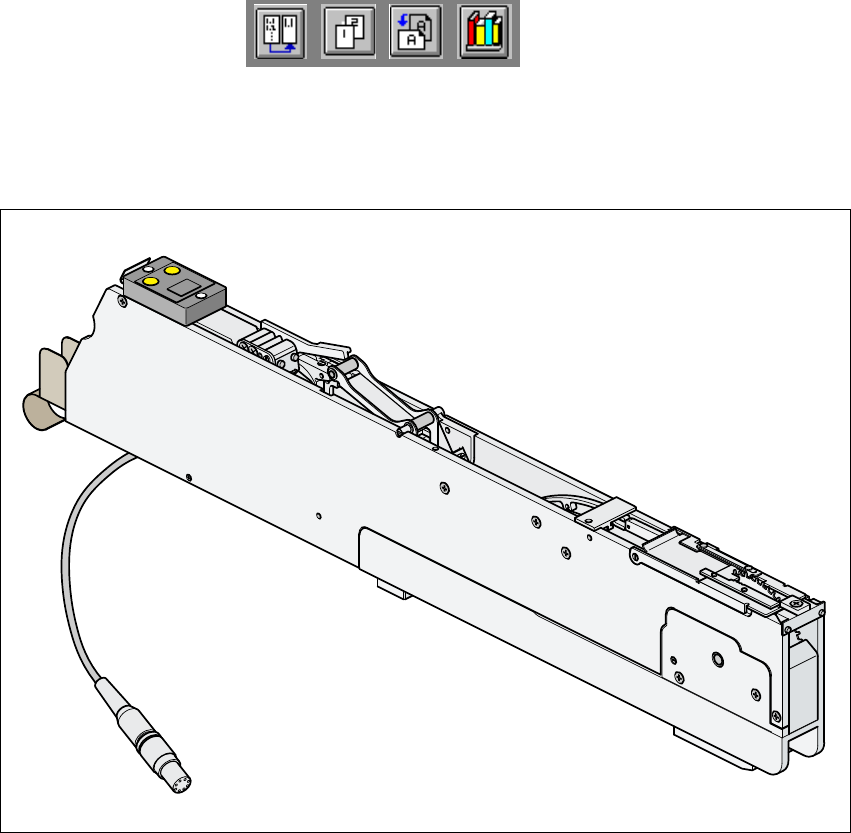

Fig. 10.2 - 1 8 mm S II module
Item no. 00141096-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC 10
User Manual HS-50 10 Component handling
Software Version SR.501.xx 12/99 Issue US 10.2 Technical data for the feeder modules
365
t IIt
10.2.2 3 x 8 mm S module
10
Fig. 10.2 - 2 8 mm S II module
Item no. 00141098-xx
Width 30 mm
Tracks per module 3
Maximum number of modules 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC 10
10 Component handling User Manual HS-50
10.2 Technical data for the feeder modules Software Version SR.501.xx 12/99 Issue US
366
t IIt
10.2.3 12/16 mm S module
10
Fig. 10.2 - 3 12/16 mm S module
Item no. 00141092-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms for a feeding interval of 8 mm
Main power supply 30 VDC 10
