User Manual HS-50 1 Introduction Software Version S R.501.xx 12/99 Issue US 1.12 Overview of the modules - gantries 39 t I I t 1.12 O vervi ew of the mod ules - g a ntri es 1.12.1 Position of the gant ries 1 Fig. 1.12 - …
1 Introduction User Manual HS-50
1.11 Overview of the modules - controls Software Version SR.501.xx 12/99 Issue US
38
t IIt
1.11.4 Technical data - component barcode reader
Connected to Station computer
Data entry Via barcode scanner or keyboard
Number of characters Up to 40
Not admissible
Barcodes starting with a 1, 2, 3, or 4
of less than 5 characters long
Number of barcodes Up to 6 per component
Filter for masking out data Up to 1 per barcode
Preset code types
Code 39 (standard or ASCII)
Code 2 of 5 interleaved and normal,
Code 128, UPC/EAN/JAN codes
(others available upon request)
User Manual HS-50 1 Introduction
Software Version SR.501.xx 12/99 Issue US 1.12 Overview of the modules - gantries
39
t IIt
1.12 Overview of the modules - gantries

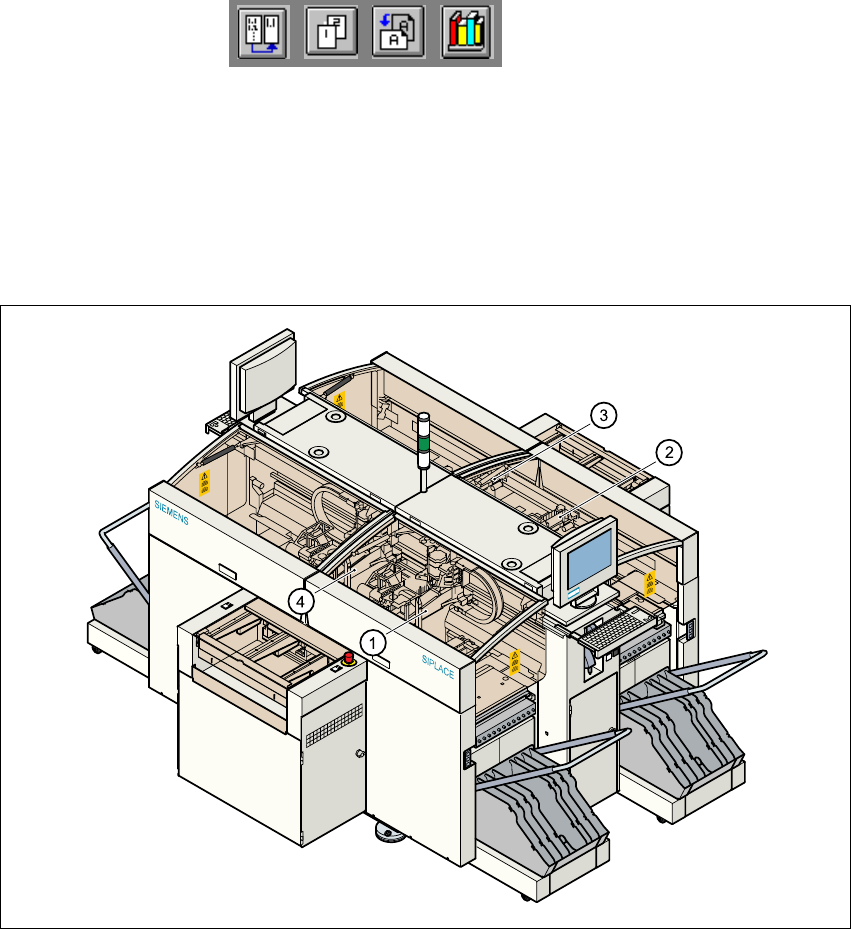

1.12.1 Position of the gantries
1
Fig. 1.12 - 1 Position of the gantries
(1)Gantry 1 (sector 1)
(2)Gantry 2 (sector 2)
(3)Gantry 3 (sector 3)
(4)Gantry 4 (sector 4)
1
The gantry system consists of two functional groups 1
–X-axis
–Y-axis
1
1 Introduction User Manual HS-50
1.12 Overview of the modules - gantries Software Version SR.501.xx 12/99 Issue US
40
t IIt

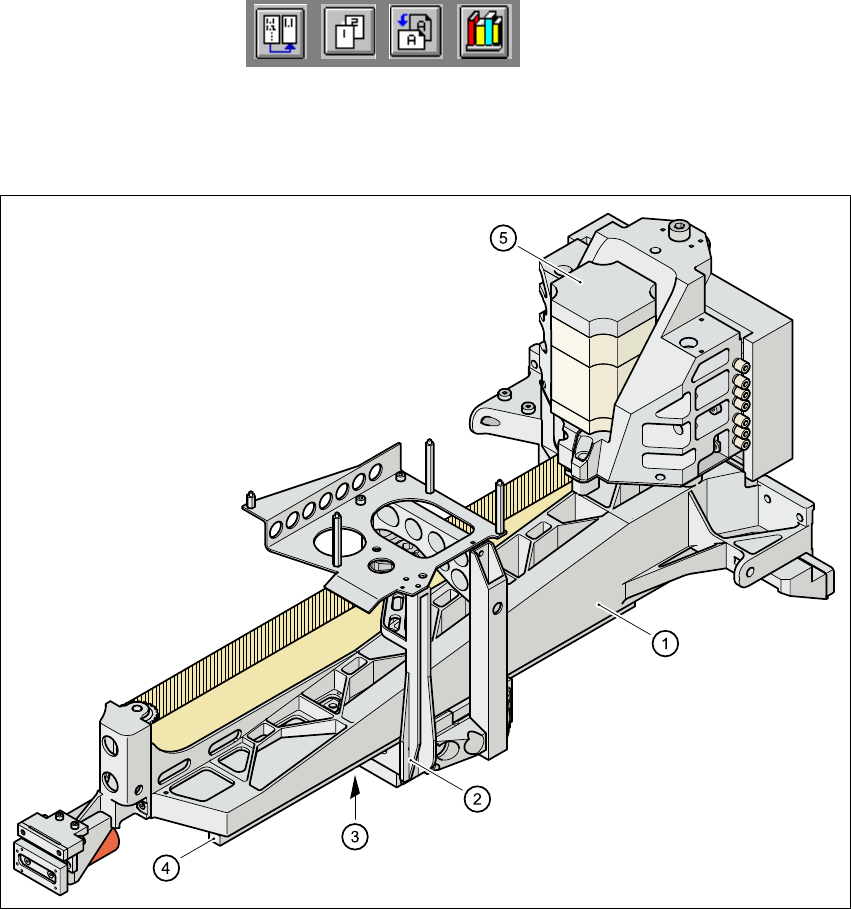

1.12.2 Structure of the X-axis
1
Fig. 1.12 - 2 Structure of the X-axis
The X-axis essentially consists of the following main modules: 1
– gantry arm (1)
– head mount (2)
– linear measuring system (3)
– X-axis guide system (4)
– X-axis three-phase AC servomotor (5)
The head mount holds the following components 1
– sub-gantry camera (camera for the PCB vision system)
– head board
– measuring head for the X-axis measuring system
– revolver placement head
