Page 1 of 3 Conexis ® Series - CX -3040 Conformal coatin g that combines flexibility and mod ularity The Conexis CX - 304 0 conf ormal coating syste m provides both speed and flexibility and is ideal for mid - volume, hi…
Page 1 of 3
Conexis
®
Series - CX-3040
Conformal coating that combines flexibility and modularity
The Conexis CX-3040 conformal coating system
provides both speed and flexibility and is ideal for
mid-volume, high-accuracy applications. Linear
encoders enable the system to reach a maximum
speed of 700 mm per second and an overall
accuracy of 50 microns. Additional features and
options can be added to the coater as production
needs change.
The Conexis system’s software provides an easy-to-
use interface with offline programming capability.
The software’s dispense library can store and
monitor information about different materials,
dispense valves, and other necessary criteria for
ready access. Also, the software can monitor all air
pressures (main air pressure, tank pressure, and
atomizing air pressure) to provide expanded process
control.
The Conexis system can be configured with many
different dispense and spray valves, including the
high-speed airless Curtain valves. Up to three valves
can be mounted on the independent Z-axis, with
two capable of tilting (4-axis) and rotating (360
degrees).
Features and Benefits
Modular platform design allows options to be
added as application needs change
Up to three valves can be mounted to support a
wide range of applications
User software with offline programming capability
offers an intuitive interface and provides powerful
process controls
Welded frame and linear encoders increase speed
and accuracy
Automate your conformal coating process by
leveraging our world-leading expertise in fluid
dynamics, and award-winning global support
network

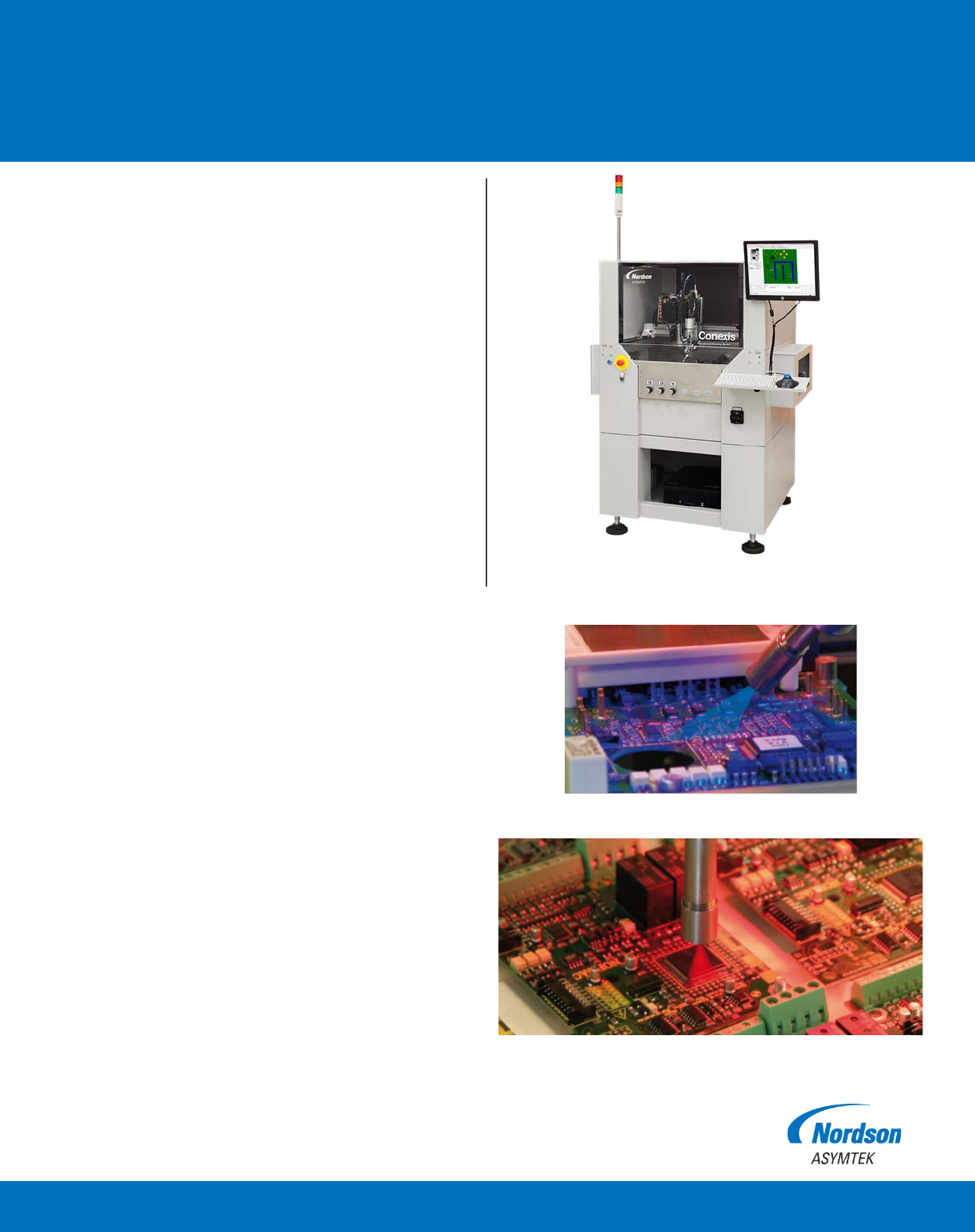

Conexis system configured for in-line
Spray valve in vertical position
Spray valve at 45 degree angle
Page 2 of 3
Specifications:
Conexis
®
CX-3040 Series
Dimensions (LxWxH)
Batch: 1330 x 970 x 1470 mm
(+500 mm for signal light)
In-line: 1330 x 1430 x 1470 mm
(+500 mm for signal light)
Motion System
Type: Closed-loop servo drive
with linear encoder
XY velocity: 700 mm/s
XY acceleration: 1 G (1000 mm/s²)
Z-axis velocity: 250 mm/s
XYZ encoder resolution: 1 µm
Positional accuracy: 50 µm
Rotation (optional feature): 360 degrees (only with Z-axis with
motorized rotation and tilt [DR-2010])
Work Area (based on one valve on Z-axis)
Batch: 525 x 420 mm
Z-movement 105 mm
In-line chain conveyor: 525 x 410 mm
Z-movement 105 mm
Board Clearance
Batch: 100 mm (top)
40 mm (bottom)
In-line chain conveyor: 100 mm (top)
100 mm (bottom)
Conveyor Systems
(without option that can cause restrictions)
Conveyor width (chain): 32 mm / 410 mm (manual or
automatic adjustable)
Interface
Controller: Integrated microprocessor controllers
User interface: PC controlled running on Windows
®
with user interface software
Facility Requirements
Power requirement (peak): 200 VAC or 220/240 VAC, 50 - 60 Hz,
2500 Watt
Note: Optional 110 VAC available.
Air requirement: 6 bar, 85 PSI, 100 L/min
Extraction: 250 m³/h
Noise: Noise emission during operation
< 70 dB(A)
Weight: 510 kg without tanks
Standard Features
Batch conformal coating machine with PC, LCD monitor, key board,
and trackball
Batch tooling plate with static PCB holder
Exhaust connection system with flow detection
Manual teaching camera (CCD) for alignment
Offline programming capability
One basic Z-axis and two open positions for an optional second or
third Z-axis
One solvent/purge station
Software-controlled system, material, and atomizing air pressures
Stainless steel cover
Optional Features and Configurations
Additional material and/or spray regulators with pressure control
sensors (max. six regulators per machine)
Automatic chain conveyor with or without automatic width
adjustment
Automatic needle calibration and/or cleaning unit (vacuum)
ESI Auto fiducial alignment software
Flow monitoring system
Material tanks and reservoirs with low level (empty) detection
sensors
Motorized Z-axis with motorized rotation (360 degree) and
pneumatic tilt (4
th
axis with tilt)
Signal light tower
SMEMA cable (2 meters)
Software interface for bar code recognition system for 1D or 2D
Static universal product holder in combination with four adjustable
universal clamping blocks

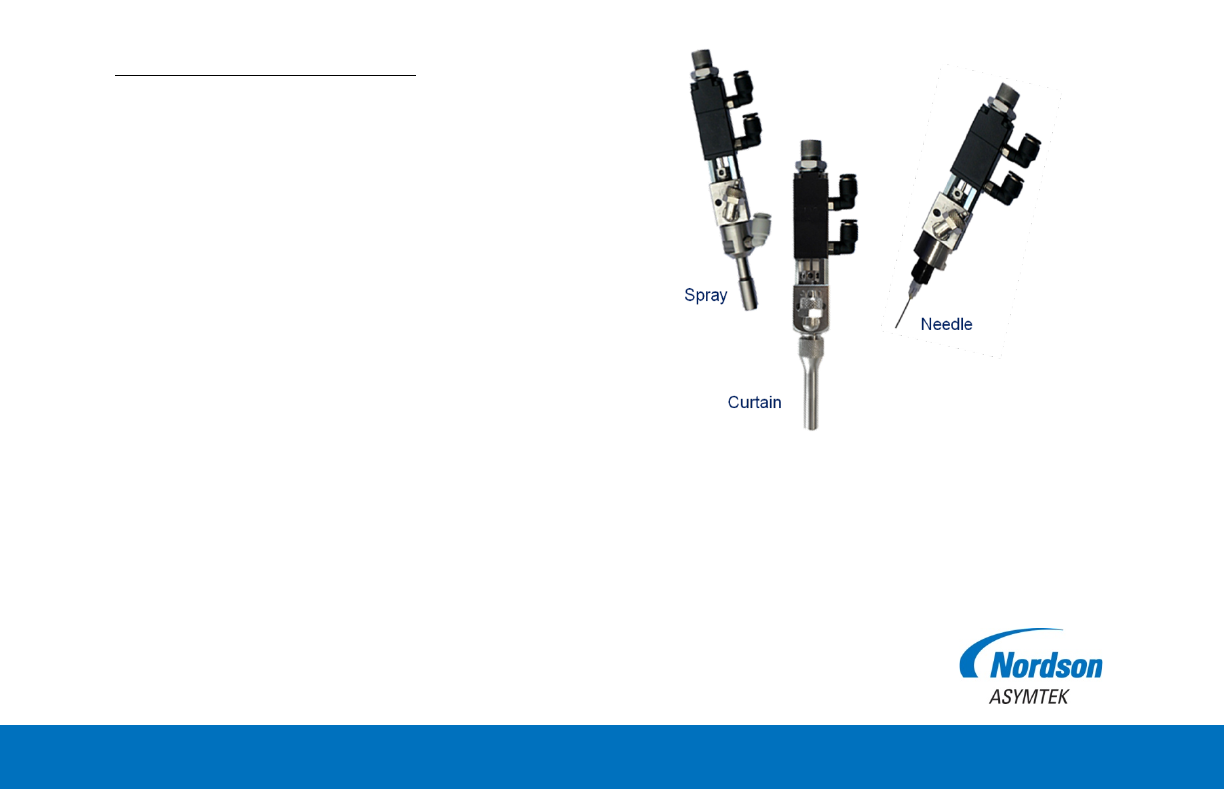

Variety of spray, curtain, and needle valves:
Additional options may be available: contact Nordson
ASYMTEK for further information.
Page 3 of 3
Specifications: Conexis
®
CX-3040 Series
Nordson ASYMTEK
+1.760.431.1919
2747 Loker Avenue West
Carlsbad, CA USA 92010-6603
Published 2018-03-21 Updated

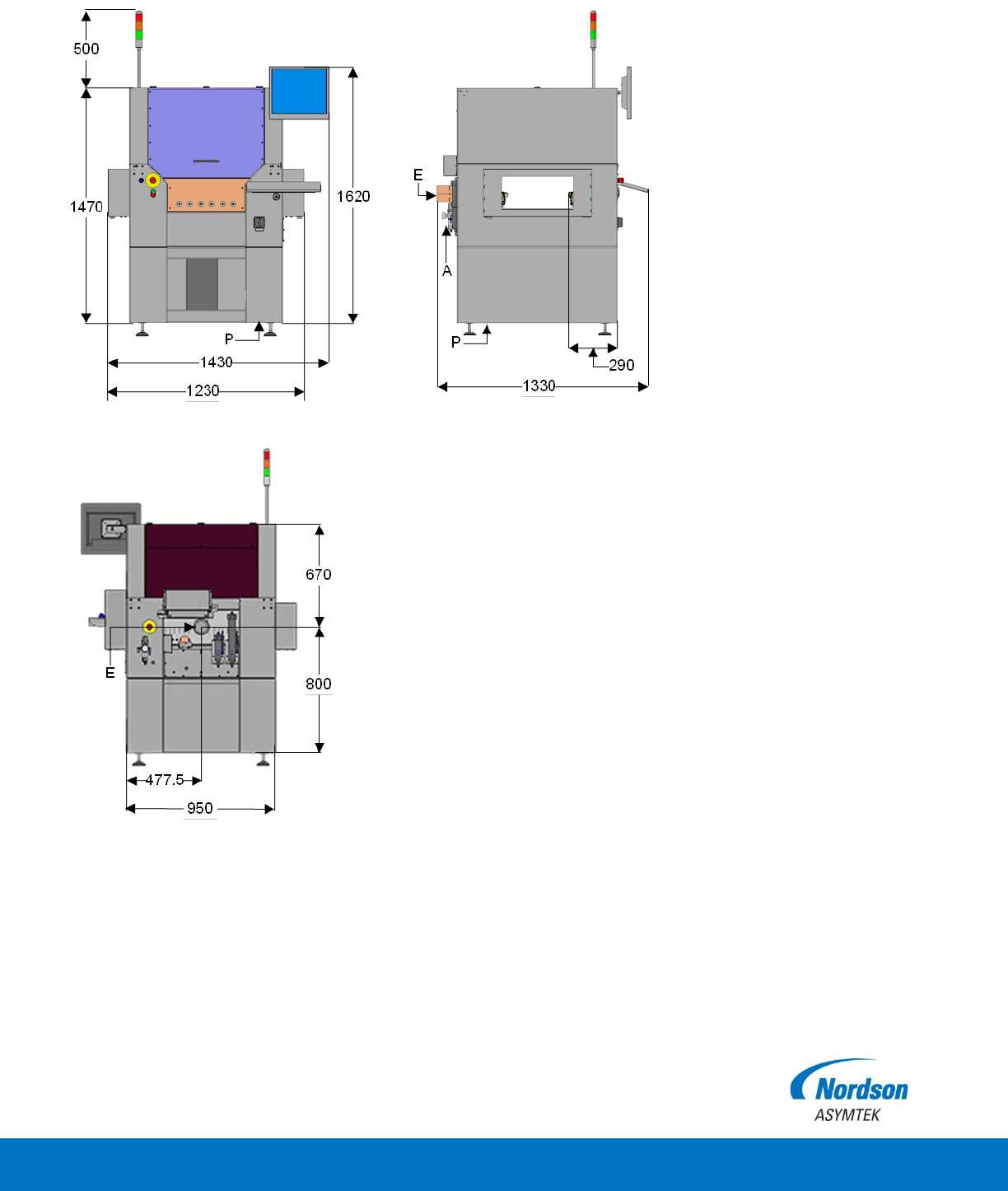

Dimensions are in millimeters
Front view (mm)
Conexis system configured for in-line
Side view (mm)
A: Inlet for air hose, on the backside of machine.
E: Exhaust pipe (100 diameter), on the backside of machine.
P: Outlet for power cable, on the bottom of machine.
Back view (mm)
