SIPLACE HF-Series
Replacing the X-Drive (Primary) [00375245-xx]
Service
Gantries
3
Copyright © 2004 Siemens 00194307-02 Issue 11/2004 3-33
3.1.4.1 Installation Check for Guide Slide and Motor Support
Installation Check
4
1
3
2

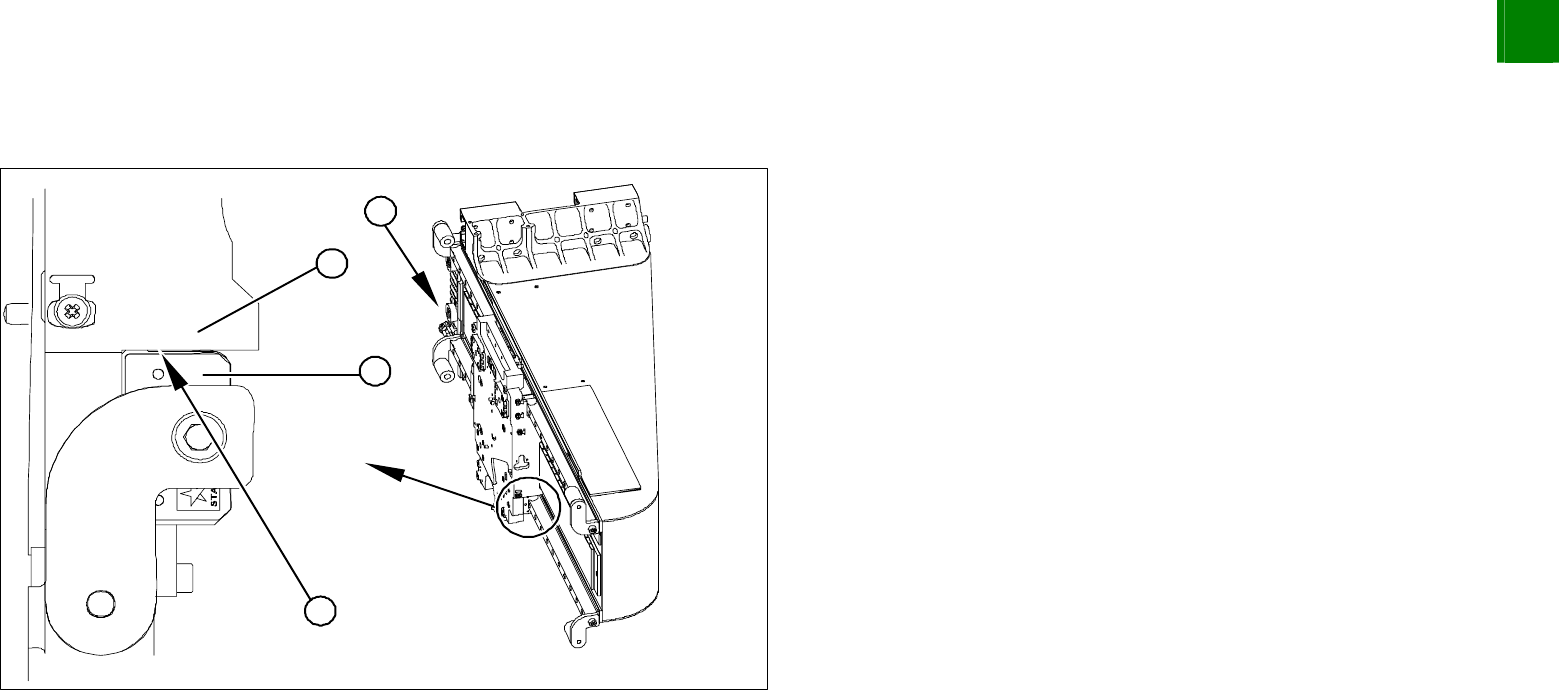

From behind, shine a nonmagnetic Xenon flashlight between
the X-drive and the magnetic strip (1).
There should be no gap (4) between the motor support (2) and
the guide slide (3) .
If there is a gap, you will need to dismantle and remount the X-
drive.
Check the distance between the X-drive and the magnet cover
with a 0.4 mm thickness gauge (plastic).
To do this, place the thickness gauge between the X-drive and
the magnet cover and then push the X-drive back and forth,
along the entire length - movement should be smooth with no
sticking or jamming.
3
Service
Gantries
SIPLACE HF-Series
Replacing the X-axis Read Head [03006472]
3-34
00194307-02 Issue 11/2004 Copyright © 2004 Siemens
3.1.5 Replacing the X-axis Read Head [03006472]

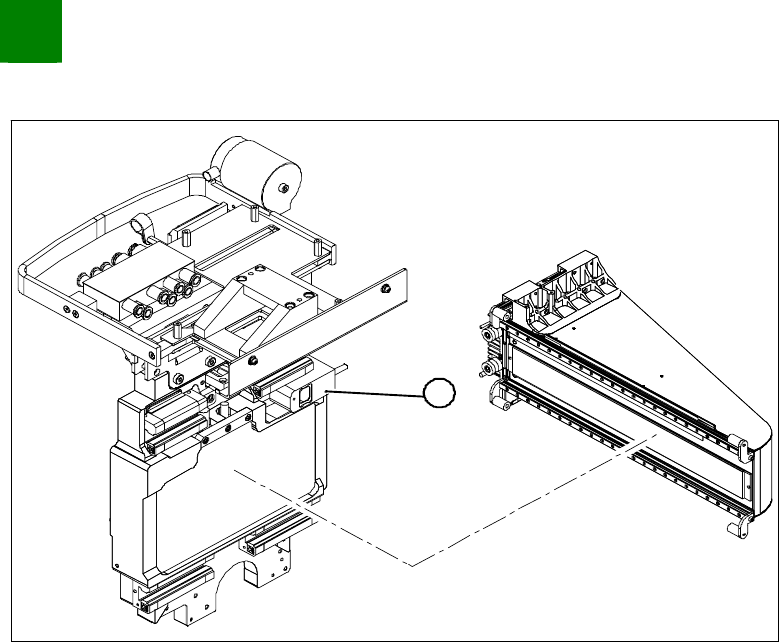

1
1. Position of the X-axis read head
SIPLACE HF-Series
Replacing the X-axis Read Head [03006472]
Service
Gantries
3
Copyright © 2004 Siemens 00194307-02 Issue 11/2004 3-35
5
1
3
2

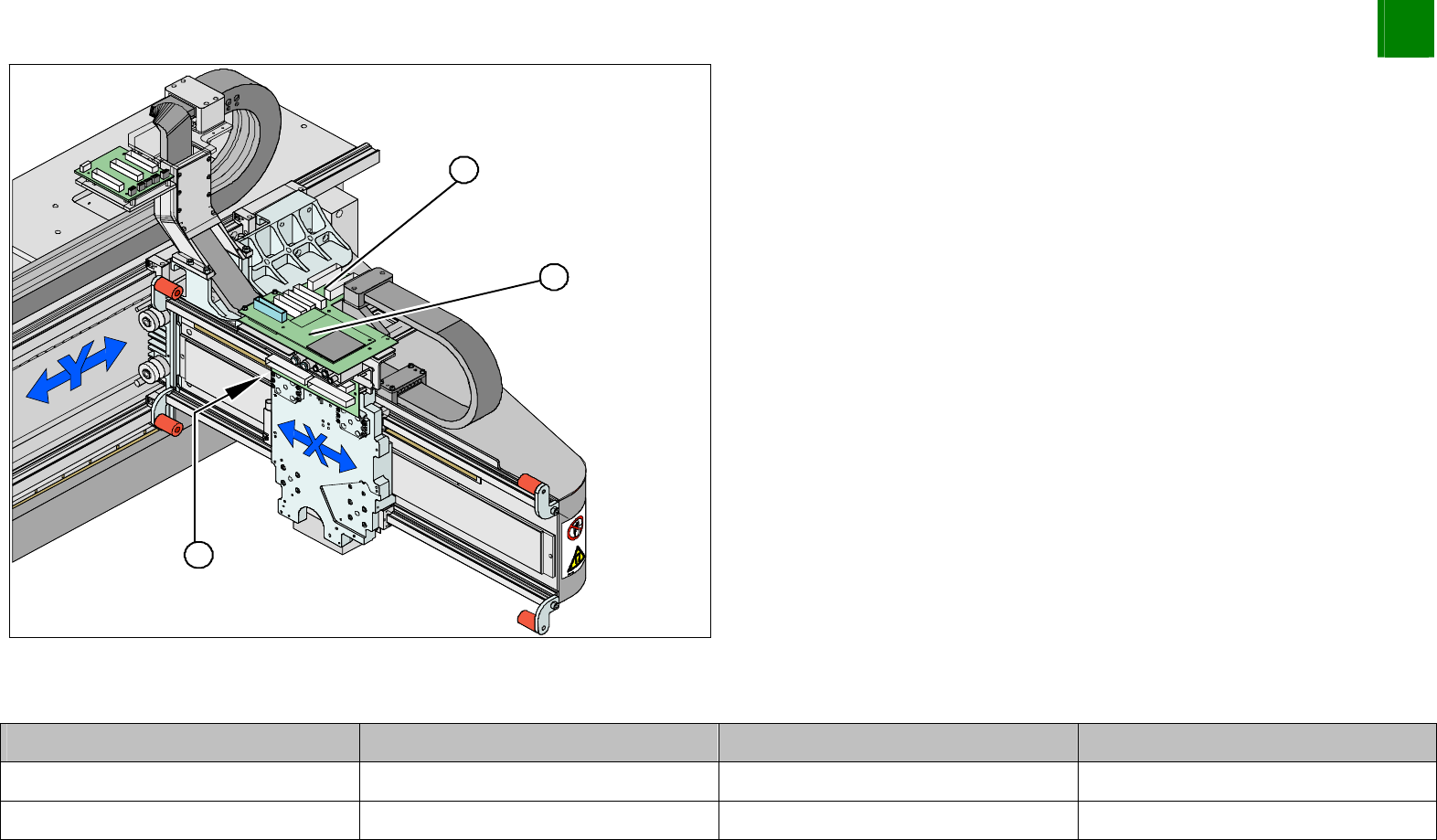

1. Vision board
2. Head interface (under the Vision board)
3. Read head position
Unplug the read head plug-and-socket connection from the
head interface (2).
Plug-and-socket connections
Assembly Gantry Board Terminal
X-axis read head Gantry 1 (DLM head) Head interface 03000901 X15ac
X-axis read head Gantry 2 (Twin head) Head interface 03000901 X15bc
