Th e CO MPA CT SL N E XT > c on ﬁg ur at ion o ff ers a co mp le tel y au to ma ted s ol uti on v ia an i nt eg rat ed , SME MA co mp at ibl e tr an sp ort s ys tem , al low in g co mp let el y aut om at ic bo ar d ha…

The engineering core bound to the system features the ACL and the iFUN modules designed to respond to both in-

circuit and functional test requirements. The ACL module is based on DSP technology and uses independent D/A and

A/D converters for each synthesized instrument. Measurements are fast, accurate and repetitive. Each ACL module

hosts 3 independent Arbitrary Waveform Generators (AWG), a Multimeter, a Timer-Counter, a large on-board

memory and processing capability to enable signal processing and digital scope functionalities.

The iFUN is a base module for AWG (Arbitrary Waveform

Generator) and/or DIGITIZER (Sampling Card) boards; it has

a 4-quadrant grounded DC Voltage Generator with ﬁxed

current limit and 16-bit resolution. The DIGITIZER is a 16-bit

sampling board. Controlled by the system PC through the

high-speed and high-bandwidth ﬁber optic bus, the test

backplane hosts digital and analog matrix cards and internal

instruments.

HARDWARE LOGIC CORE

The compact test stations are managed by

the

Seica VIVA proprietary Software, which

is a completely process-oriented test

environment, designed to streamline

test program development while the

functional graphic environment

guides the user through a series of

automated operations in an intuitive,

self-explanatory environment.

The

VIVA Software permits an

easy and intuitive management

of the CAD data, which are

directly imported for test

generation, validation and diagnostics

purposes.

Seica provides also advanced

Design-for-Test programming solutions for

high-mix PCB manufacturing. The new

VIVA

EXT> is able to import product data

either in its original CAD format, or in the form

of machine programs, and convert into

optimized test programs in a matter of

seconds even for highly complex boards.

This shows the amazing versatility of the

NEXT> platform, which ensures that

programs developed on other

NEXT>

systems, can be deployed on the compact

NEXT> SERIES. This means that a

program developed on a

Pilot test system

can be moved without additional efforts to a

compact system, allowing the user to

optimize production testing according to

volume, throughput, test requirements, etc.

VIVA SOFTWARE: THE NEXT GENERATION

OF AUTOMATIC TEST PROGRAM DEVELOPMENT

Thanks to its unique open architecture, the VIVA software is also

compatible with numerous “front-end” packages and allows easy

integration of external (.EXE. and .DLL) software modules, as well as

third party languages that might better respond to the desire of

commonality with tools already in use at the end user plant.

My View is more than a simple graphical user interface (GUI); it

is a VIVA software component that allows the customer to:

Easily create a customizable and localizable MMI using

a Seica Graphic Editor.

Read from and write to the MyView controls at runtime

from the external test software sequences.

Run Python .NET code (IronPython) easily and directly from

the external test software sequences.

Drive all the Hardware modules with the Seica Software suite,

external software tool or Python.

Run the diagnostic test.

The systems can be housed in a variety of ergonomic enclosures

that offer different levels of scalability.

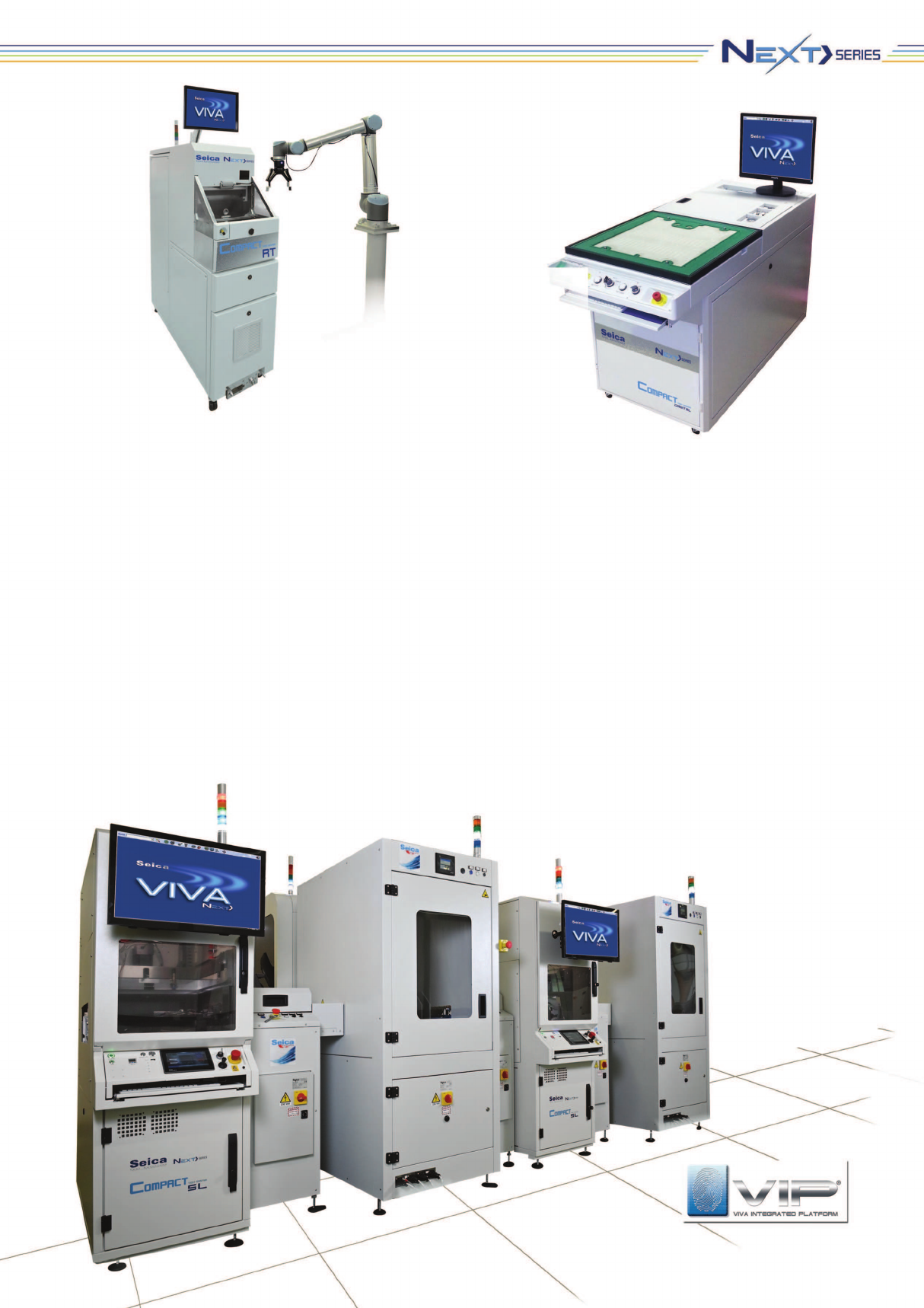

The COMPACT

NEXT> conﬁguration offers a

completely automated solution via an integrated, SMEMA

compatible transport system, allowing completely automatic

board handling and easy integration into high volume

production lines. This automated system for in-line integration

is perfect for ICT, pre-functional, functional and RUN-IN Test.

m SMEMA compliant in-line or stand-alone solution

m Up to 2048 Analog Channels

m Digital channels up to 10 MHz

m Openﬁx capabilities

m Up to 16 user power supplies

m Parallel test option (max 4 jobs)

m On board programming features

m GPIB, RS232, CAN, and other protocols management

m Motorized ﬁxture receiver

m 19” internal rack for instrument integration

COMPACT

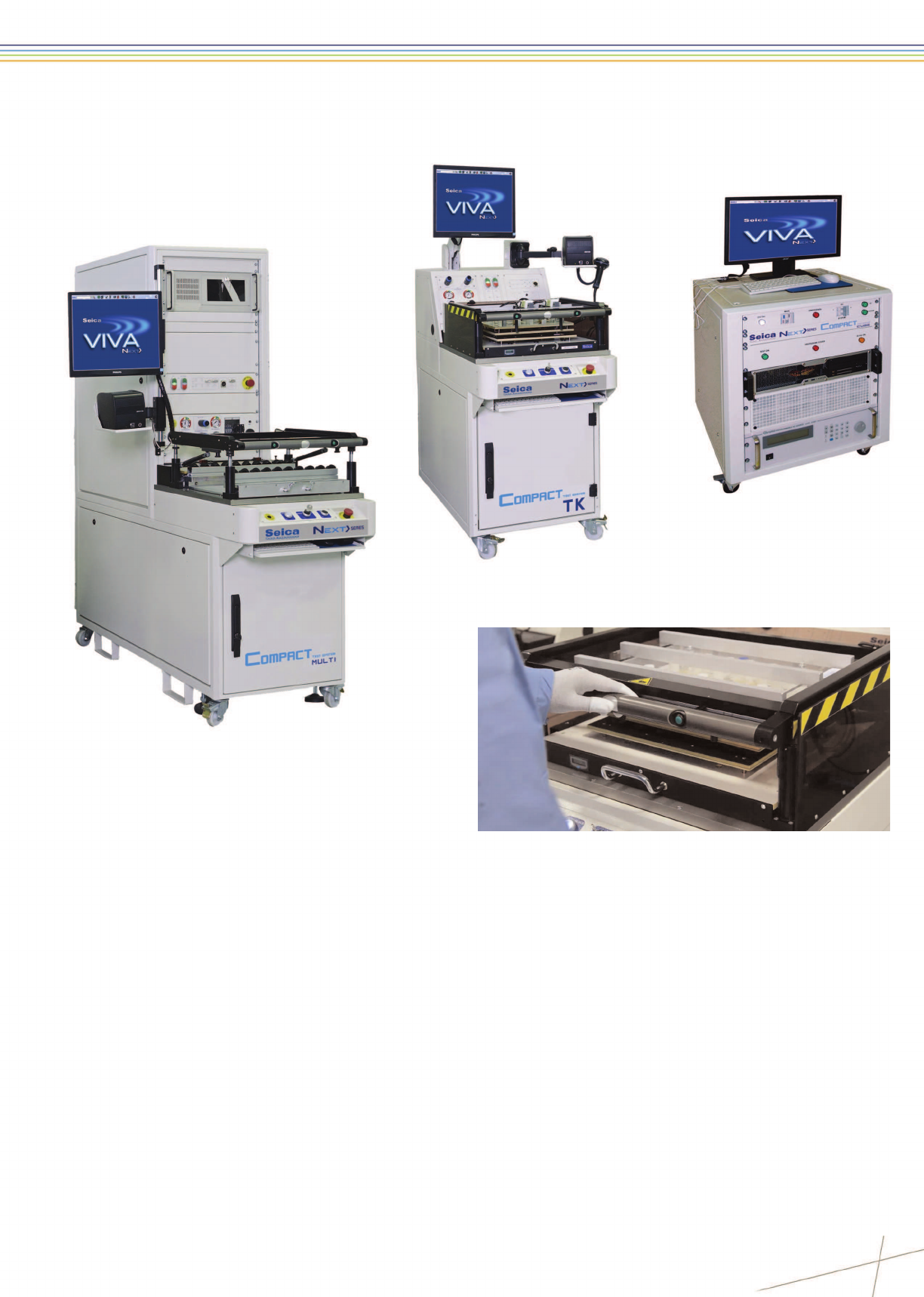

It is the ideal solution for all mixed ICT, pre-functional,

functional, EOL and RUN-IN test. The versatility and scalability

makes the COMPACT

Multi

NEXT>, the perfect test

system suited for the integration of external instrumentation,

capabilities and techniques in a single test program.

m Analog and Digital channels capabilities

m Power channels capabilities

m Optional Software in-circuit capabilities

m CAN, LIN, K-line, GPIB interfaces

m Pneumatic or Manual fixture receiver integrated

m Multiple programmable power supplies

m Resistive loads modules option

m High voltage/current capabilities

m 19” internal rack for instrument integration

m Parallel test option (max 4 jobs)

m On Board Programming (OBP) capabilities

m Radio Frequency (RF) Test up to 5G

m Digital channels up to 10 MHz

m Openﬁx capabilities

Seica offers other similar system solutions that can be

adapted to any application:

COMPACT NEXT>

and

CUBE.

Compact NEXT>: MAXIMUM CONFIGURABILITY

AND FLEXIBILITY

COMPACT

Multi

COMPACT CUBE

COMPACT DIGITAL NEXT> is Seica

response to the constant demand for testing integrated

devices via vector-based techniques and dedicated

protocols such as Boundary Scan, without excluding the

need to combine the in-circuit test as well.

m Analog, Digital and Hybrid channels capabilities

m ICT (In Circuit Test): Open/Short, R/L/C, Diodes,

Transistors, FETs, regulators

m Up to 1536 Analog Channnels

m Functional testing

m On Board Programming (OBP) test option

m Boundary scan test option

m Digital test pattern

COMPACT DIGITAL

Seica

meets the needs of the continuous driving market trend

of Electronics PCBs miniaturization with the new COMPACT

NEXT>. It is a fully automatic Rotary Table based

system, ideal for medium/high volume production. It has been

designed to provide immediate in-line robot integration to

reduce the impact of DUT loading/unloading times. The ﬁrst

tangible sign is that the rotary table gives the beneﬁt to save

the loading/unloading time.

m In-line robot integration

m Very handy and ergonomic: 450 mm width

m Up to 640 Analog Channnels

m Functional test expandibility

m On Board Programming (OBP) test option

m Boundary scan test option

m Electrical Press fixture receiver

m Rotary Table
