OperationGuide WorkProcess PartsReplacement Maintenance
Intendeditem SI-G200AABB
Documentno.WKGB-20105-01
Page 4/8
2. TakingoffSHterminalsoffeedcover
Loosen 2 P4 x 6 to take off SH terminal on feed cover. After taking off SH terminals fix 2 P4 x 6
and tooth lock washers.
Wrap SH Terminal with plastic tape to fix nylon tie
This process should be done for front and rear side.
Work spot
Enlarged
Enlarged (completed)
OperationGuide WorkProcess PartsReplacement Maintenance
Intendeditem SI-G200AABB
Documentno.WKGB-20105-01
Page 5/8
3. TakingoffSHterminalsofX-Yrelay
Loosen 4 P4 x 6 to take off SH terminal on cable relay plate. It is not necessary taking off SH
terminals which is from
XFM2(XRM2)
beneath cable relay plate
.
After taking off SH terminals fix 4
P4 x 6 and tooth lock washers.
Wrap SH Terminal with plastic tape to fix nylon tie
This process should be done for each by 2 spots on right and left side.
Work spot
Enlarged 2 spots, left side
OperationGuide WorkProcess PartsReplacement Maintenance
Intendeditem SI-G200AABB
Documentno.WKGB-20105-01
Page 6/8

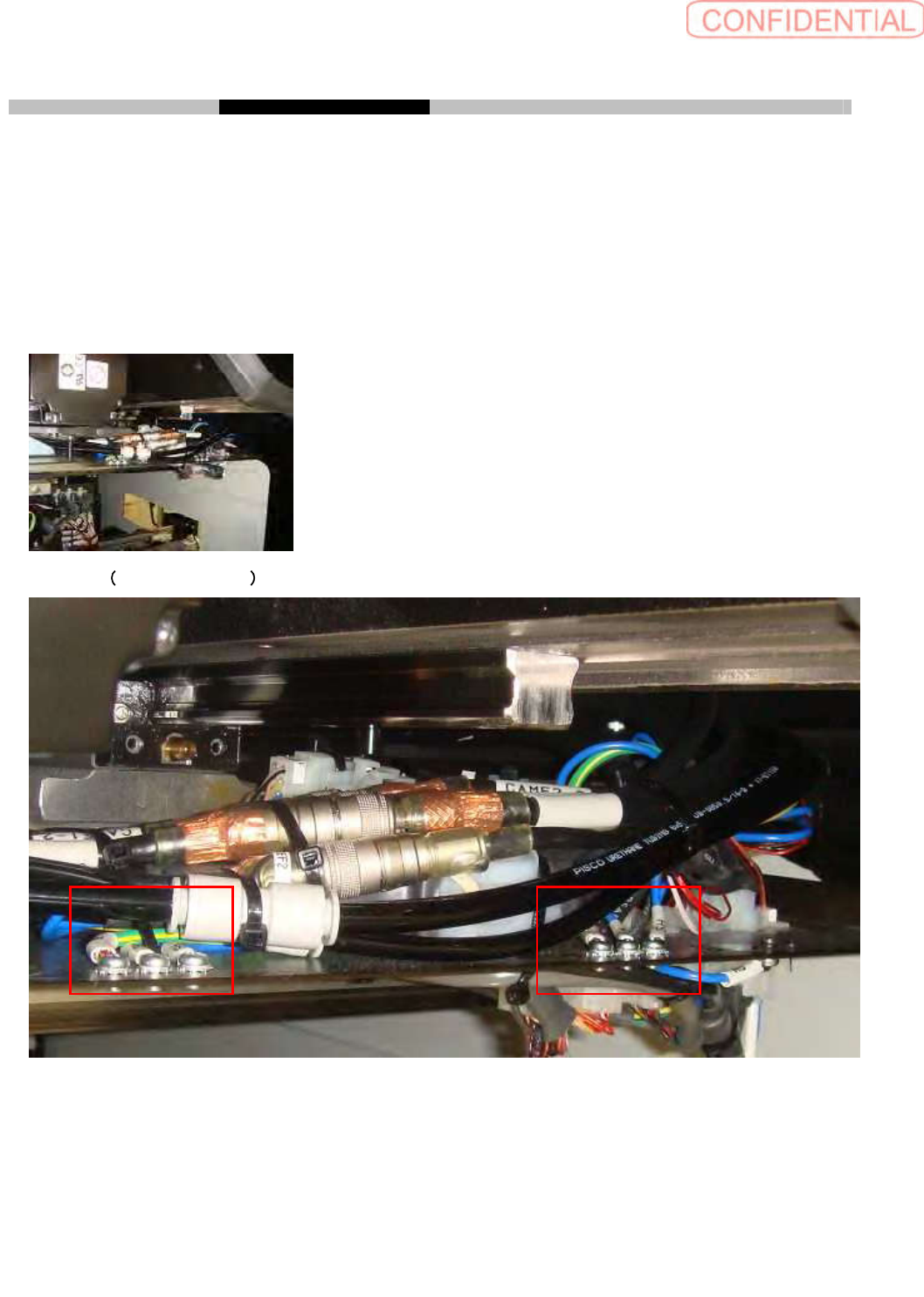

Enlarged (Completed 2 spots, left side)
Enlarged (Completed 2 spots, right side)
