OperationGuide WorkProcess PartsReplacement Maintenance
Intendeditem SI-G200AABB
Documentno.WKGB-20105-01
Page 6/8

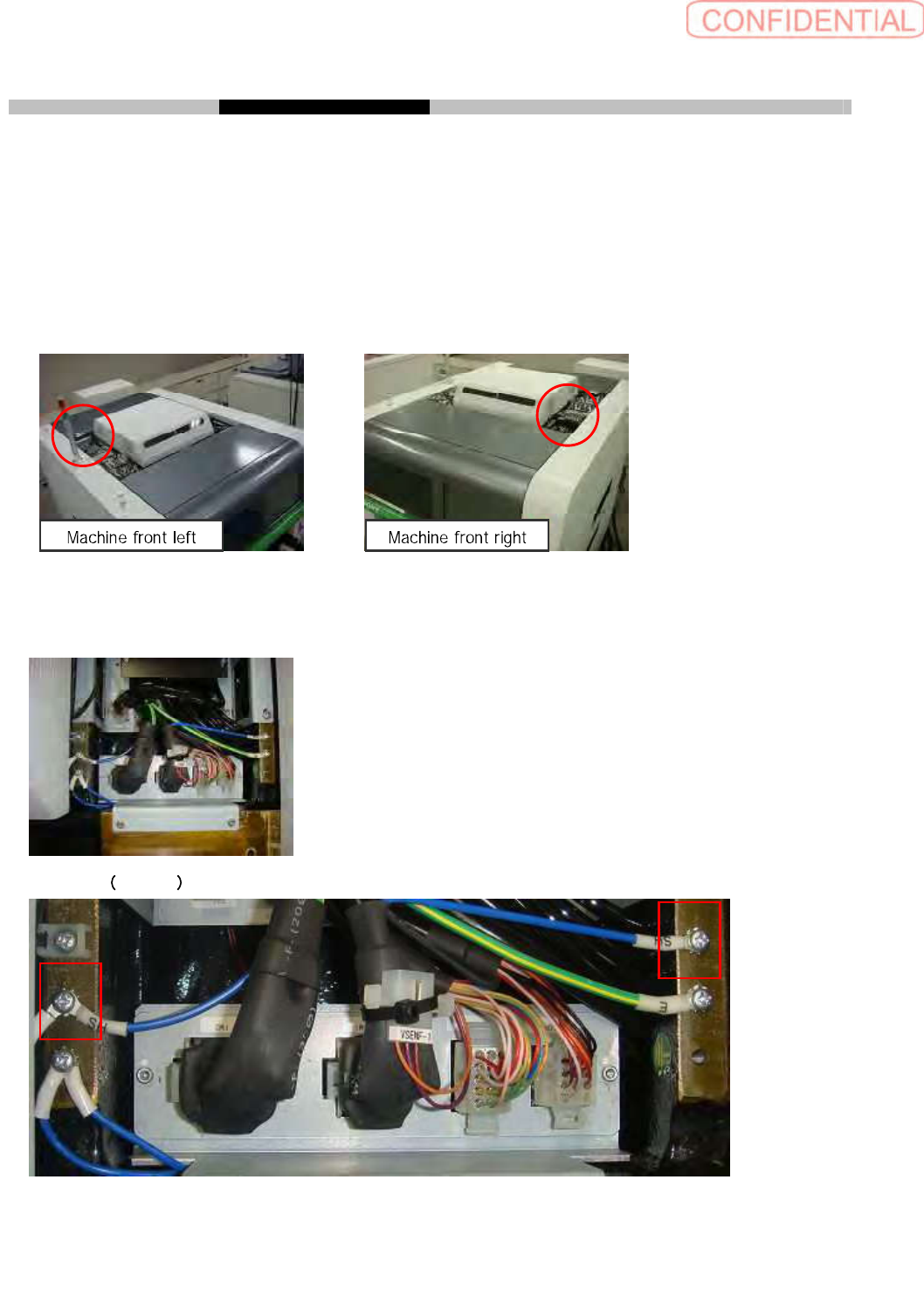

Enlarged (Completed 2 spots, left side)
Enlarged (Completed 2 spots, right side)

OperationGuide WorkProcess PartsReplacement Maintenance
Intendeditem SI-G200AABB
Documentno.WKGB-20105-01
Page 7/8
4. TakingoffSHterminalsofupperframe
Loosen 2 P4 x 6 to take off SH terminal from XFM1 (XRM1), XFM2 (XRM2). After taking off SH
terminals fix 2 P4 x 6 and tooth lock washers.
Wrap SH Terminal with plastic tape to fix nylon tie
This process should be done for front and rear side.
Y Cable rear side Y Cable front side

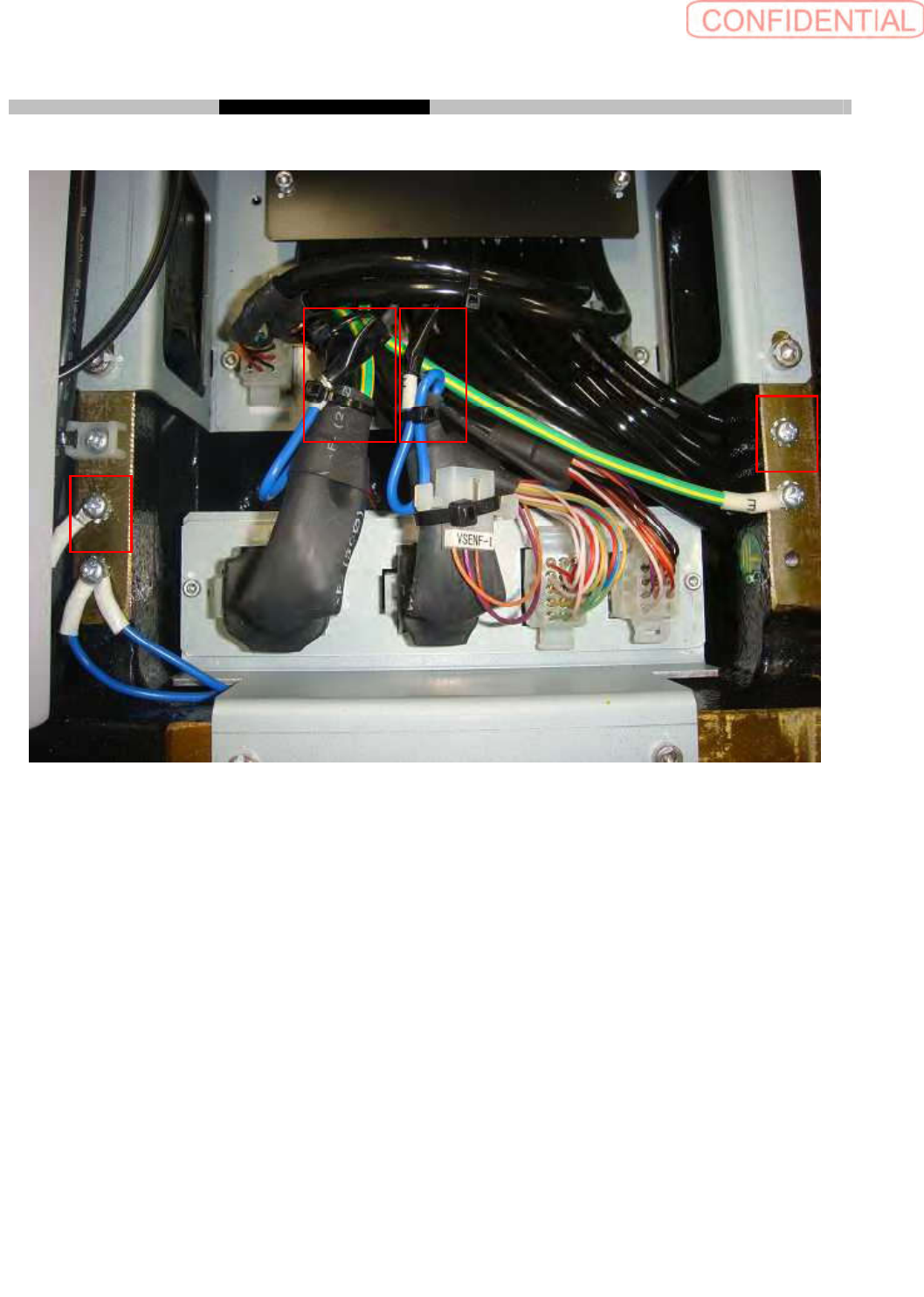

Work spot
Enlarged 2 spots

OperationGuide WorkProcess PartsReplacement Maintenance
Intendeditem SI-G200AABB
Documentno.WKGB-20105-01
Page 8/8

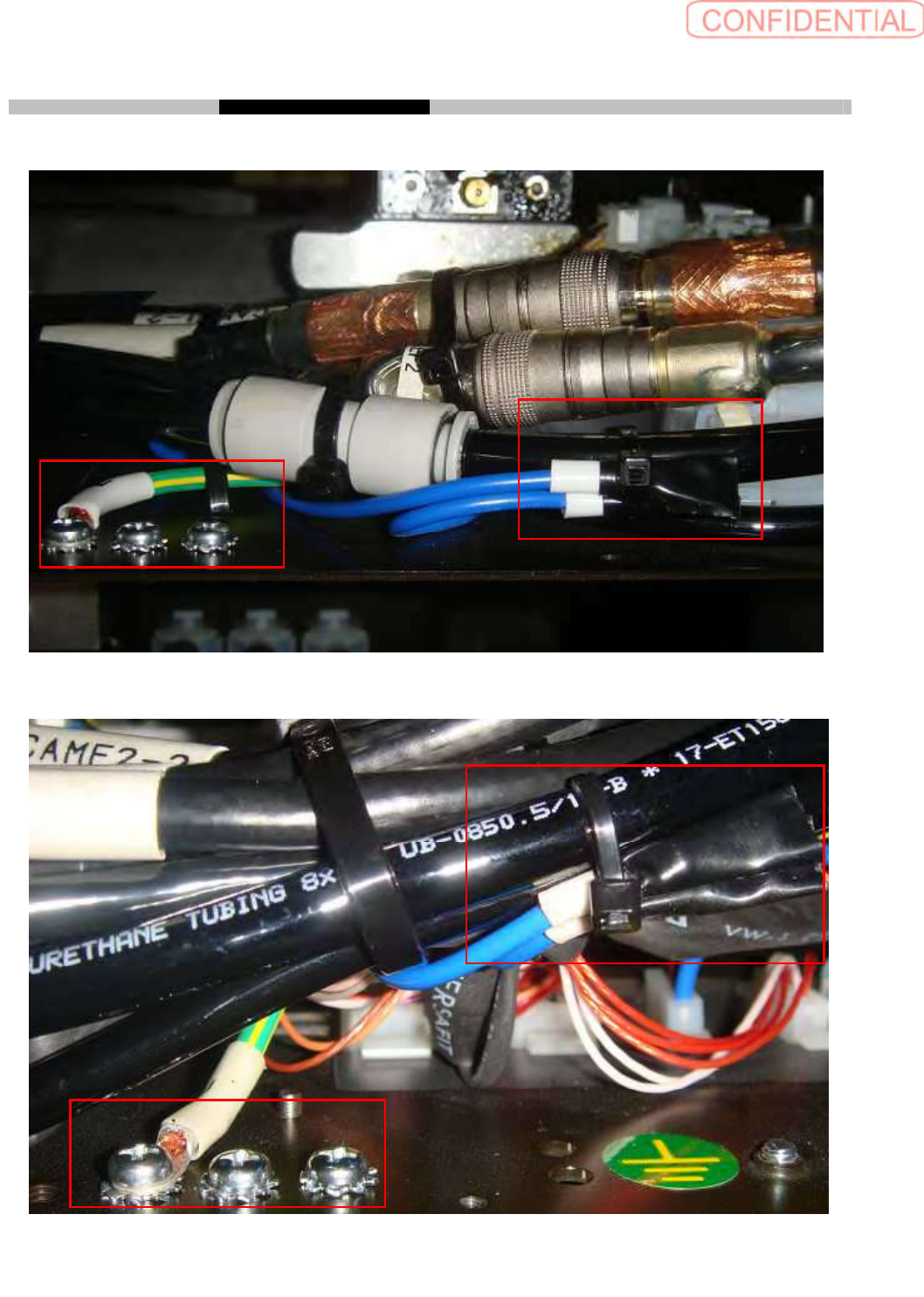

Enlarged (Completed)
5. Returnbackoriginalcondition
Put back side sealing parts to fix with CP 4 x 8.
Put back tower light position to fix with 4 CP 4 x 15.
Put back top plates to fix with CP 4 x 45.
Put back connector covers to fix with 8 CP 3 x 6.
