HLGB-10105-01 Calibration Data Load After loading jig data, check the following description in Calib.ini. ・ Should be same value as MOUNT_HEIGHT in NOZZLE_S_TYPE_G = head.ini. ・ Should be a value obtained by subtracting …

HLGB-10105-01

Calibration Data Load



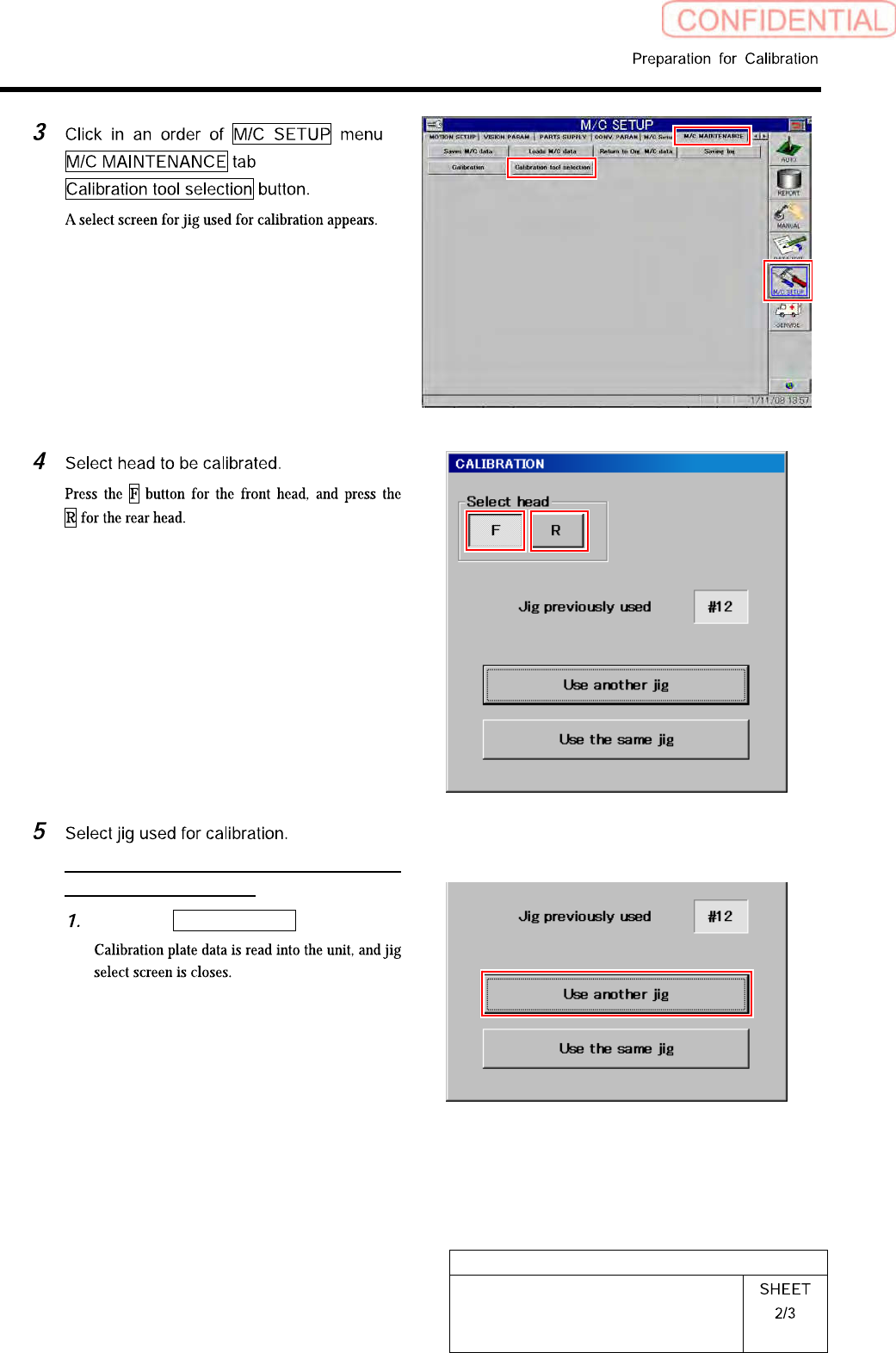

<When the indicated jig No is different

form jig No to be used>

Press the Use another jig button.

HLGB-10105-01

Calibration Data Load

After loading jig data, check the following description in Calib.ini.

・ Should be same value as MOUNT_HEIGHT in NOZZLE_S_TYPE_G = head.ini.

・ Should be a value obtained by subtracting “3” from MOUNT_HEIGHT in NOZZLE_T_TYPE_G =

head.ini .

・ Should be a value of H of [FixedCamera] POS_XYH in FIXED_INSP_HEIGHT = head.ini.

Press the Use the same jig button.

When performing calibration again, use the

previously used jig wherever possible.

“

Perform calibration sequentially from the

upper on this menu screen.

Any buttons displayed in gray become effective

by completing calibration items on the above.

HLGB-10106-01

Origin Return of the Unit (M/C ORG)

[Procedure]

Check that two plungers are

withdrawn.

Turn RT axis to a position where inner

shaft upper end matches H axis

pusher.

It is unnecessary to raise the alternation carts.

For any malfunction of the unit during origin

return, prepare to immediately press the

emergency stop switch.
