HLGB-10205-01 Fiducial Mark Setup Click the F i d ucial Mark Setup button on the Machine Set up screen. Click the XY button on the Fiducial Mark Setup screen. XY Axis screen is disp l a yed. Click the Jog Move button. Pr…

HLGB-10205-01

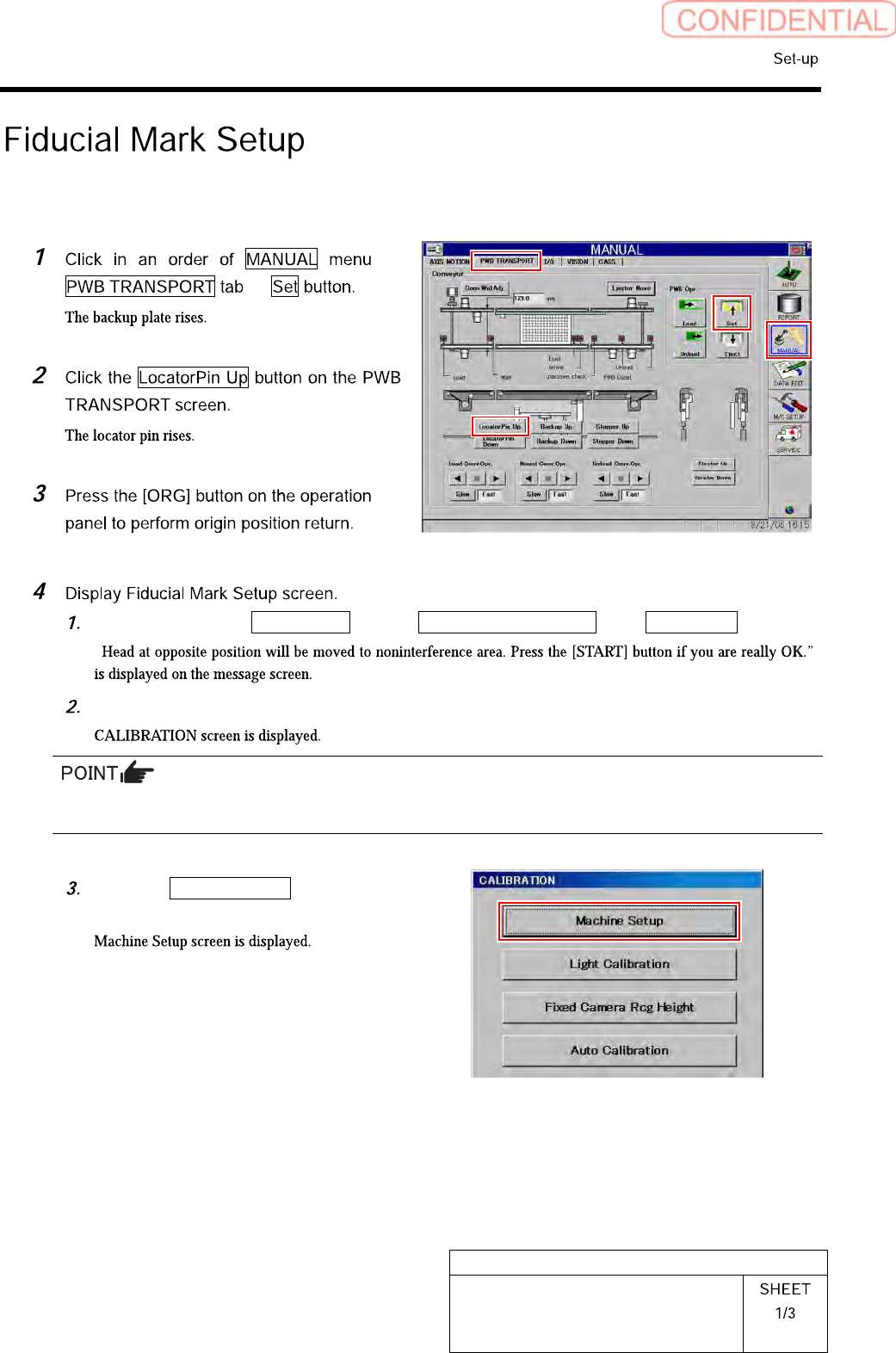

Fiducial Mark Setup

[Necessary jigs]



Click in an order of M/C SETUP menuM/C MAINTENANCE tabCalibration button.

“

Press the [START] button on the operation panel.

For procedures when selecting head for which calibration is performed, and when changing calibration jig,

refer to the “How to display calibration screen (HLGB-10105-01)”.

Click the Machine Setup button on the

CALIBRATION screen.

HLGB-10205-01

Fiducial Mark Setup

Click the Fiducial Mark Setup button

on the Machine Setup screen.

Click the XY button on the Fiducial

Mark Setup screen.

XY Axis screen is displayed.

Click the Jog Move button.

Press the cursor key to jog-move the

reference camera onto the locator pin.

HLGB-10205-01

Fiducial Mark Setup
