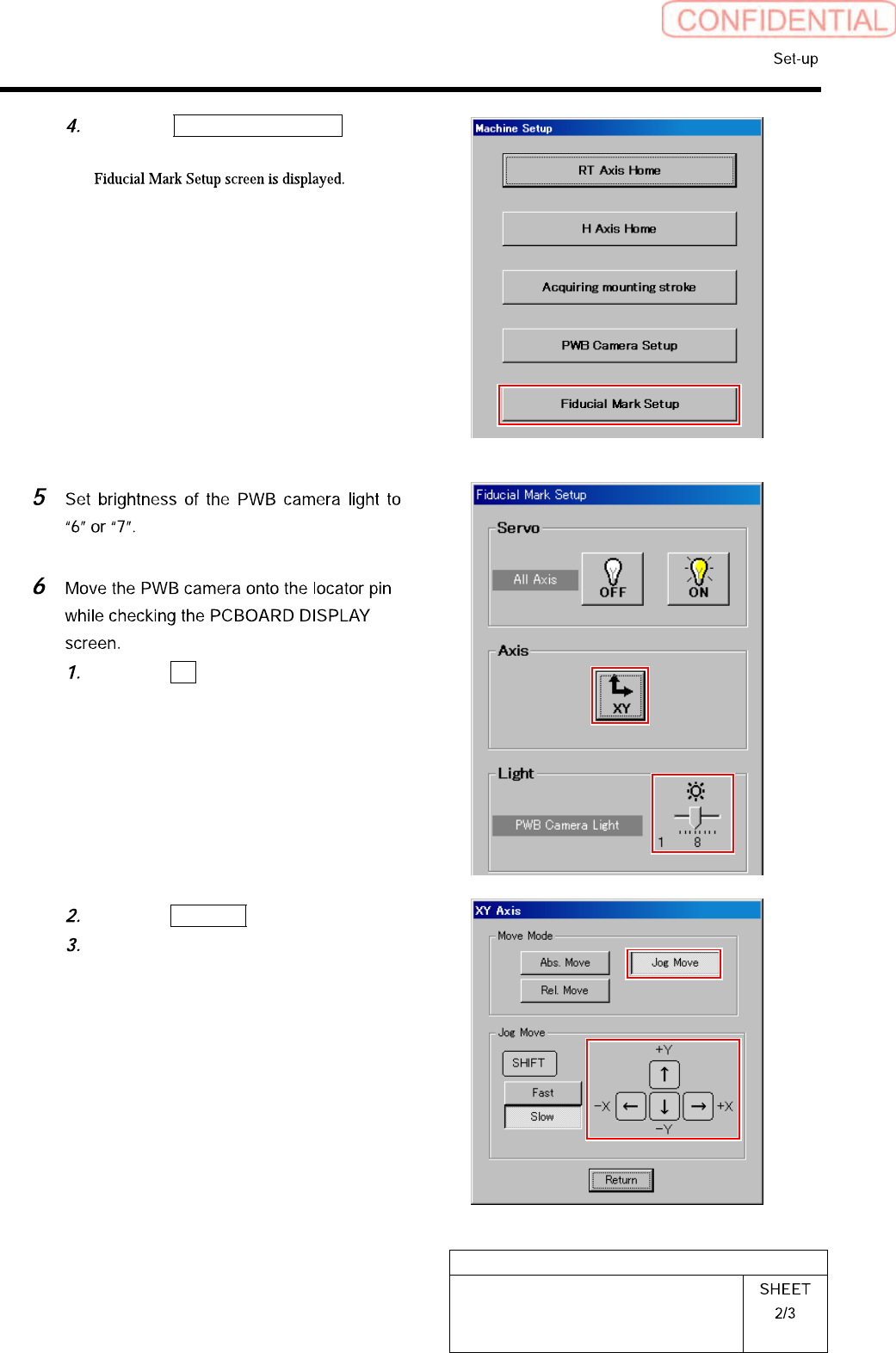

HLGB-10205-01 Fiducial Mark Setup
HLGB-10205-01
Fiducial Mark Setup
Click the Fiducial Mark Setup button
on the Machine Setup screen.
Click the XY button on the Fiducial
Mark Setup screen.
XY Axis screen is displayed.
Click the Jog Move button.

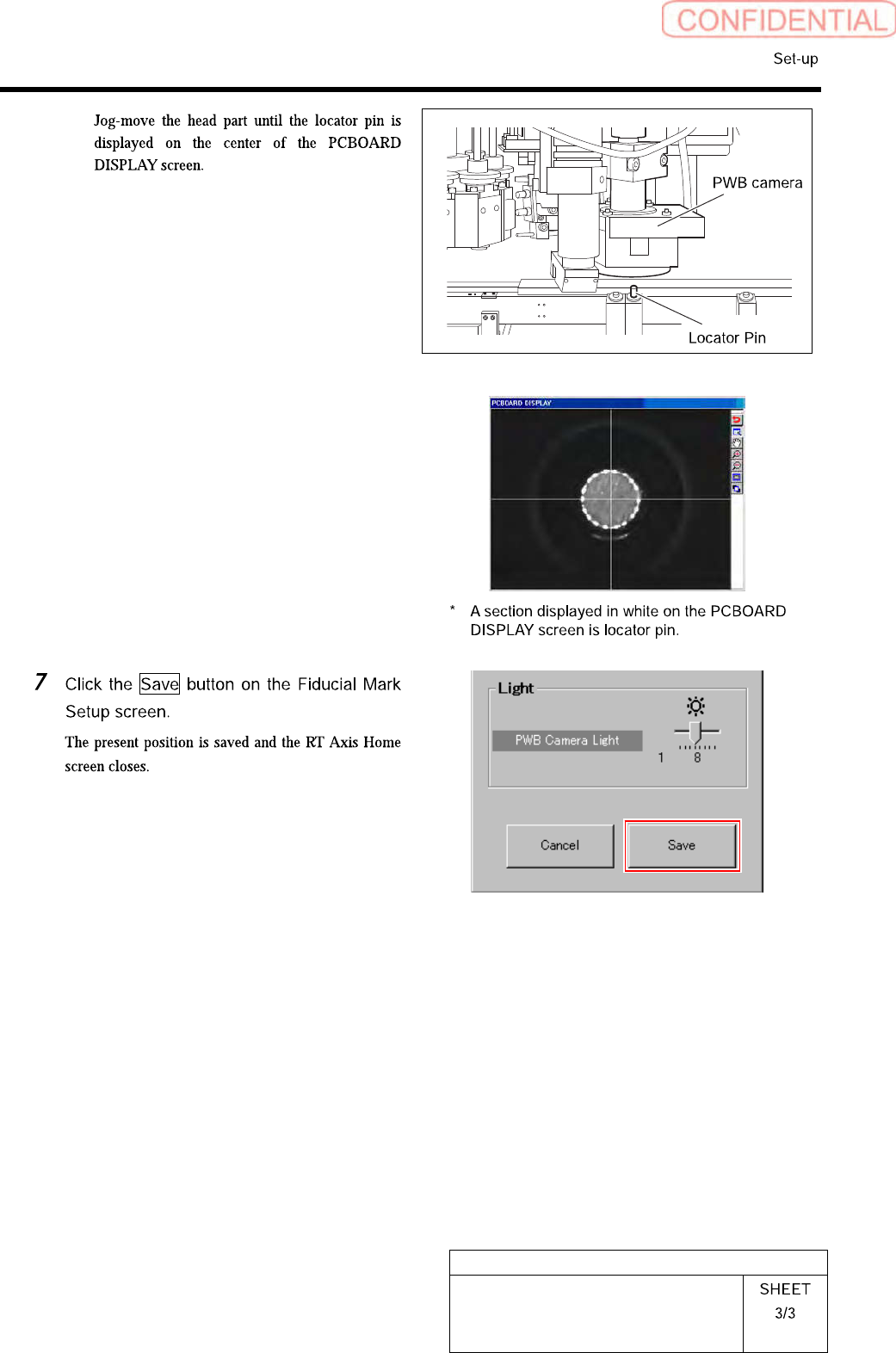

Press the cursor key to jog-move the
reference camera onto the locator pin.
HLGB-10205-01
Fiducial Mark Setup

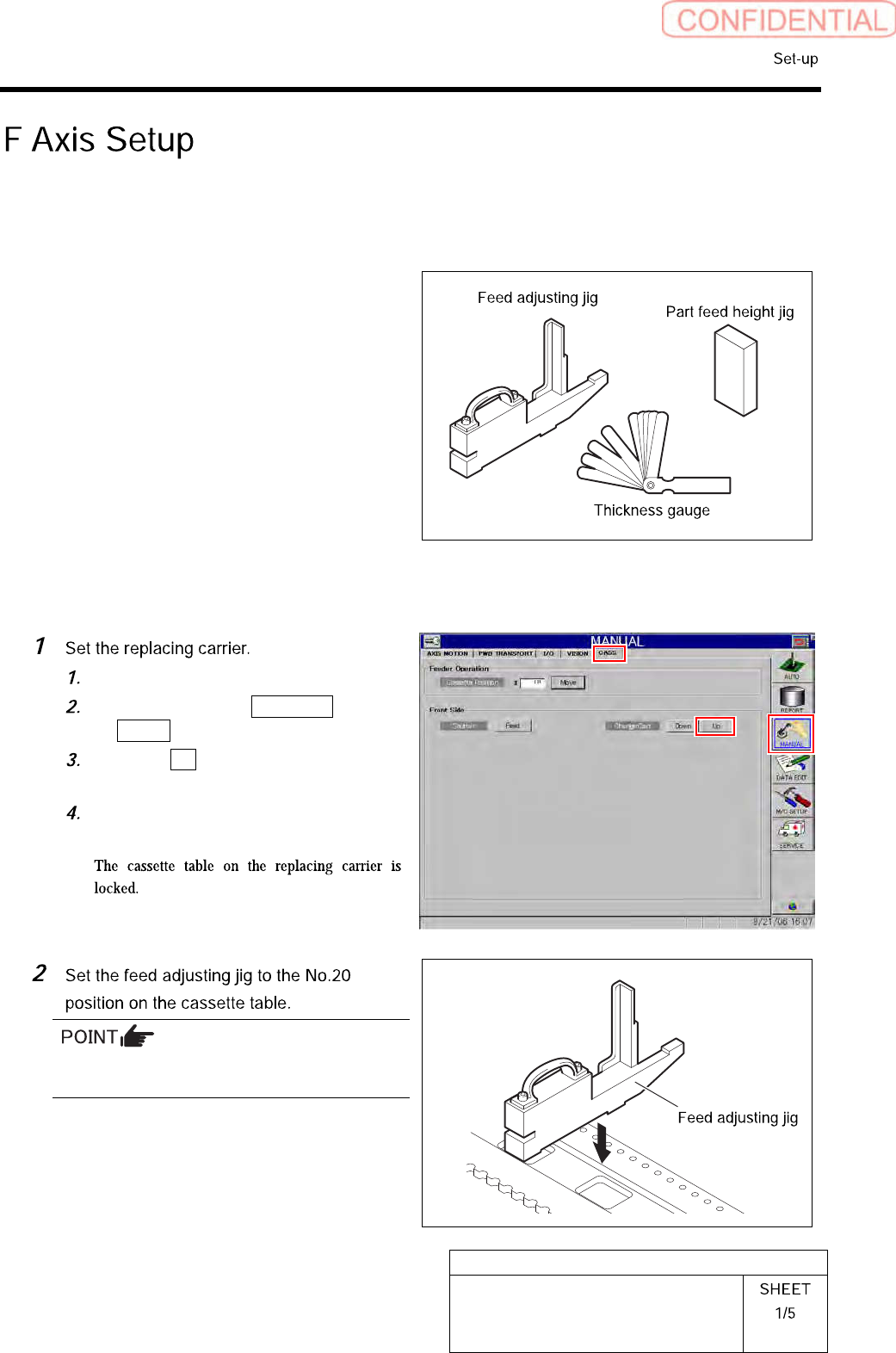

HLGB-10206-01
F Axis Setup
Perform this working on respective F axis on the front side and rear side.
[Necessary jigs]
• Feed adjusting jig
• Part feed height jig
• Thickness gauge
[Procedure]
Set the replacing carrier on the unit.
Click in an order of MANUAL menu
CASS. tab.
Click the Up button for the replacing
carrier on the front or rear side.
Press the [START] button on the
operation panel.
There should be no gap between the feed
adjusting jig and the cassette table.
