HLGB-10206-01 F A xis Setup Click in an order of AXIS MOTION tab F button. Place a check in “Normal Cassette” and “Down” and pre ss the [ST ART] button on the operatio n pane l . Check that clearance between the parts …
HLGB-10206-01
F Axis Setup
Click in an order of MANUAL menu
CASS. tab.
Input “120” into the cassette position
space, and click the Move.
Press the [START] button on the
operation panel.
Replace the parts feed height jig
(110.4mm) on the feed adjustment jig
with a parts feed height jig of 86.5mm.
HLGB-10206-01
F Axis Setup
Click in an order of AXIS MOTION
tabF button.
Place a check in “Normal Cassette”
and “Down” and press the [START]
button on the operation panel.
Check that clearance between the
parts feed height jig (86.5mm) and the
feed roller is in a range of 0<0.2mm
with a thickness gauge.
After checking, place a check in the
“Up” on the FF axis careen, and press
the [START] button.
HLGB-10207-01

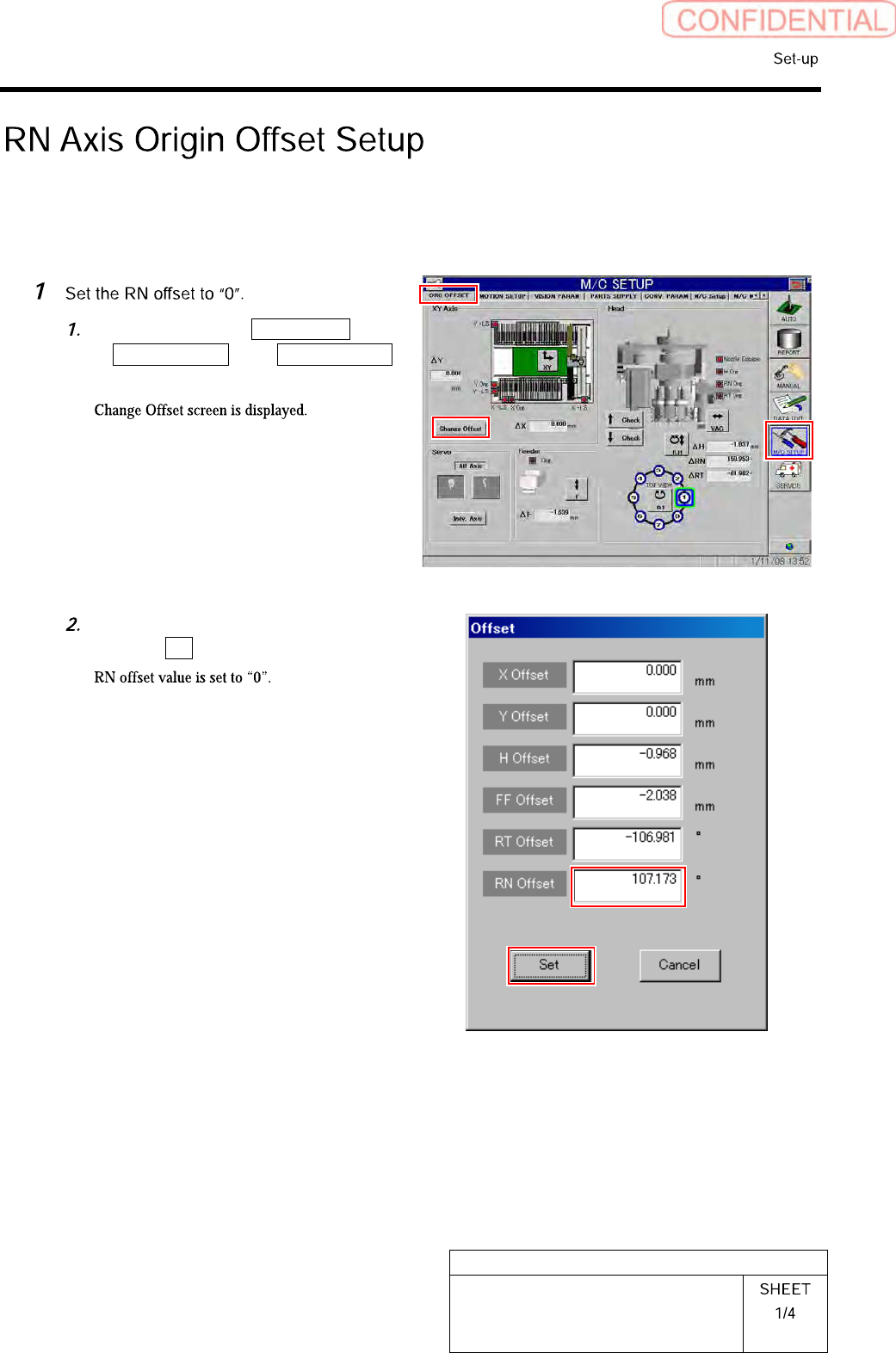

RN Axis Origin Offset Setup
Perform this working on both heads on the front side and rear side.
[Procedure]
Click in an order of M/C SETUP menu
ORG OFFSET tabChange Offset
button.
Input “0” in the RN Offset box, and
click the Set button.
