HLGB-10304-01
Auto Calibration
(Recognition of
relationship between PWB coordinate and
mechanism coordinate)

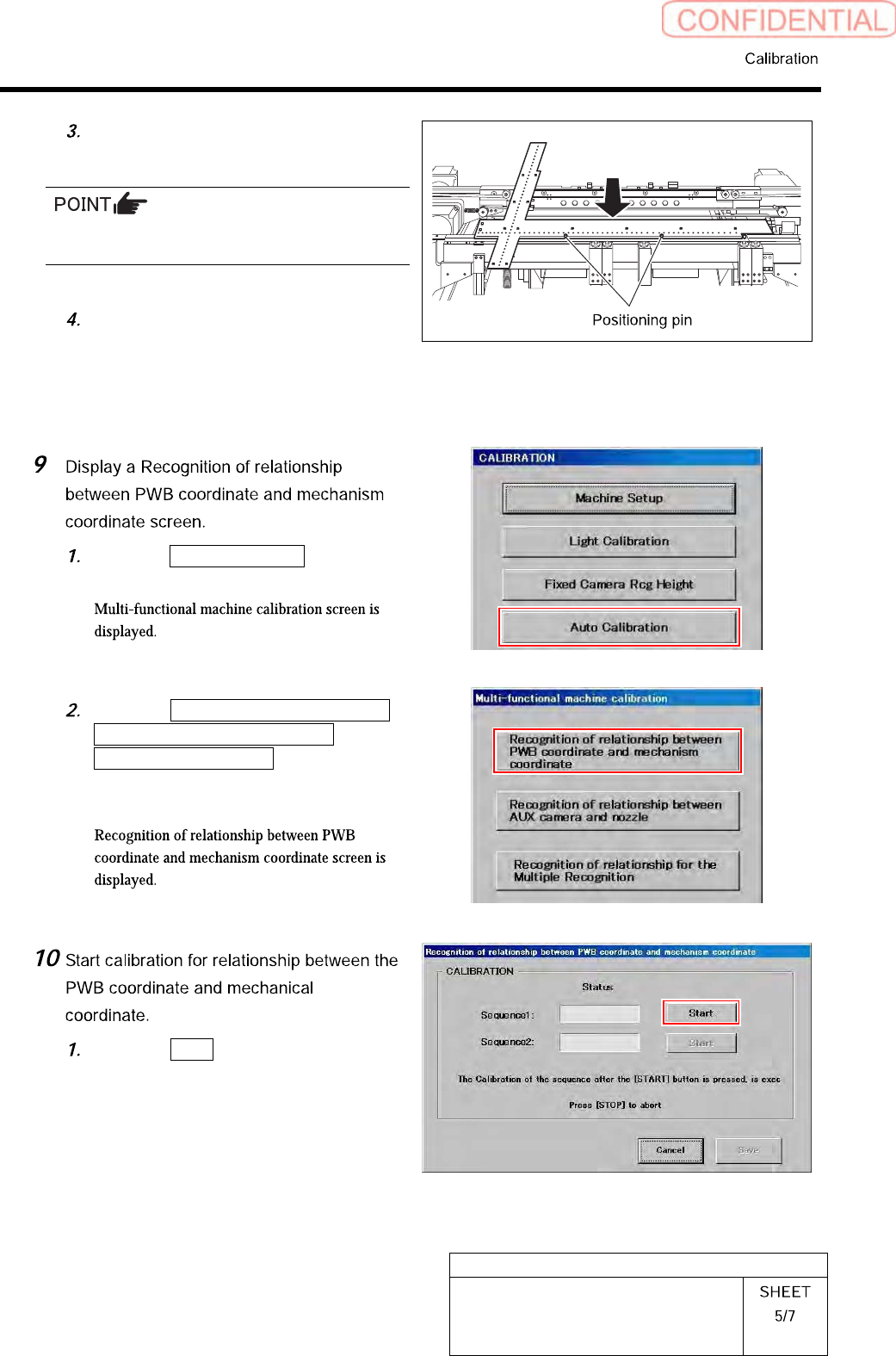

Attach the positioning pins to lock the
jig.
Before attaching the positioning pins, make sure
the base point jig is seated securely.
After attaching the positioning pins,
pull the jig slightly toward you so that
the jig comes parallel with the transfer
rail of the fixed side.
Click the Auto Calibration button on
the CALIBRATION screen.
Click the Recognition of relationship
between PWB coordinate and
mechanism coordinate button on the
Multi-functional machine calibration
screen.
Click the Start button of Sequence 1.
HLGB-10304-01
Auto Calibration
(Recognition of
relationship between PWB coordinate and
mechanism coordinate)
Press the [Start] button to start the
auto calibration.
Click the Yes button.
Align the PWB camera to the
reference position on the front of the
locator pin while checking the
PCBOARD DISPLAY.
The calibration starts when you click
the Return button on the XY Axis
window.
