HLGB-10305-01 Auto Calibration (Recognition of Relationship between th e Fixed Camera and Nozzle) Click the Recogn i tion of re lationship between AUX camera and nozzle button on the Multi-funct ional machine calibration…
HLGB-10305-01
Auto Calibration
(Recognition of
Relationship between the Fixed Camera
and Nozzle)
Click in an order of MANUAL menu
AXIS MOTION tab XY button.
Click the Jog Move button in the move
mode.
Install the BF00900 nozzles (1 piece)
to the turrets No.1.
Install the BF60400 nozzles (7 pieces)
to the turrets No.2～8.
Click the Auto Calibration button on
the CALIBRATION screen.
HLGB-10305-01
Auto Calibration
(Recognition of
Relationship between the Fixed Camera
and Nozzle)

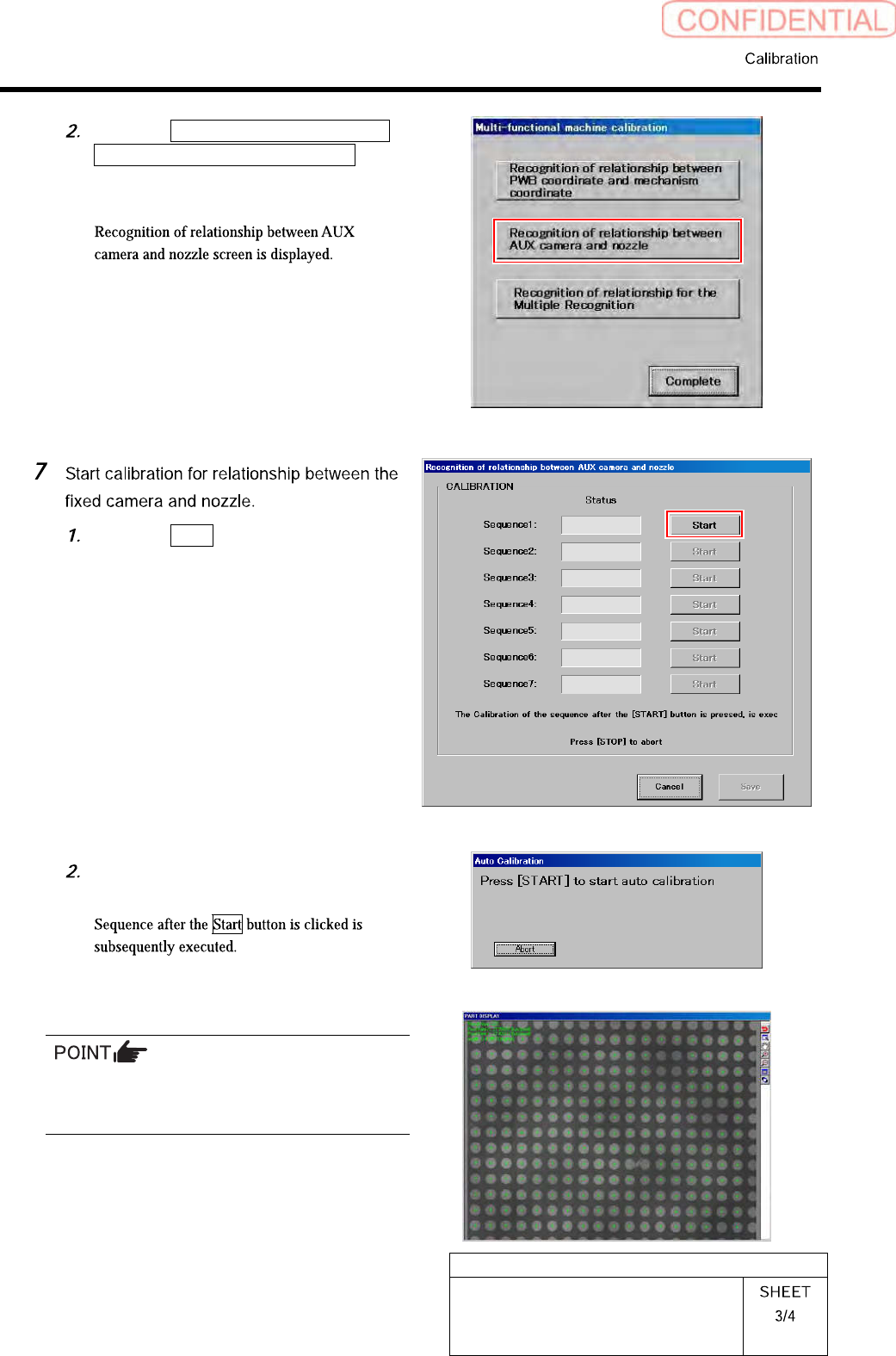

Click the Recognition of relationship
between AUX camera and nozzle
button on the Multi-functional
machine calibration screen.
Click the Start button of Sequence 1.
Press the [START] button to start the
auto calibration.
In a process of recognizing a large glass PWB,
some portion of PWB may not be recognized.
Even so, keep on the operation.
HLGB-10305-01
Auto Calibration
(Recognition of
Relationship between the Fixed Camera
and Nozzle)
If an error occurs and the process aborts, clean
the jig chips and then restart the calibration
from Sequence 1.
・
