HLGB-10306-01 Auto Calibration (Recognition of Relationship for the Mu ltiple Recognition) [Necessary jigs] Calibration data FD Calibration plate jig Positioning pins for calibration plate BF00900 nozzle (1 pc.) BF60400 …
HLGB-10305-01
Auto Calibration
(Recognition of
Relationship between the Fixed Camera
and Nozzle)
If an error occurs and the process aborts, clean
the jig chips and then restart the calibration
from Sequence 1.
・

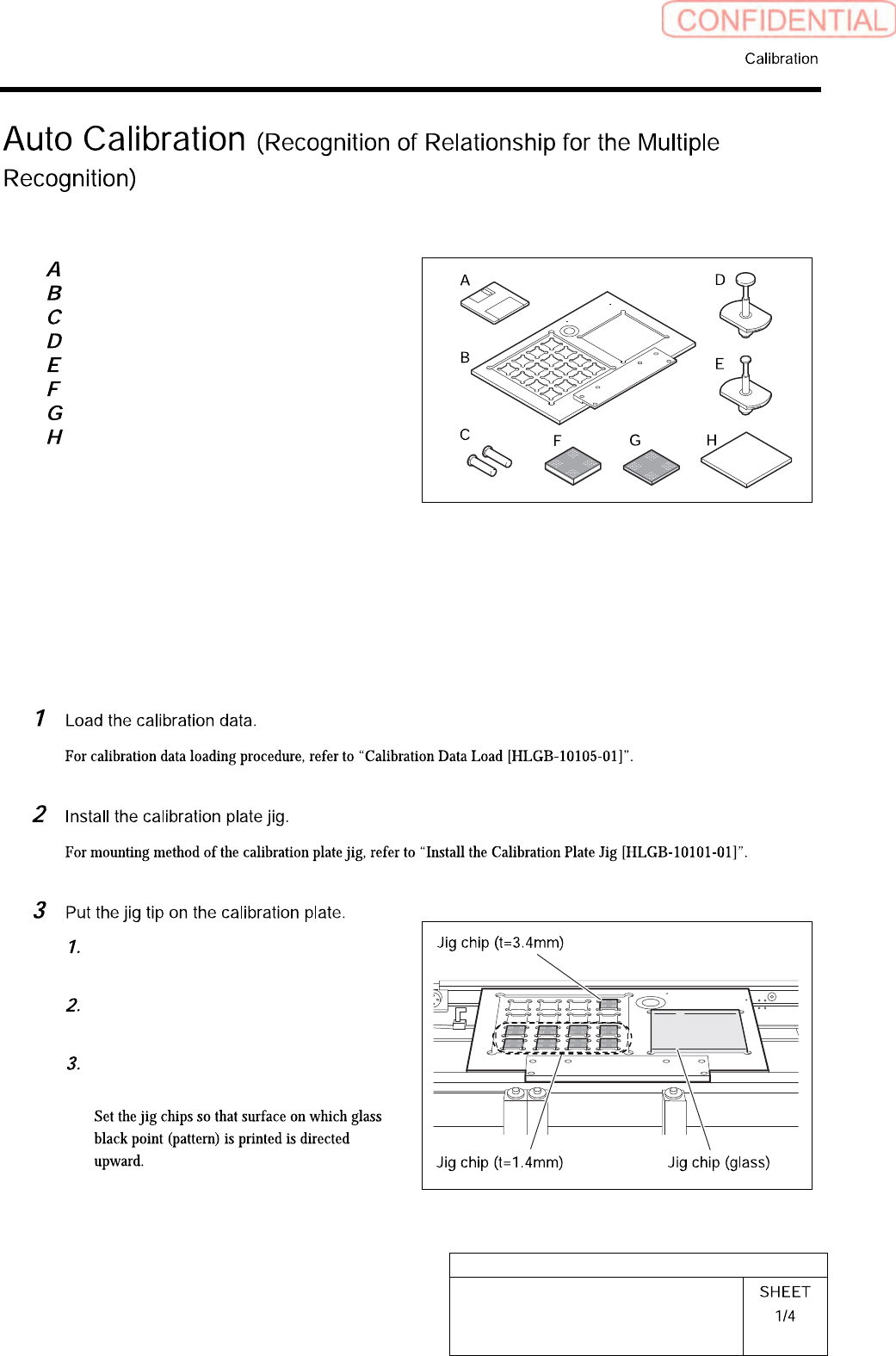

HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
[Necessary jigs]
Calibration data FD
Calibration plate jig
Positioning pins for calibration plate
BF00900 nozzle (1 pc.)
BF60400 nozzle (7 pcs.)
Calibration jig chip (t=3.4, 1 pc.)
Calibration jig chip (t=1.4, 8 pcs.)
Calibration jig chip (glass)
[Procedure]
When performing recognition of relationship for the Multiple Recognition subsequently from
calibration of position relationship between the fixed camera and nozzle, start operation from the
procedure 6.
Put 8 thinner jig chips (t=1.4mm) to
front side.
Put thicker jig chip (t=3.4mm) to the
right end of the deep row.
Put jig chip (glass) on the right
countersunk section.
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
Click in an order of MANUAL menu
AXIS MOTION tab XY button.
Click the Jog Move button in the move
mode.
Install the BF00900 nozzles (1 piece)
to the turrets No.1.
Install the BF60400 nozzles (7 pieces)
to the turrets No.2～8.
Click the Auto Calibration button on
the CALIBRATION screen.
