HLGB-10306-01 Auto Calibration (Recognition of Relationship for the Mu ltiple Recognition) Click the Recogn i tion of re lationship for the Multiple Recognition button on the Multi-functio n a l machine calibration scree…
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
Click in an order of MANUAL menu
AXIS MOTION tab XY button.

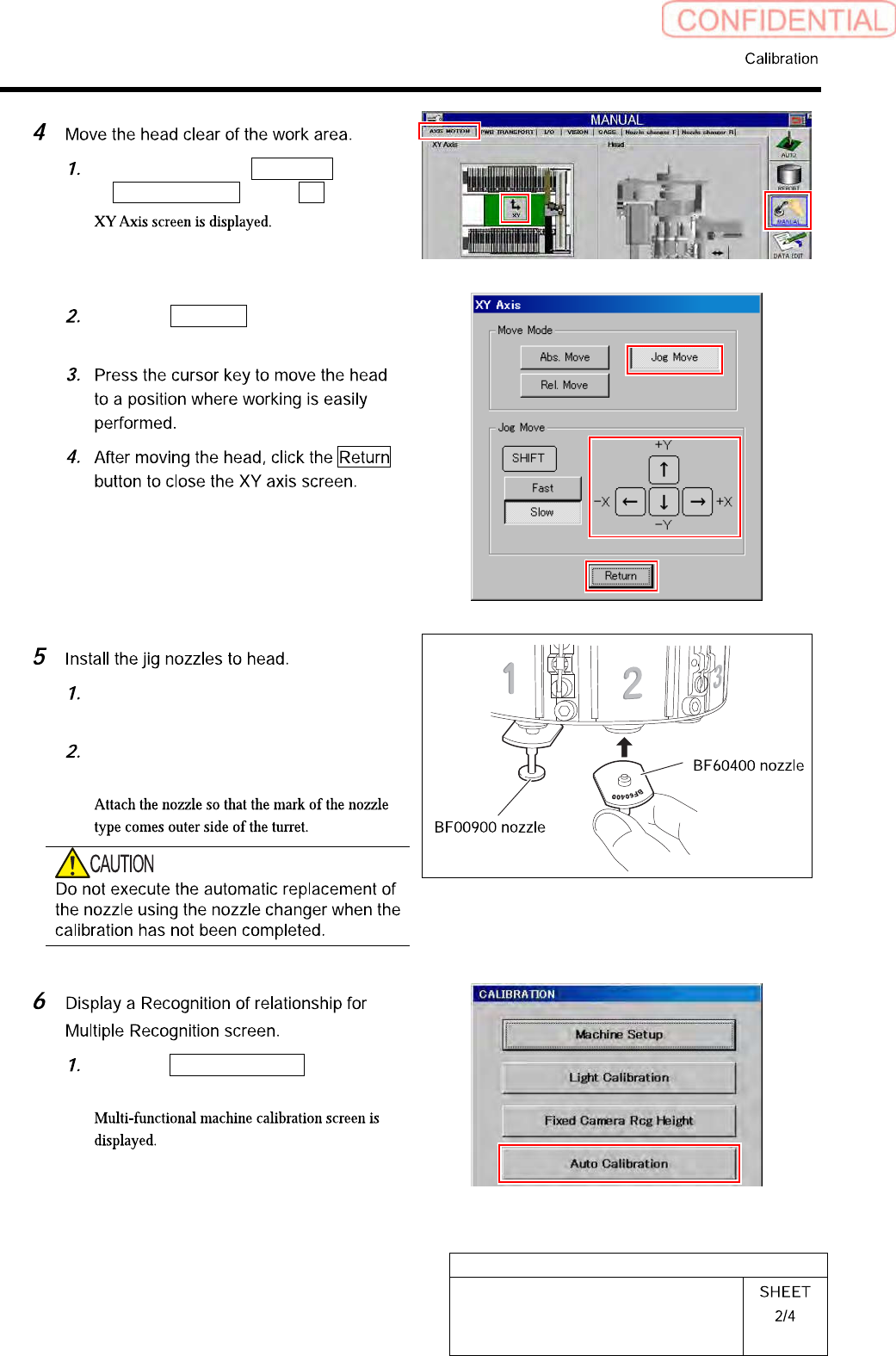

Click the Jog Move button in the move
mode.
Install the BF00900 nozzles (1 piece)
to the turrets No.1.
Install the BF60400 nozzles (7 pieces)
to the turrets No.2～8.
Click the Auto Calibration button on
the CALIBRATION screen.
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
Click the Recognition of relationship
for the Multiple Recognition button on
the Multi-functional machine
calibration screen.

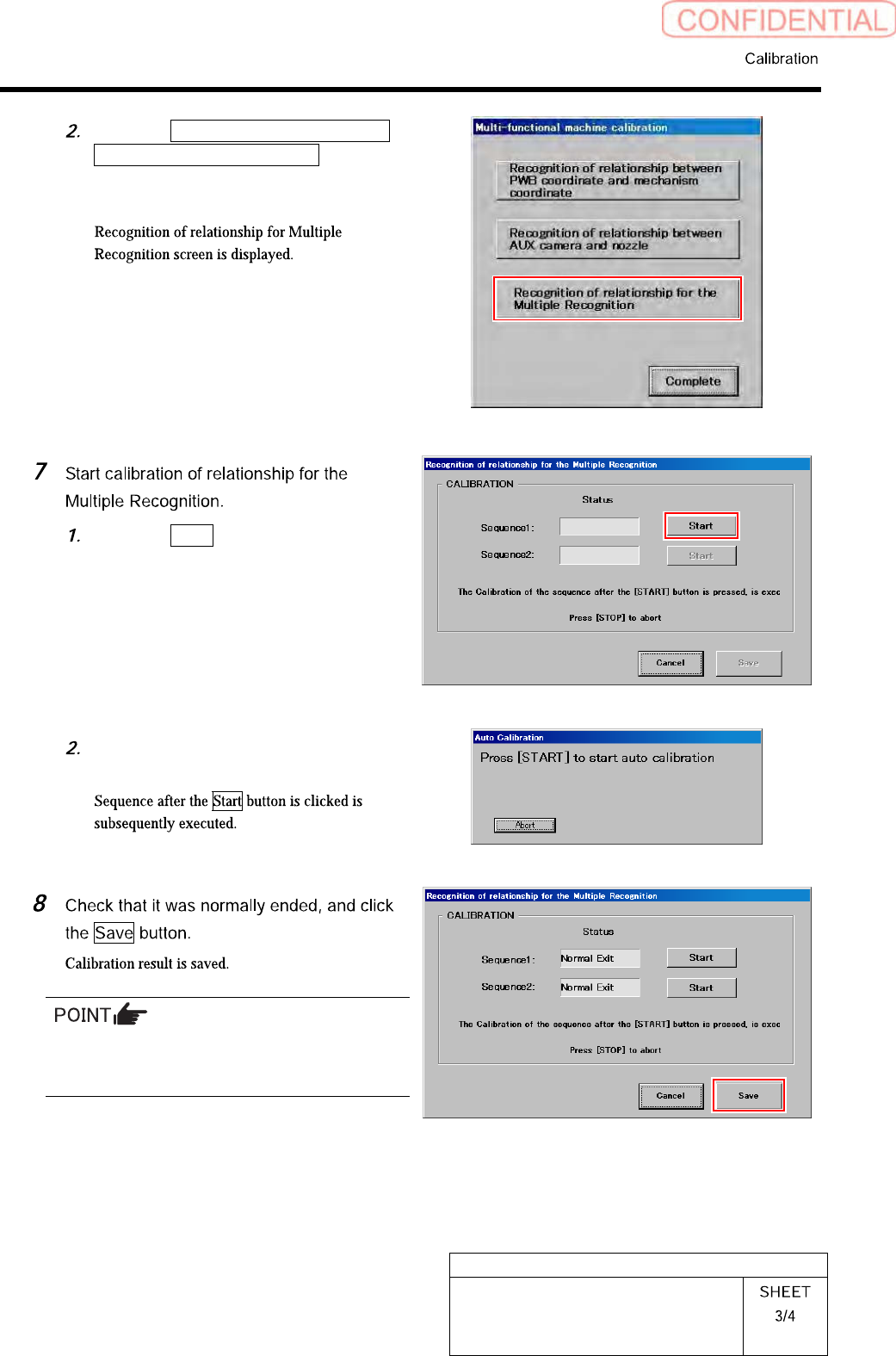

Click the Start button of Sequence 1.
Press the [START] button to start the
auto calibration.
If an error occurs and the process aborts, clean
the jig chips and then restart the calibration
from Sequence 1.
HLGB-10306-01
Auto Calibration (Recognition of
Relationship for the Multiple Recognition)
If the recognition of relationship between PWB coordinate and mechanism coordinate has
been performed in advance of this procedure, return the software limit for Y-axis to the
original value.

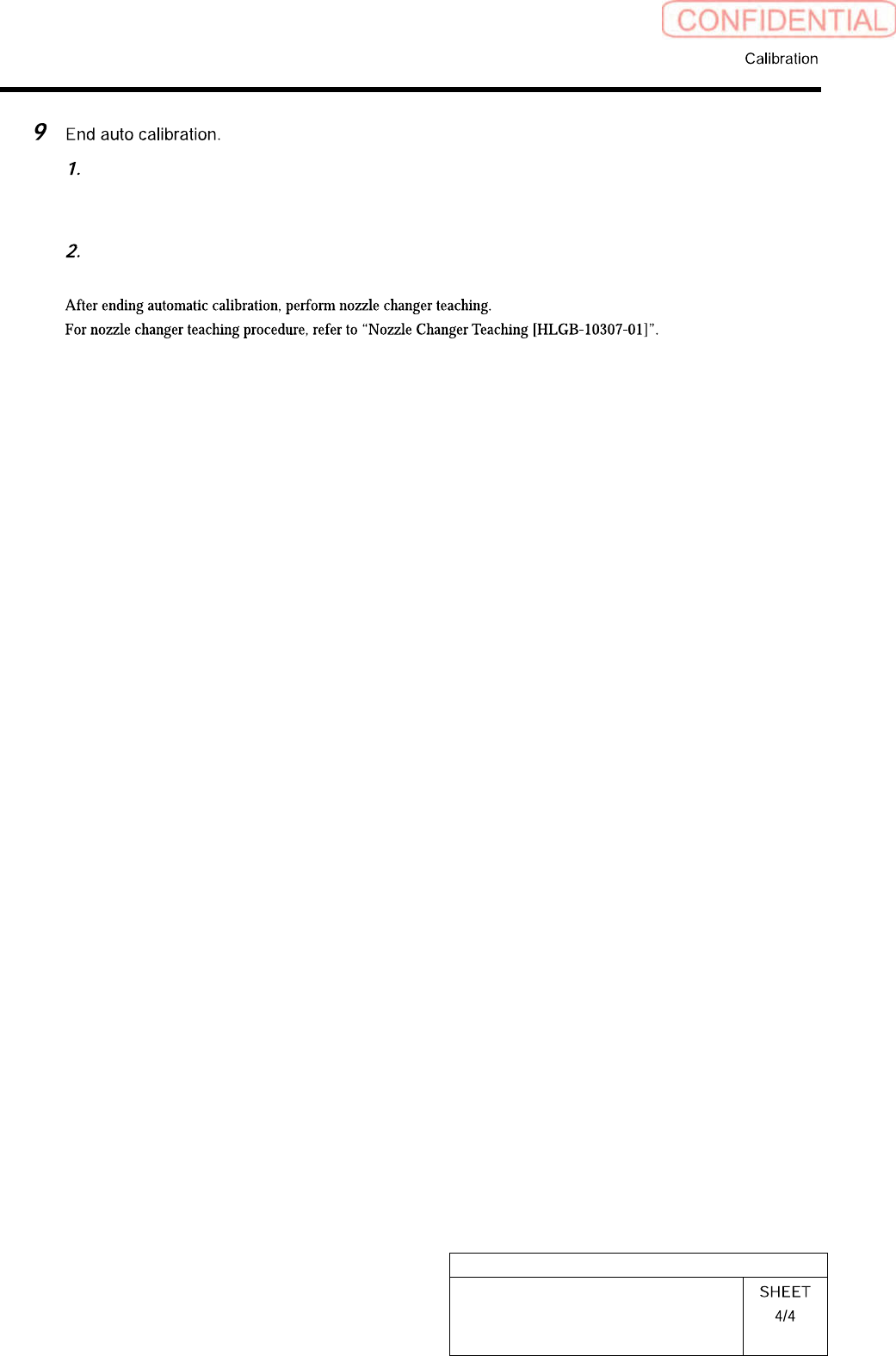

Remove the jig chips, calibration plate, and the jig nozzles.
