HLGB-10307-01

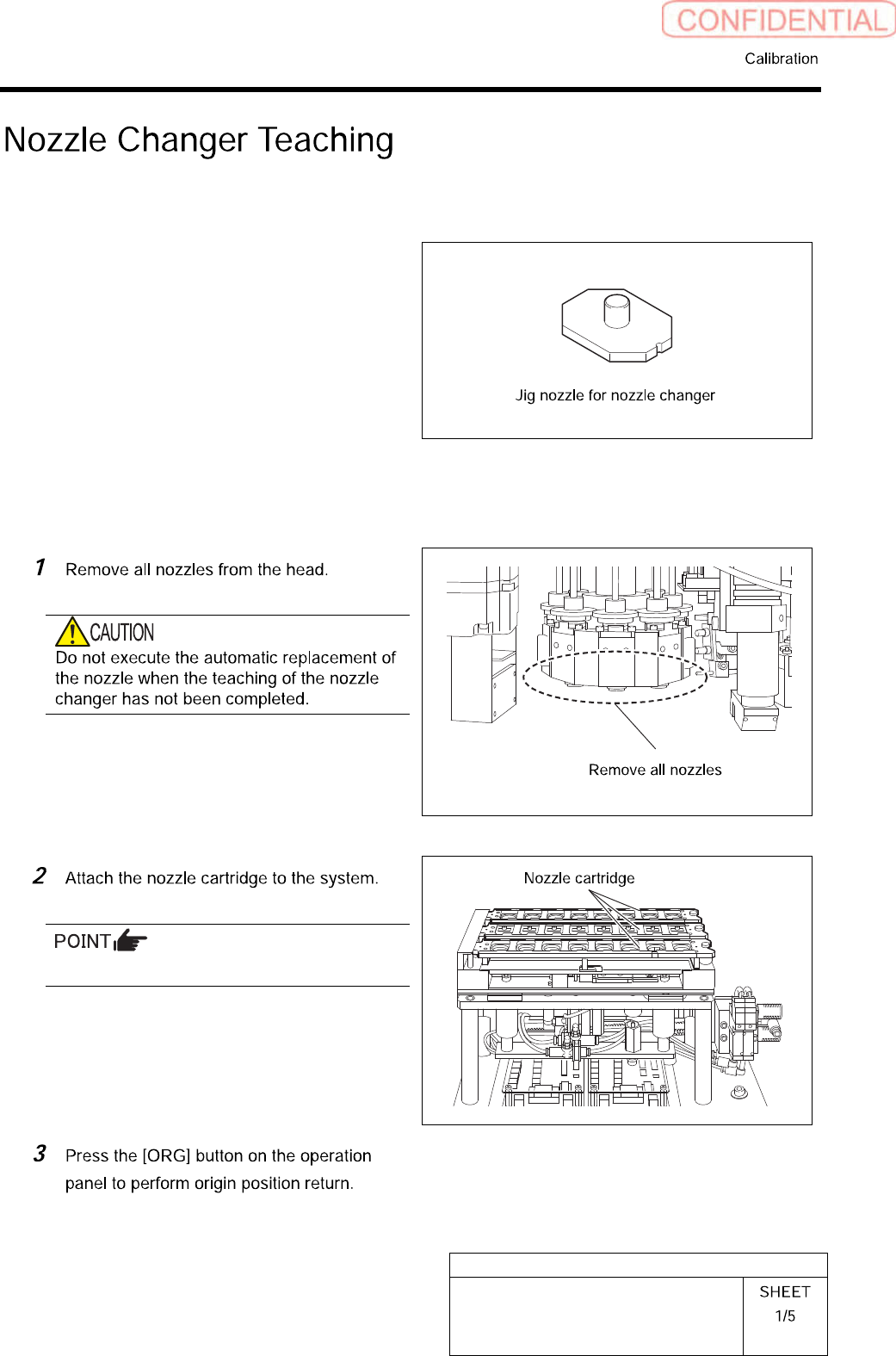

Nozzle Changer Teaching
[Necessary jigs]
• Jig nozzle for nozzle changer
[Procedure]
Do not install a nozzle to the nozzle cartridge.
HLGB-10307-01
Nozzle Changer Teaching
Click in an order of MANUAL menu
AXIS MOTION tab XY button.
Click the Jog Move button in the move
mode.
Press the cursor key to move the head
to a position where working is easily
performed.
After moving the head, click the
Return button to close the XY axis
screen.
HLGB-10307-01
Nozzle Changer Teaching
Click in an order of M/C SETUP
menuMOTION SETUP tab
Nozzle changer tab.
Click the Teaching button of <Batch
teaching>.
Make sure the pickup check camera moves up.
When the small gear is turned, the notch of the
jig nozzle faces inward of the system.
