HLGB-10308-01 Pickup Check Camera Calibration “ ” “ ” “ ”
HLGB-10308-01
Pickup Check Camera Calibration
Perform this working on both heads on the front side and rear side.
[Necessary jigs]
Calibration data FD
Calibration plate jig
Jig positioning pin
Pickup check resolution inspection jig B
Length reference nozzle jig
[Procedure]
Click the Pickup Camera Calibration
button on the CALIBRATION screen.
HLGB-10308-01
Pickup Check Camera Calibration
“ ”
“
”
“ ”
HLGB-10308-01
Pickup Check Camera Calibration

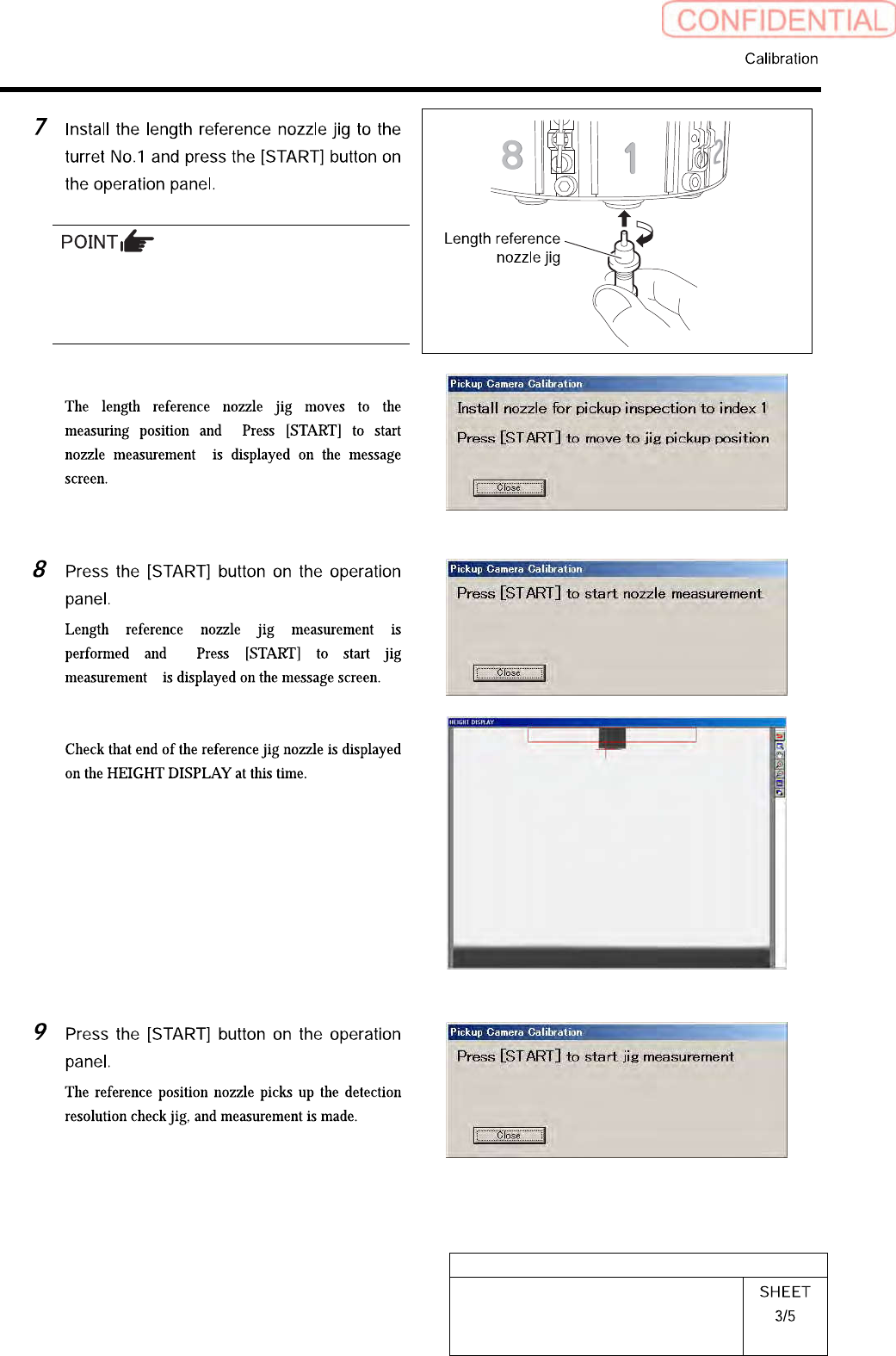

When installing the nozzle, insert it while
slowly turning.
After inserting the nozzle, check that it is not
drawn out by pulling downward.
“
”
“
”
