HLGB-10309-01 Calibration Data Edit “1 to 8” on the left row are I ndex No . Input transcription angle into the second row from the left. Input correction am ount in X direction in the third row from the l eft. ・ ・ － Inp…

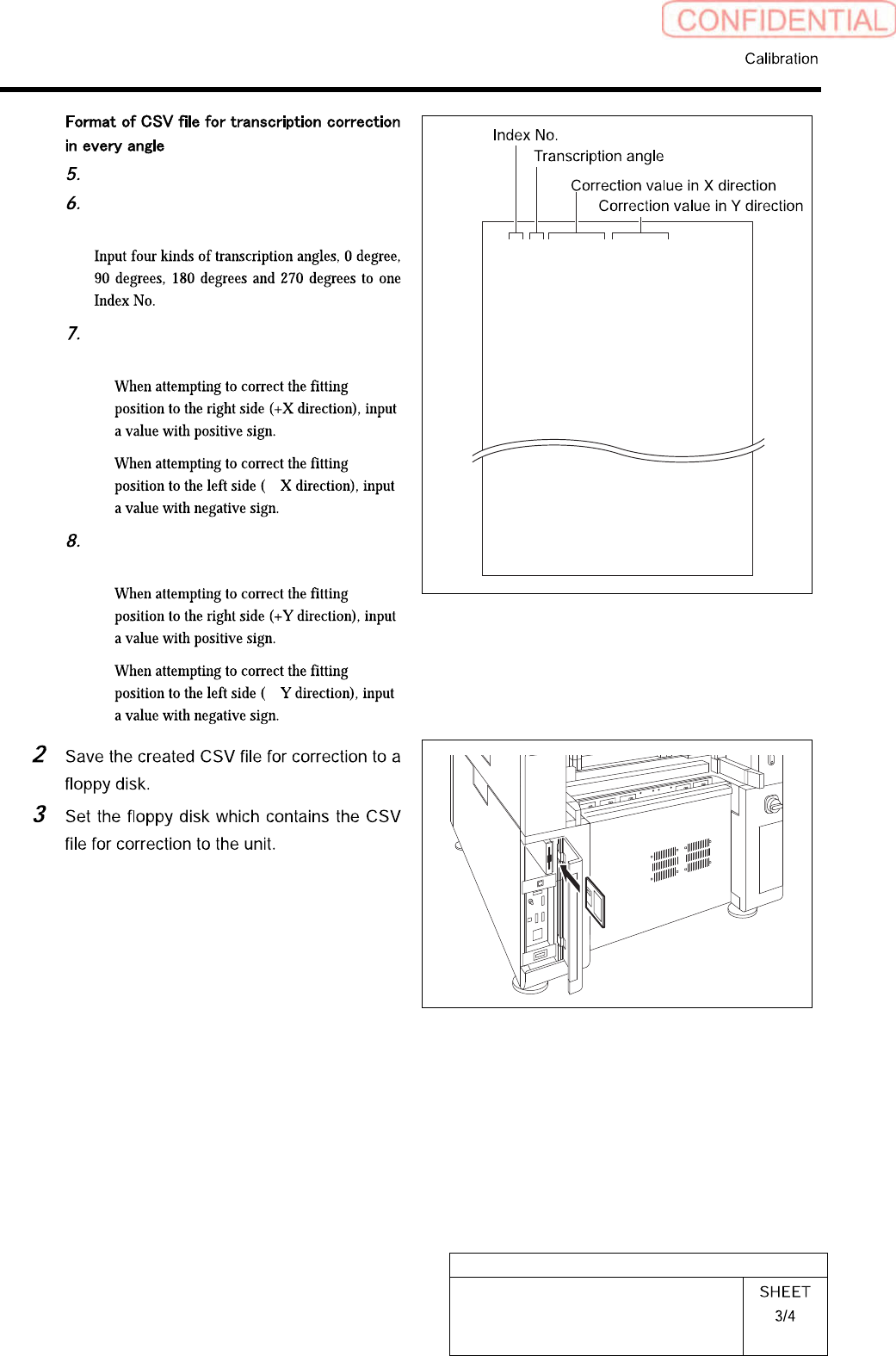

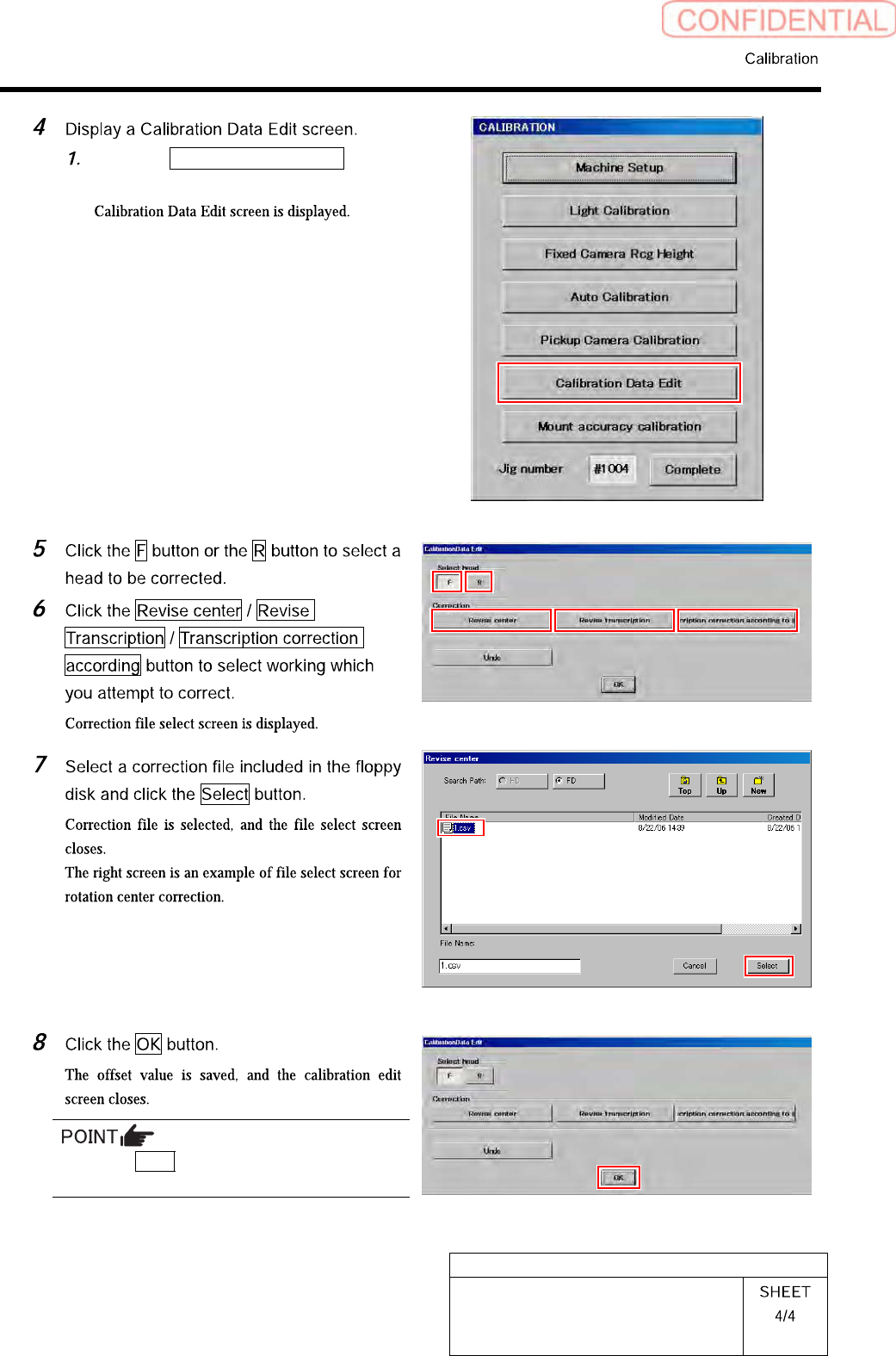

HLGB-10309-01
Calibration Data Edit
“1 to 8” on the left row are Index No.
Input correction amount in X direction
into the second row from the left.
・
・
－
Input correction amount in Y direction
in the third row from the left.
・
＋
・
－
Input angle correction value into the
rightmost row.
・
・
1,0.000,0.000,0.000
2,0.000,0.000,0.000
3,0.000,0.000,0.000
4,0.000,0.000,0.000
5,0.000,0.000,0.000
6,0.000,0.000,0.000
7,0.000,0.000,0.000
8,0.000,0.000,0.000
HLGB-10309-01
Calibration Data Edit
“1 to 8” on the left row are Index No.
Input transcription angle into the
second row from the left.
Input correction amount in X direction
in the third row from the left.
・
・
－
Input correction amount in Y direction
in the third row from the left.
・
・
－
1,0,0.000,0.000
1,90,0.000,0.000
1,180,0.000,0.000
1,270,0.000,0.000
2,0,0.000,0.000
2,90,0.000,0.000
2,180,0.000,0.000
2,270,0.000,0.000
8,0,0.000,0.000
8,90,0.000,0.000
8,180,0.000,0.000
8,270,0.000,0.000
HLGB-10309-01
Calibration Data Edit
Click the Calibration Data Edit button
on the CALIBRATION screen.
Press the Undo button, then you can return to
previous one calibration data.
