HLGB-1031 1- 01 Pickup Position Setup [H Position Dat a T eaching] Click the H button on the front and cassette position whole teaching screen. Click the Jog Move button. Press the downward curs or key to lower the H axi…
HLGB-10311-01
Pickup Position Setup
HLGB-10311-01
Pickup Position Setup

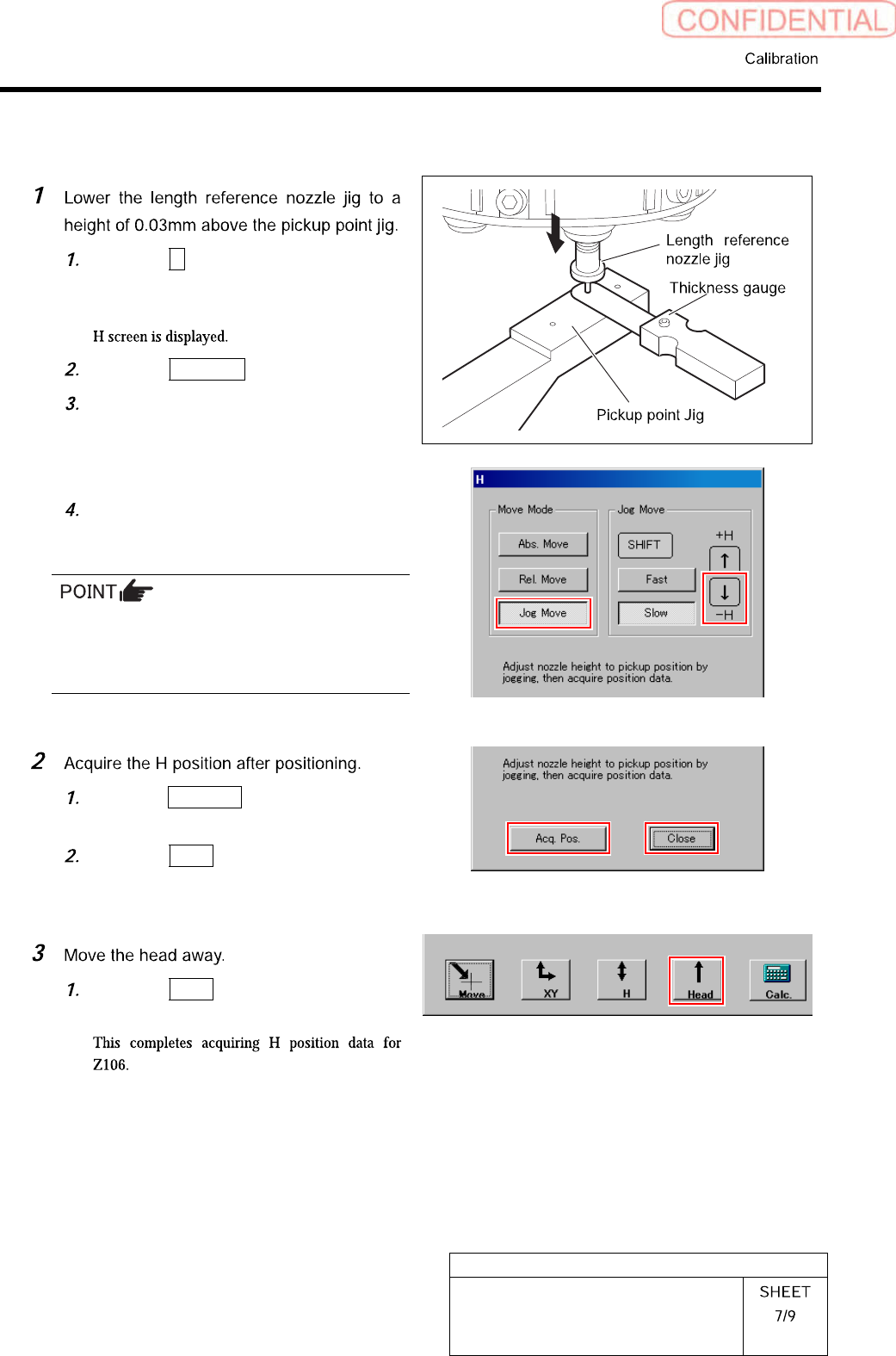

[H Position Data Teaching]
Click the H button on the front and
cassette position whole teaching
screen.
Click the Jog Move button.
Press the downward cursor key to
lower the H axis until the gap between
the length reference nozzle jig and
pickup point jig becomes 0.03mm.
Check that thickness gauge of 0.03mm
is inserted into the gap, and thickness
gauge of 0.04mm is not inserted.
・ Use a thickness gauge with the same
thickness as the “spacer thickness” input in
the Front/All Cass. Pos. Teaching by Tools
screen.
Click the Acq. Pos. button on the H
screen to acquire H position of Z106.
Click the Close button to close H
screen.

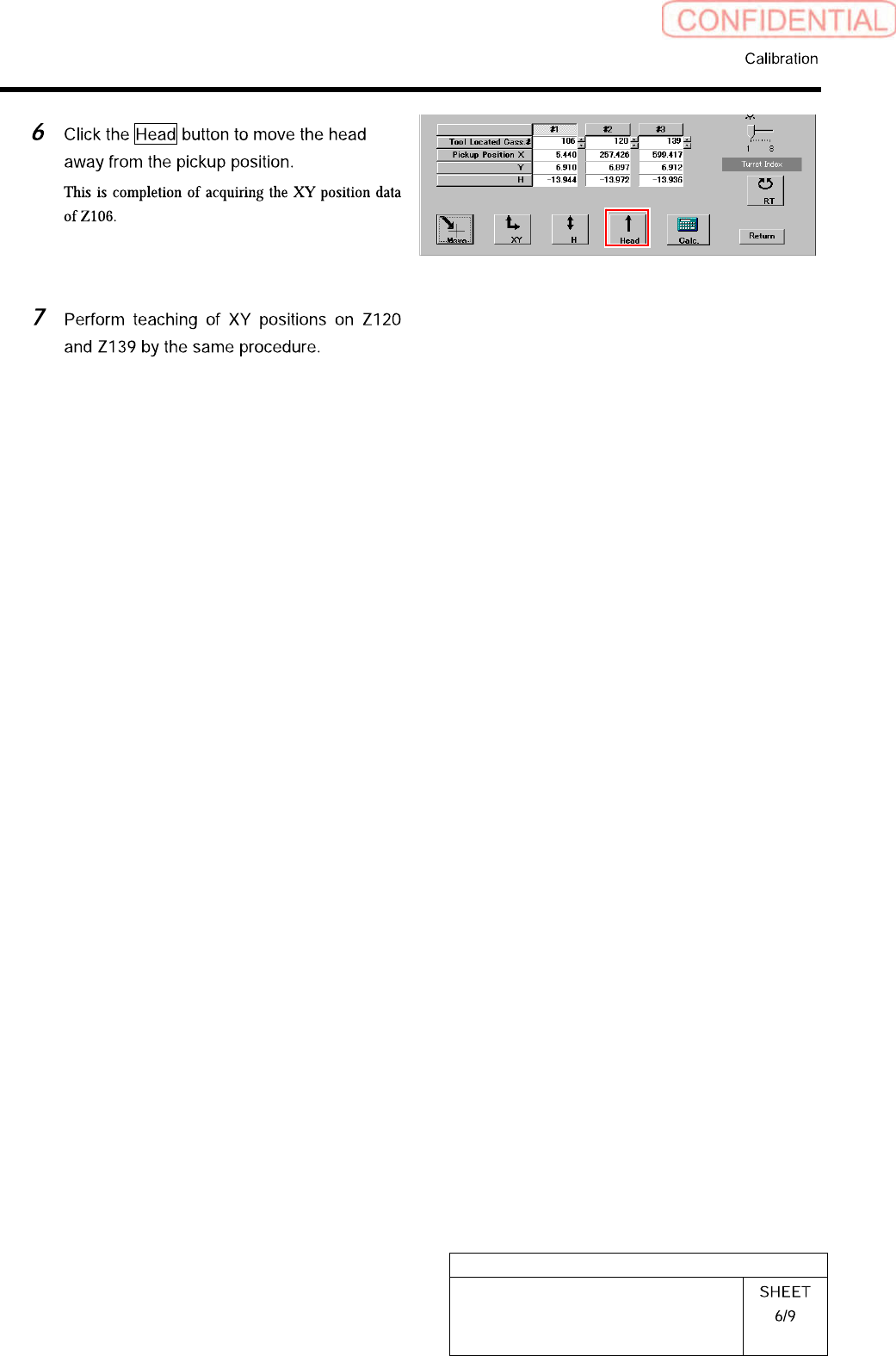

Click the Head button to move the
head away from the pickup position.
HLGB-10311-01
Pickup Position Setup

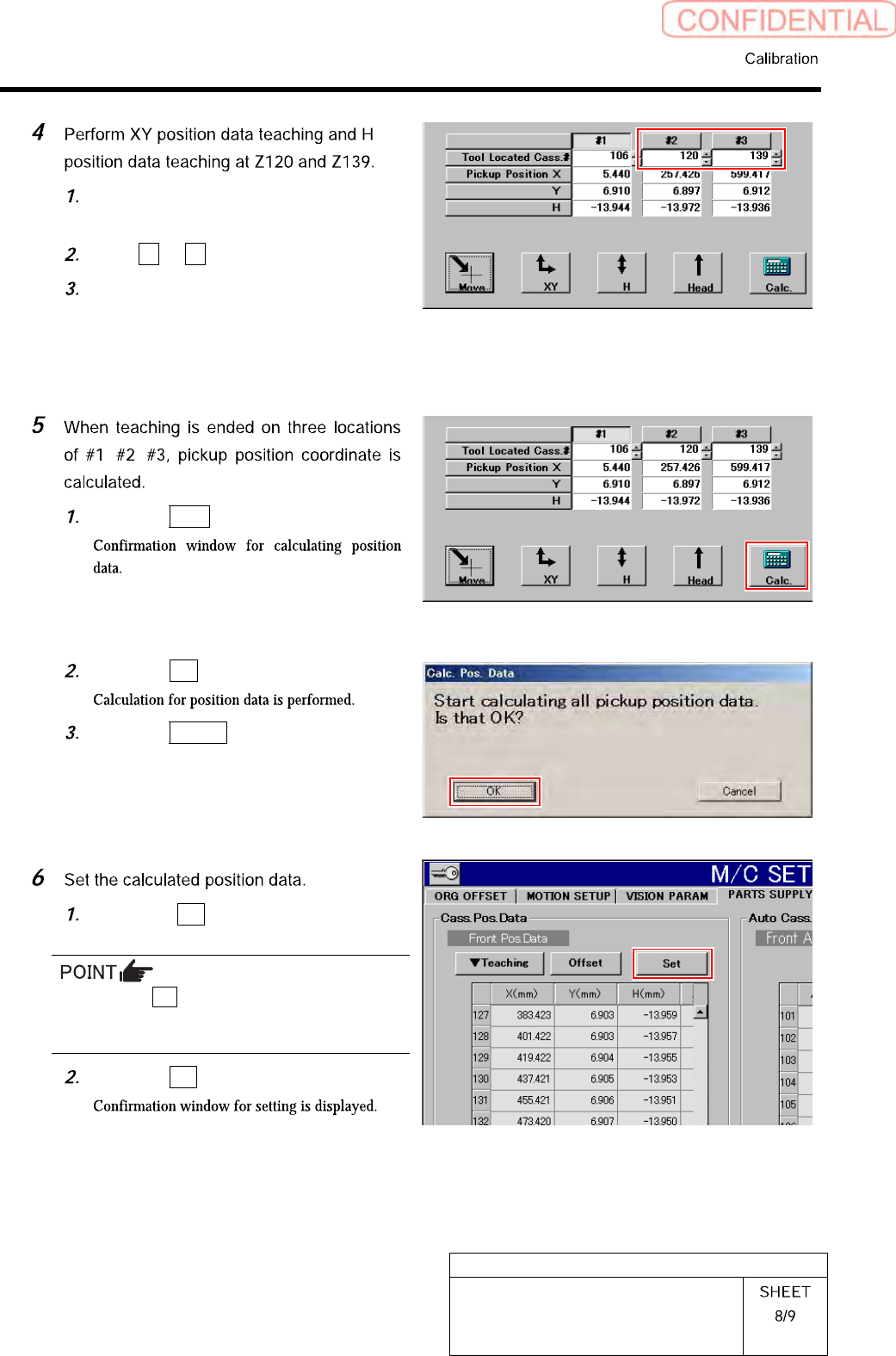

Move the pickup point jig to the
positions of Z120 or Z139.
Click #2 or #3.
Acquire pickup position data of Z120
and Z139 in the same procedure as
those in the “XY Position Data
Teaching” and “H Position Data
Teaching” (procedure 1 to 3).
、 、
Click the Calc. button.
Click the OK button.
Click the Return button on the
Front/All Cass. Pos. Teaching by Tools
screen to close the screen.
Check the Set button for the Front
Pos. Data is displayed in blue letter.
Unless the Set button is displayed in blue,
position calculation is not performed. Again,
perform “Acq.Pos.” or “Calc.”.
Click the Set button.
