HLGB-1031 1- 01 Pickup Position Setup Click the Update button. Check that th e front position data value was updated.
HLGB-10311-01
Pickup Position Setup
Move the pickup point jig to the
positions of Z120 or Z139.
Click #2 or #3.
Acquire pickup position data of Z120
and Z139 in the same procedure as
those in the “XY Position Data
Teaching” and “H Position Data
Teaching” (procedure 1 to 3).
、 、
Click the Calc. button.
Click the OK button.
Click the Return button on the
Front/All Cass. Pos. Teaching by Tools
screen to close the screen.
Check the Set button for the Front
Pos. Data is displayed in blue letter.
Unless the Set button is displayed in blue,
position calculation is not performed. Again,
perform “Acq.Pos.” or “Calc.”.
Click the Set button.

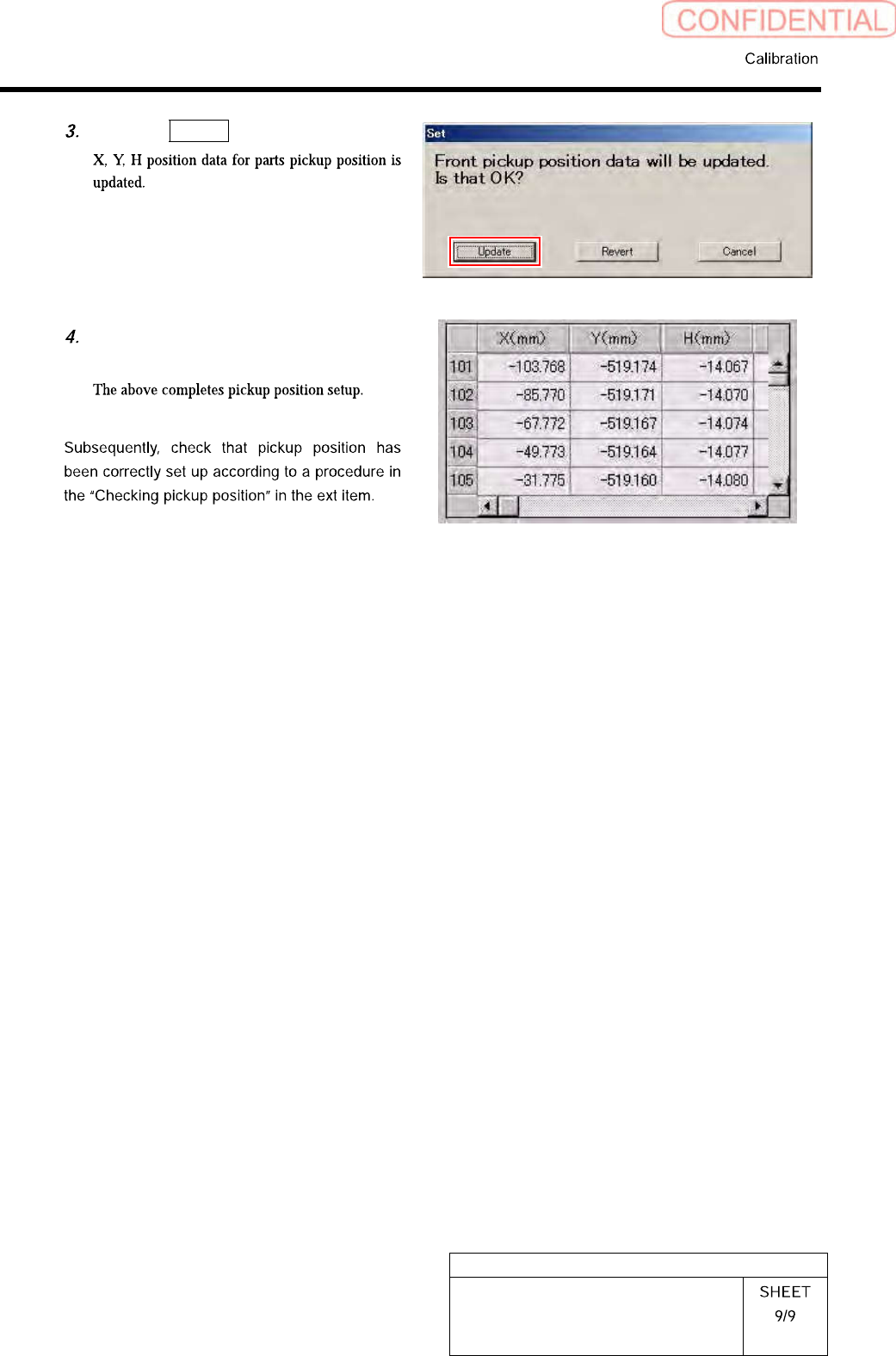

HLGB-10311-01
Pickup Position Setup
Click the Update button.
Check that the front position data
value was updated.

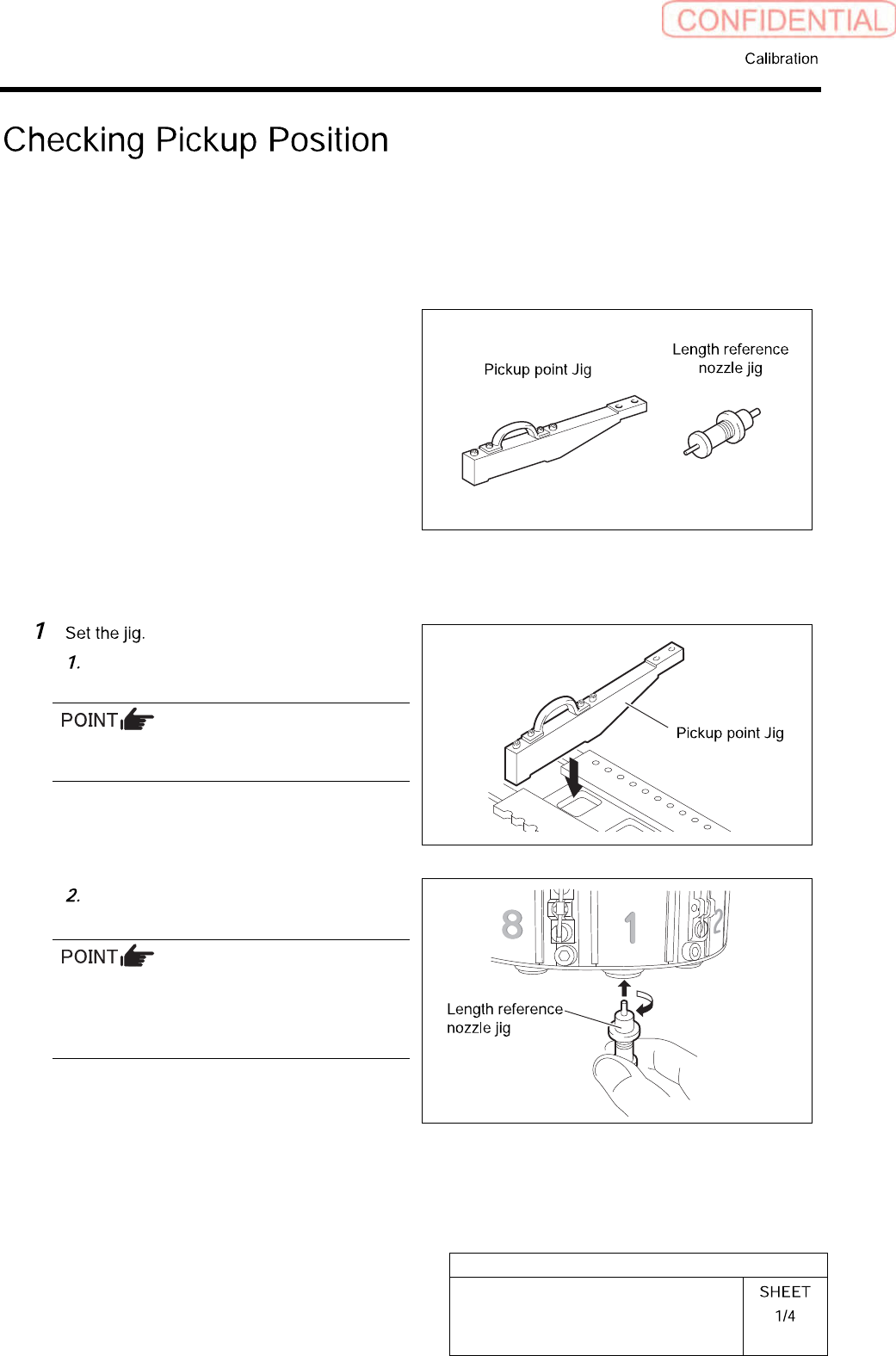

HLGB-10312-01
Checking Pickup Position
Check pickup positions at three locations of cassette tables (Z101、Z120、Z140) on the front side, and
three locations of cassette tables (Z101、Z120、Z140) on the rear side.
[Necessary jigs]
• Pickup point Jig
• Length reference nozzle jig
[Procedure]
Set pickup point jig to Z101 on the
cassette table.
There should be no gap between the feed
adjusting jig and the cassette table.
Install the length reference nozzle jig
to the turret No.1.
When installing the nozzle, insert it while
slowly turning.
After inserting the nozzle, check that it is not
drawn out by pulling downward.
