HLGB-10313-01 Mount A ccuracy Calibration [T ranscription calibration] “ ” T o execute the calibration for the rear head, select “1005C transCalibrationRear .PW4”. Click in an order of AUTO menu ST A TUS tab … button…
HLGB-10313-01
Mount Accuracy Calibration
HLGB-10313-01
Mount Accuracy Calibration

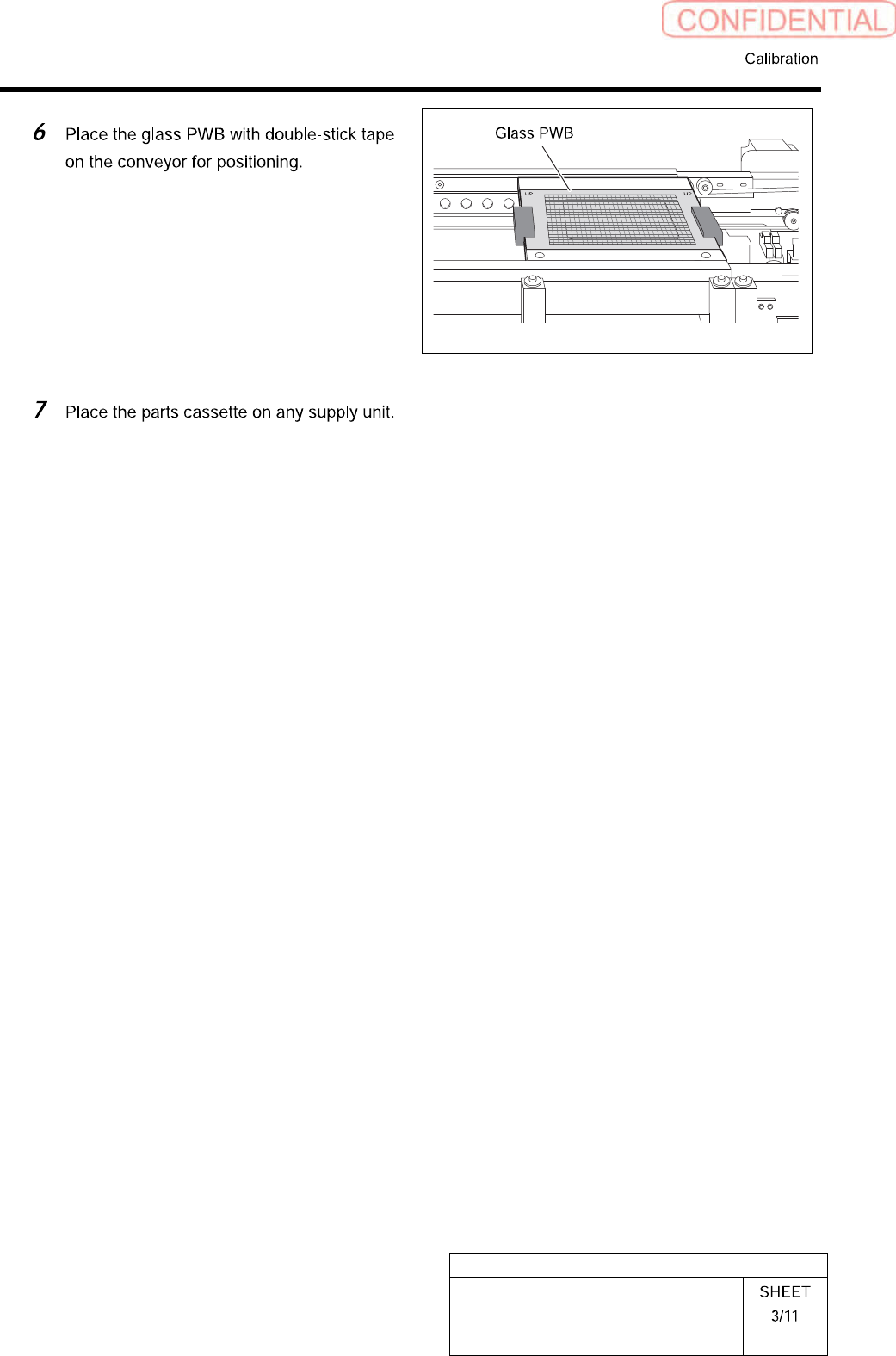

[Transcription calibration]
“ ”
To execute the calibration for the rear head, select “1005C transCalibrationRear.PW4”.

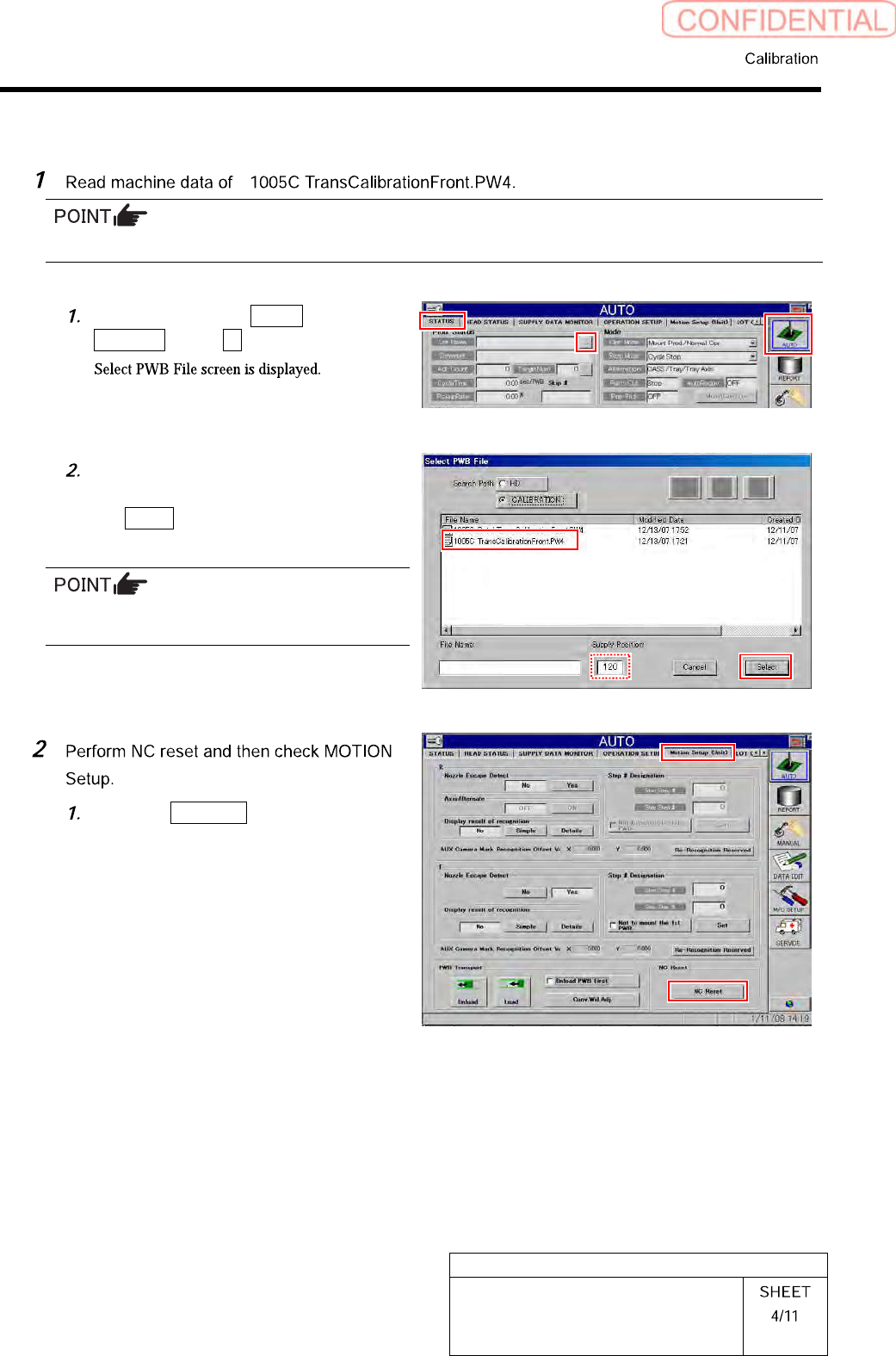

Click in an order of AUTO menu
STATUS tab … button.
Select the “1005C
TransCalibrationFront.PW4” and click
the Select button.
In the Supply Position field, enter the supply
unit number on which you placed the cassette.
Click the NC Reset button on the
MOTION Setup (Unit) screen.
HLGB-10313-01
Mount Accuracy Calibration

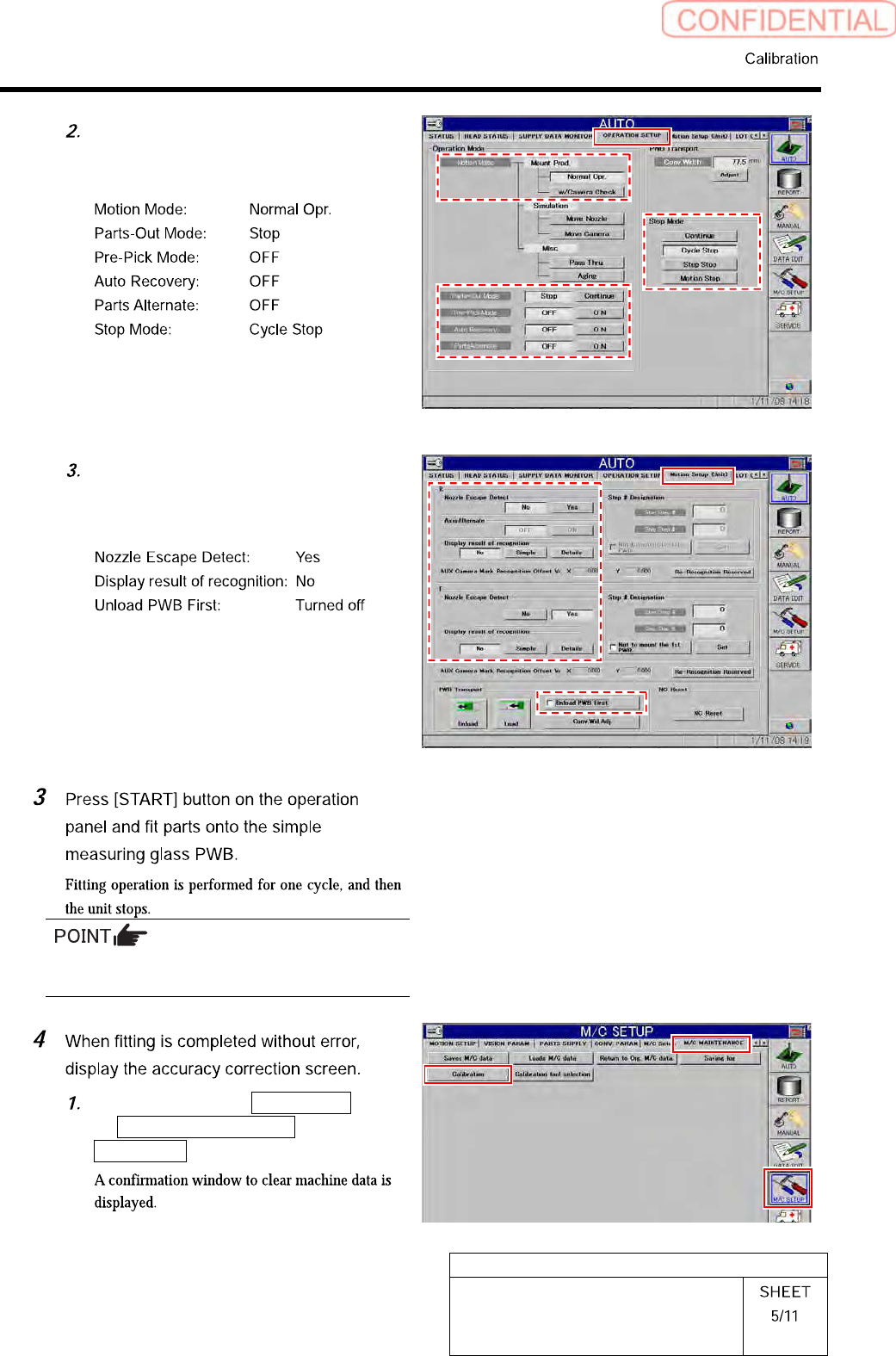

Display OPERATION SETUP to check
that settings are as follows.
Display Motion Setup (Unit) screen to
check that settings are as follows.
Make sure the wrong pickup or pickup error
does not occur.
Click in an order of M/C SETUP menu
M/C MAINTENANCE tab
Calibration button.
