HLGB-10314-01 XY Axis Soft w are Limit Setup Unche c k “Read-only” on the Properties window of the ac_ p aram.in i file. Click the OK button. Open Notepad by th e ac_param.ini file. Input the values calcu l ated in the p…
HLGB-10314-01

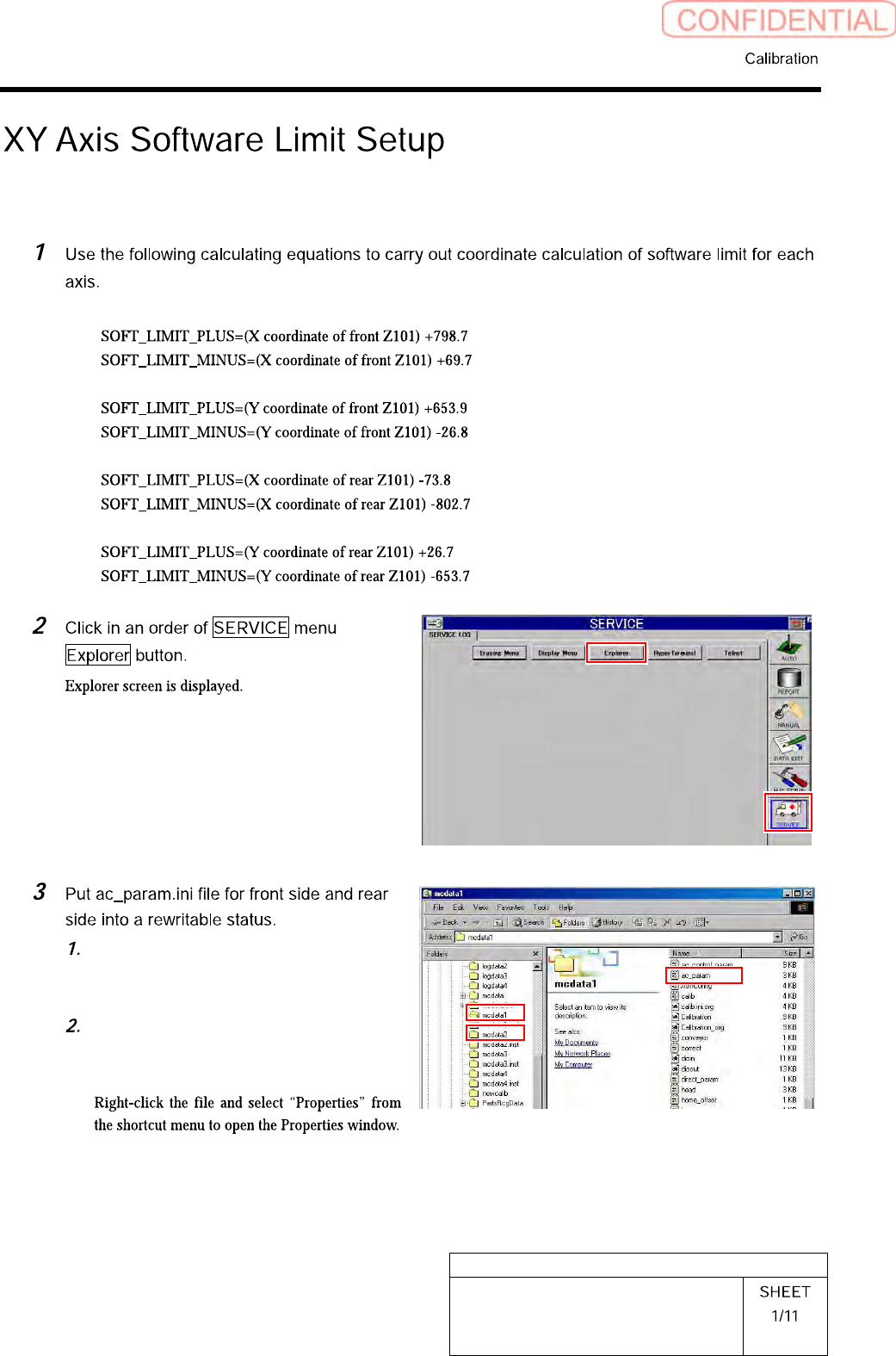

XY Axis Software Limit Setup
[Setup procedure]
FrontsideX-Axis
FrontsideY-Axis
RearsideX-Axis
RearsideY-Axis
For the front side, open Properties
window for ac_param.ini file in
C:¥asm¥mcdata1.
For the rear side, open Properties
window for ac_param.ini file in
C:¥asm¥mcdata2.
HLGB-10314-01
XY Axis Software Limit Setup

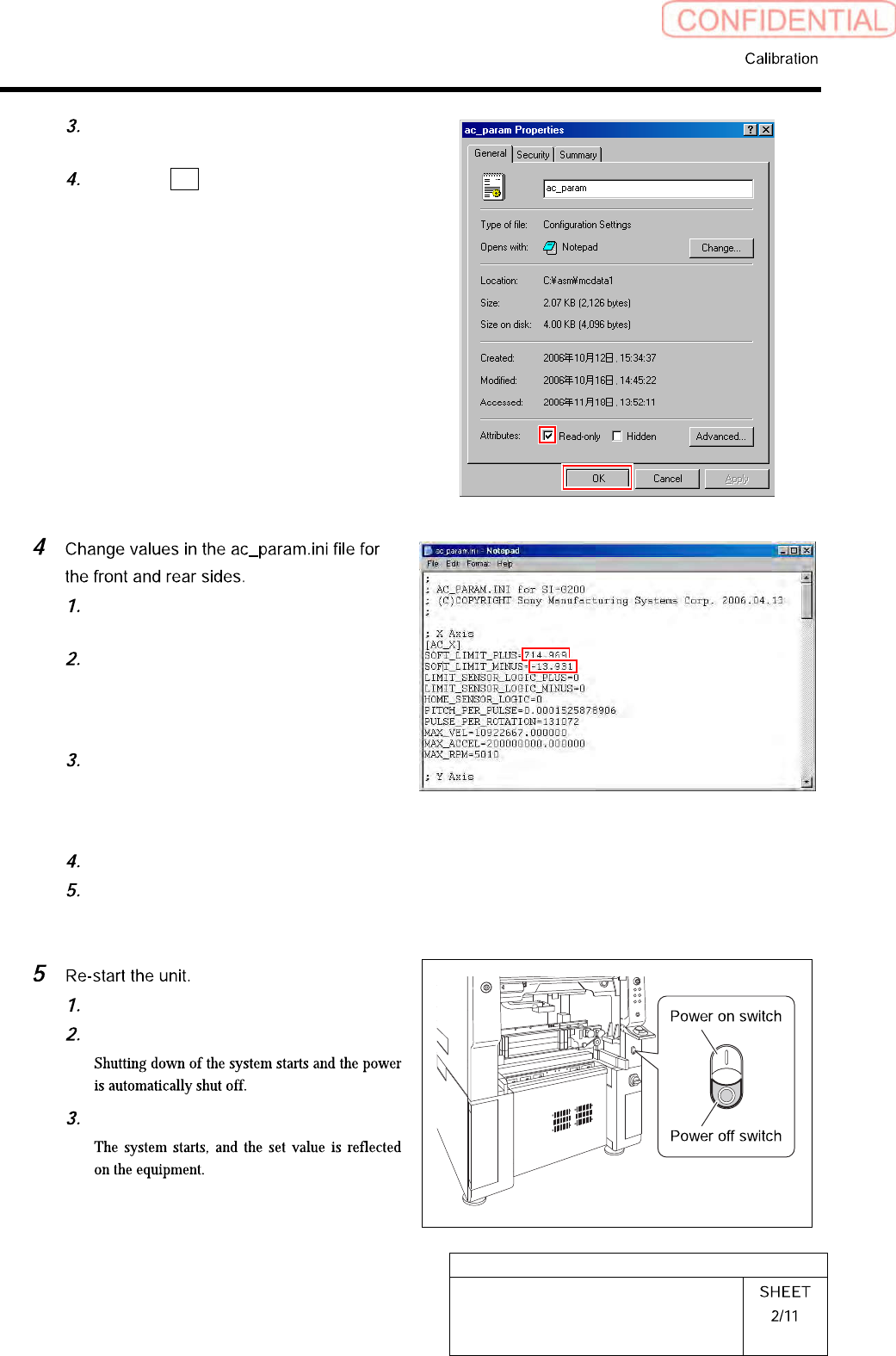

Uncheck “Read-only” on the Properties
window of the ac_param.ini file.
Click the OK button.
Open Notepad by the ac_param.ini
file.
Input the values calculated in the
procedure 1 into spaces of
“SOFT_LIMIT_PLUS” and
“SOFT_LIMIT_MINUS” of [AC_X].
Similarly, input the values calculated
in the procedure 1 into spaces of
“SOFT_LIMIT_PLUS” and
“SOFT_LIMIT_MINUS” of [AC_Y].
Save the ac_param.ini file and end.
Open the Properties window of the
ac_param.ini file, and check the
“Read-only”.
Close the explorer window.
Press the power off switch.
Press the power on switch.
HLGB-10314-01
XY Axis Software Limit Setup

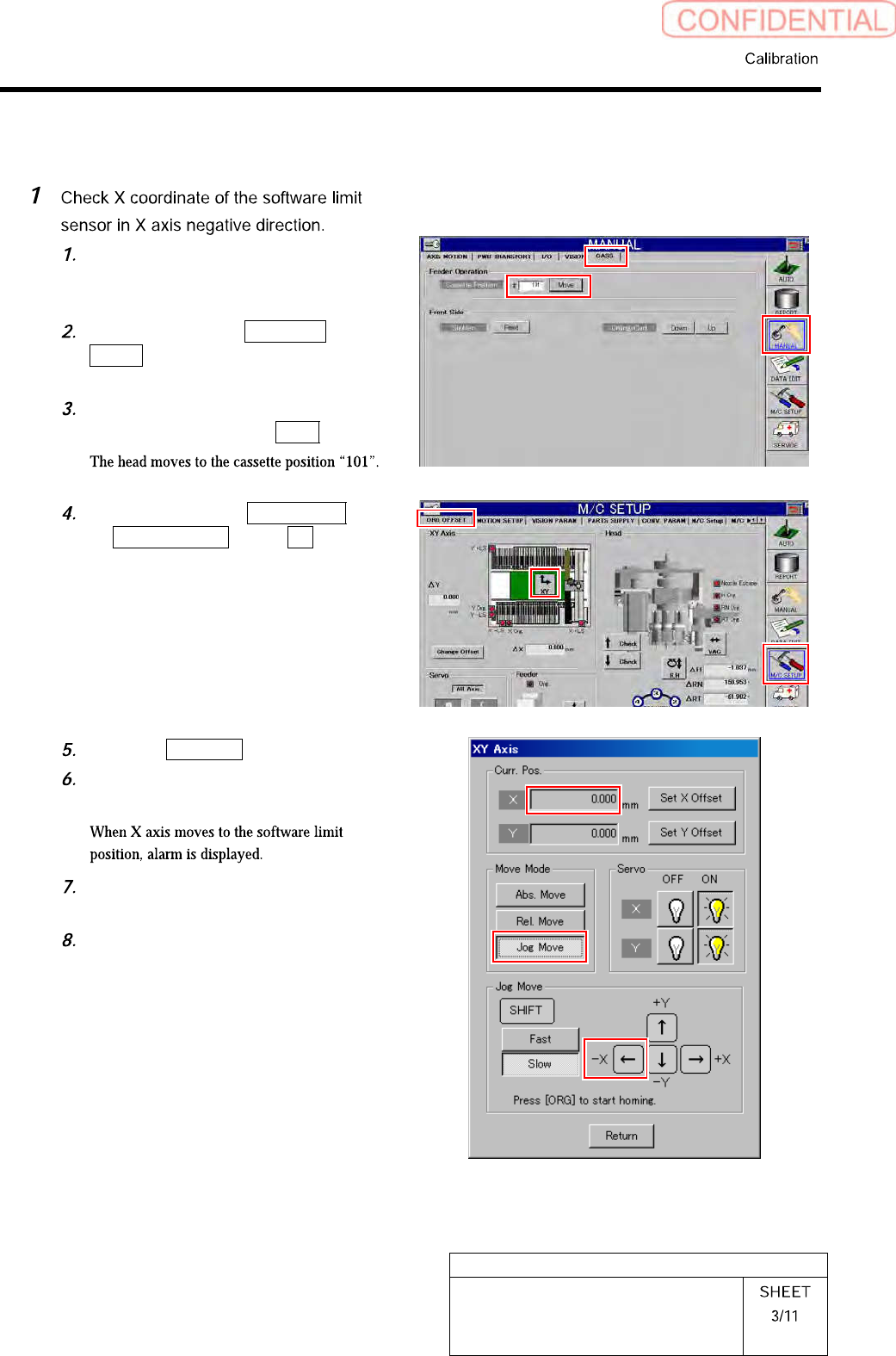

[Front side software limit checking procedure]
Press the [ORG] button on the
operation panel to perform origin
position return.
Click in an order of MANUAL menu
CASS. tab.
Cassette operation screen is displayed.
Input “101” into the cassette position
input box and click the Move button.
Click in an order of M/C SETUP menu
ORG OFFSET tab XY button.
XY Axis screen is displayed.
Click the Jog Move button.
Press the left cursor to jog-move X axis
in negative direction.
Press the [RESET] button on the
operation panel to cancel the alarm.
Check that the present position of X
axis displayed on the operation screen
of XY axis is same as the value
calculated in the setup procedure 1.
