HLGB-10314-01

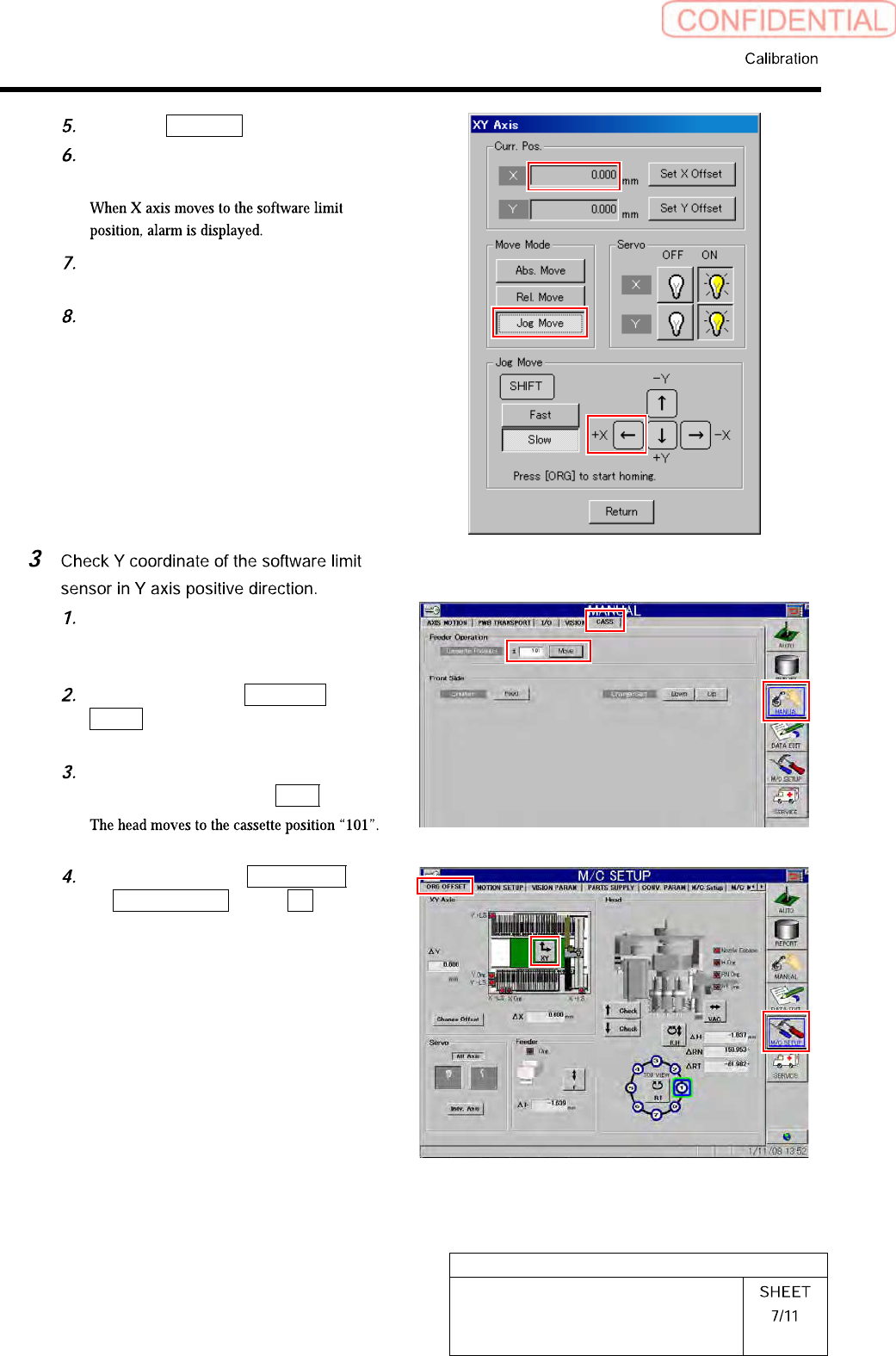

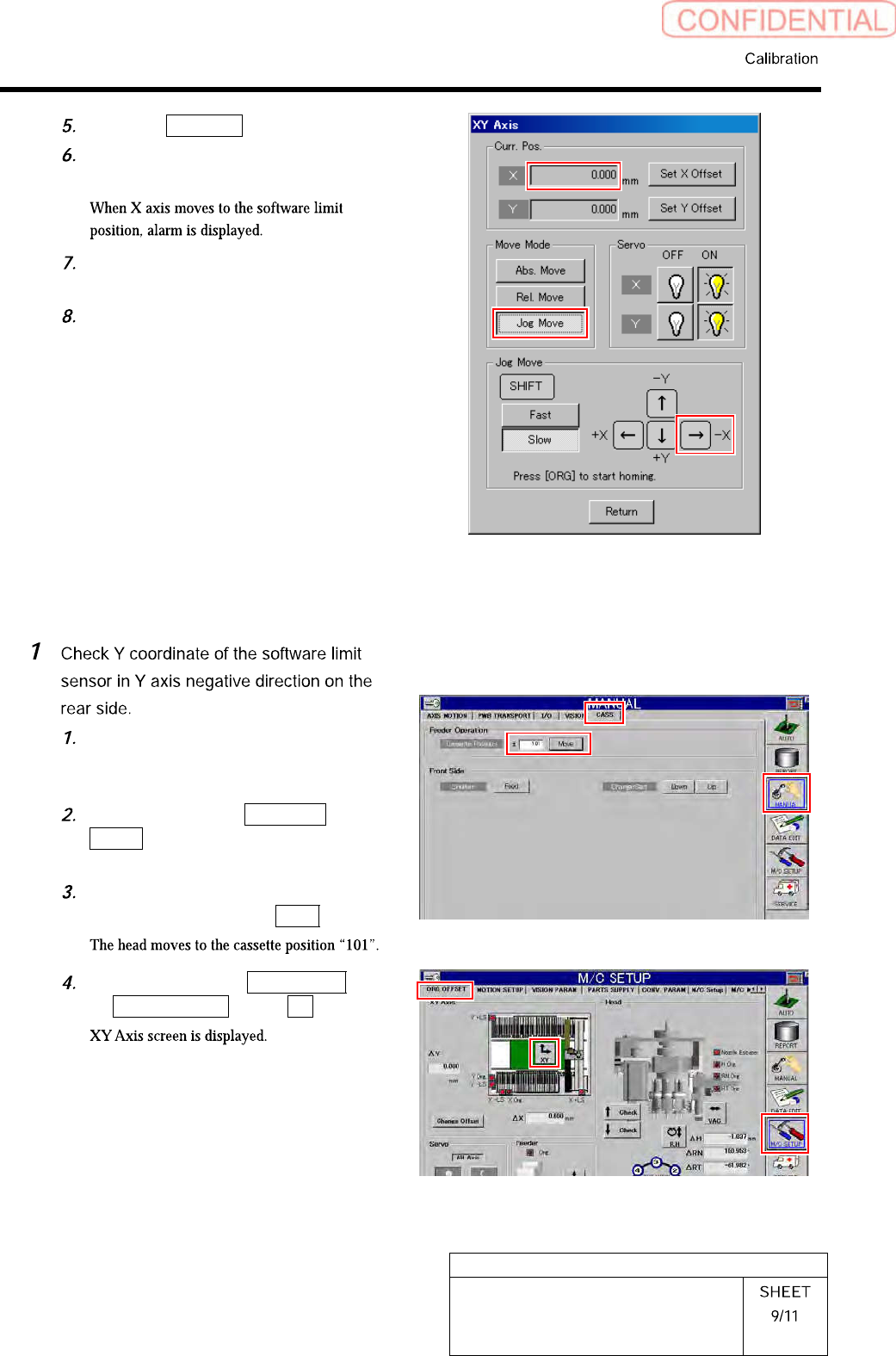

XY Axis Software Limit Setup
Click the Jog Move button.
Press the right cursor to jog-move X
axis in positive direction.
Press the [RESET] button on the
operation panel to cancel the alarm.
Check that the present position of X
axis displayed on the operation screen
of XY axis is same as the value
calculated in the setup procedure 1.
Press the [ORG] button on the
operation panel to perform origin
position return.
Click in an order of MANUAL menu
CASS. tab.
Cassette operation screen is displayed.
Input “101” into the cassette position
input box and click the Move button.
Click in an order of M/C SETUP menu
ORG OFFSET tab XY button.
XY Axis screen is displayed.
HLGB-10314-01
XY Axis Software Limit Setup
Click the Jog Move button.
Press the lower cursor to jog-move Y
axis in positive direction.
Press the [RESET] button on the
operation panel to cancel the alarm.
Check that the present position of Y
axis displayed on the operation screen
of XY axis is same as the value
calculated in the setup procedure 1.
Press the [ORG] button on the
operation panel to perform origin
position return.
Click in an order of MANUAL menu
CASS. tab.
Cassette operation screen is displayed.
Input “140” into the cassette position
input box and click the Move button.
Click in an order of M/C SETUP menu
ORG OFFSET tab XY button.
XY Axis screen is displayed.
HLGB-10314-01
XY Axis Software Limit Setup
Click the Jog Move button.
Press the right cursor to jog-move X
axis in negative direction.
Press the [RESET] button on the
operation panel to cancel the alarm.
Check that the present position of X
axis displayed on the operation screen
of XY axis is same as the value
calculated in the setup procedure 1.
[Front and rear collide side software limit checking procedure]
Press the [ORG] button on the
operation panel to perform origin
position return.
Click in an order of MANUAL menu
CASS. tab.
Cassette operation screen is displayed.
Input “101” into the cassette position
input box and click the Move button.
Click in an order of M/C SETUP menu
ORG OFFSET tab XY button.
