HLGB-10412-01 Nozzle Height Adjustment Slightly loosen the bolts fixing th e B head h o using . Insert a height adj usting spacer into the gap above th e B head hous ing. T ighten the bolts on the B head housing, and che…
HLGB-10412-01
Nozzle Height Adjustment
Click in an order of MANUAL menu
AXIS MOTION tab XY button.
Click the Jog Move button.
Press the cursor key to jog-move the
reference jig nozzle to vicinity of center
of the calibration plate.
Click the Return button to close XY
axes screen.
If the Shift key on the keyboard is pressed,
Fast/Slow for Jog Move can be switched.
Place a head height adjusting block
under the reference jig nozzle.
Check that lower face of the head
height adjusting block is inserted
between the calibration plate and
reference jig nozzle.
Check that higher face of the head
height adjusting block is not inserted
between the calibration plate and
reference jig nozzle.
HLGB-10412-01
Nozzle Height Adjustment
Slightly loosen the bolts fixing the B
head housing.
Insert a height adjusting spacer into
the gap above the B head housing.
Tighten the bolts on the B head
housing, and check clearance between
the calibration plate and reference jig
again.

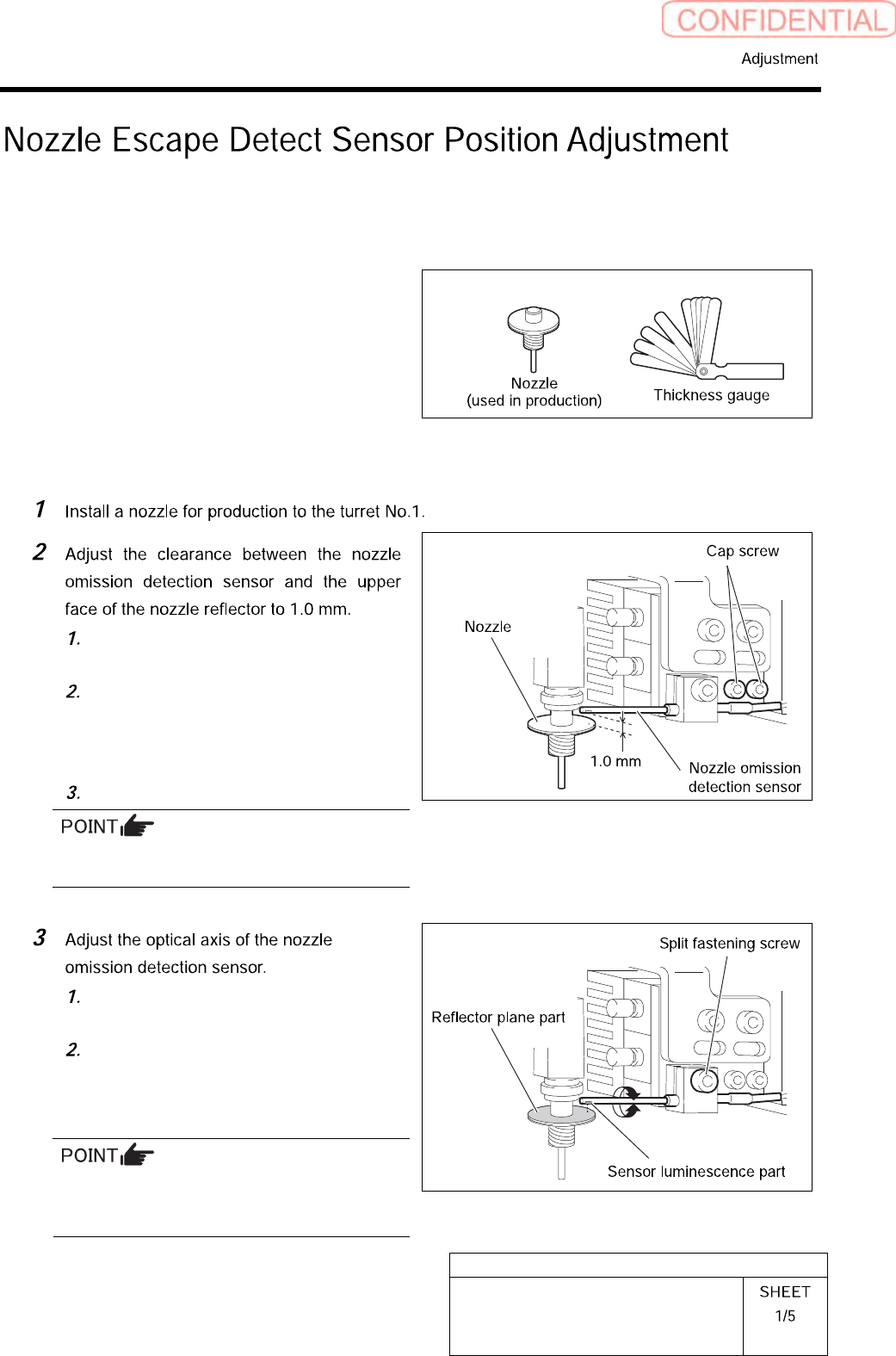

HLGB-10413-01
Nozzle Escape Detect Sensor
Position Adjustment
Perform this working on both heads on the front side and rear side.
[Necessary jigs]
• Nozzle (used in production)
• Thickness gauge
[Procedure]
Loosen the cap screw for the nozzle
omission detection sensor.
Adjust with thickness gauge so that
clearance between the end of the nozzle
omission detection sensor and the
upper face of the reflector is 1.0 mm.
Tighten the cap screw.
Fiber sensor is used in the nozzle omission
detection sensor.
Loosen the split fastening screw fixing
the nozzle omission detection sensor.
Turn the nozzle omission detection
sensor to adjust so that the sensor
luminescence part is directed to
reflector plane of the nozzle.
Optical axis can be easily adjusted by slightly
widening the split fastening part of the bracket
using flat end screwdriver.
