HLGB-10417-01
Adjustment of Cassette Float Sensor
Height
Check that there’s no gap between the
cassette table and support column
mounting face.
Thickness gauge of t=0.02should not be
inserted between the mounting faces.
Loosen the cap screws (2-M4) on the
attachment bracket for the cassette
float sensors (left side: BS-63R, right
side: BS-63T) installed in the vertical
frame of the base stand.
Pull the bracket up to the upper end
and temporarily fasten.
There should be no gap between the feed
adjusting jig and the cassette table.
Adjust the BS-63R attachment bracket
position so that the LED for the
BS-63R lights up at a part of 5 mm on
the cassette float sensor height
adjusting jig, and the LED
extinguishes at a part of 6 mm.
Fasten the cap screw to fix the
attachment bracket.
Again, move the cassette float sensor
height adjusting jig back and forth to
check that the LED turns ON/OFF well.
HLGB-10417-01
Adjustment of Cassette Float Sensor
Height
Set the feed adjusting jig and cassette float sensor height adjusting jig on the position of
No.39 on the cassette table.
There should be no gap between the feed adjusting jig and the cassette table.
Adjust the height of the BS-63T attachment bracket in the same procedure as in the
procedure 7.
If the height is respectively adjusted at the positions of No.1, 20 and 39 on the cassette table, response
condition adjusted at the previous position varies. Be sure to check response of the sensor at the 3
locations after adjustment.
Remove the cassette float sensor adjusting jig and feed adjusting jig.
Remove the replacing carrier.

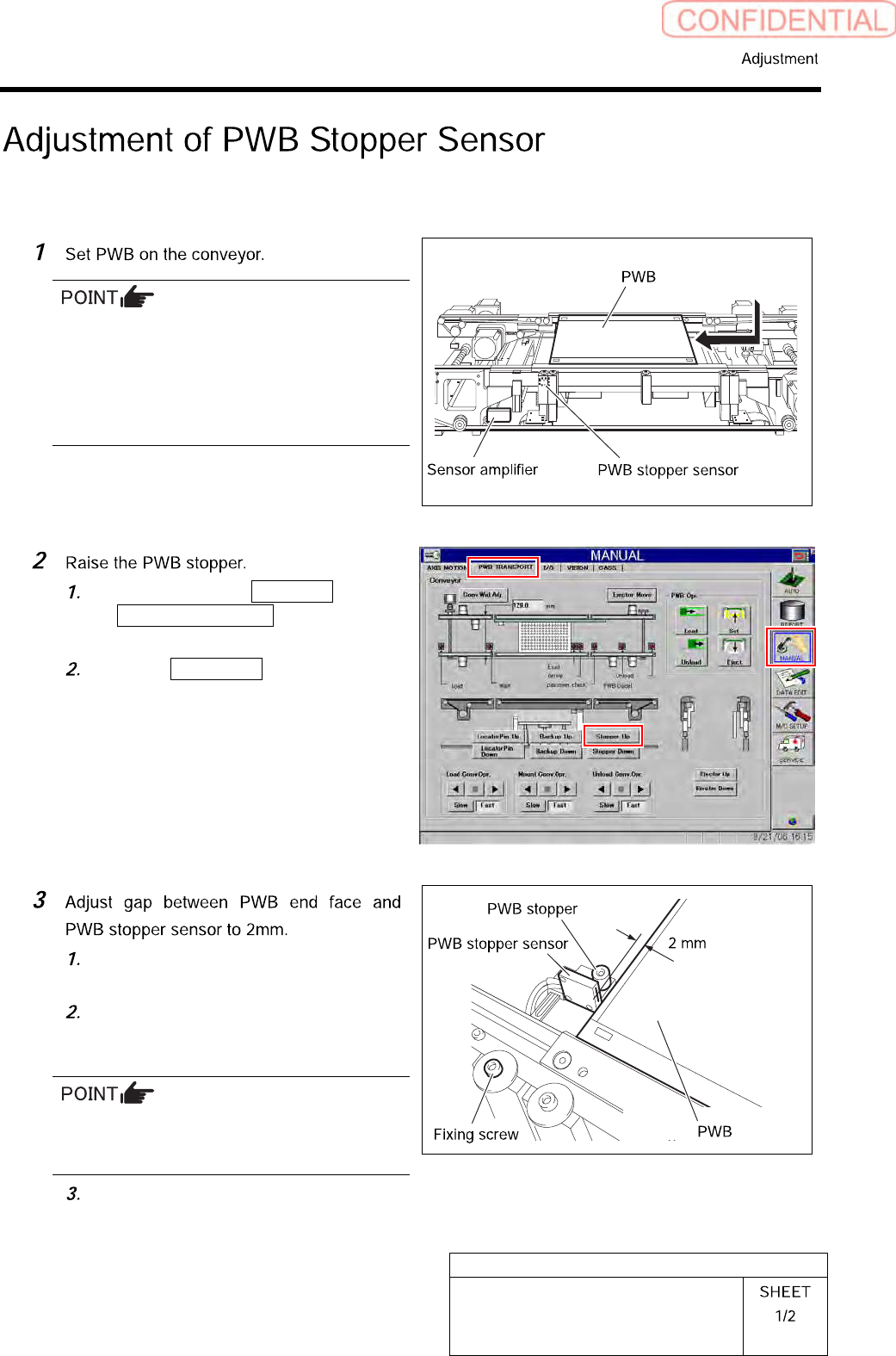

HLGB-10418-01
Adjustment of PWB Stopper Sensor
[Procedure]
Any PWB sized to be mountable on this
machine can be allowed.
Mountable PWB:
- Minimum PWB dimension: 50 x 50 mm
- Maximum PWB dimension: 460 x 360 mm
- PWB thickness: 0.5 to 2.6 mm
Click in an order of MANUAL menu
PWB TRANSPORT tab to open the
PWB TRANSPORT screen.
Click the Stopper Up button to raise
the PWB stopper.
Loosen the fixing screws for PWB
stopper sensor.
Adjust the position of the sensor so
that the gap between the PWB and the
PWB stopper sensor.
The gap can be easily adjusted by inserting a
hexagon wrench of 2 mm between the PWB and
the PWB stopper.
Tighten the fixing screws for the PWB
stopper sensor.
