HLGB-10418-01 Adjustment of PWB St op per Sensor Make adjustment by turning th e sensitivity adjustment volume of the sensor amplifier so that t he PWB stopper sensor is turned on (both o f the green LED and orange LED l…

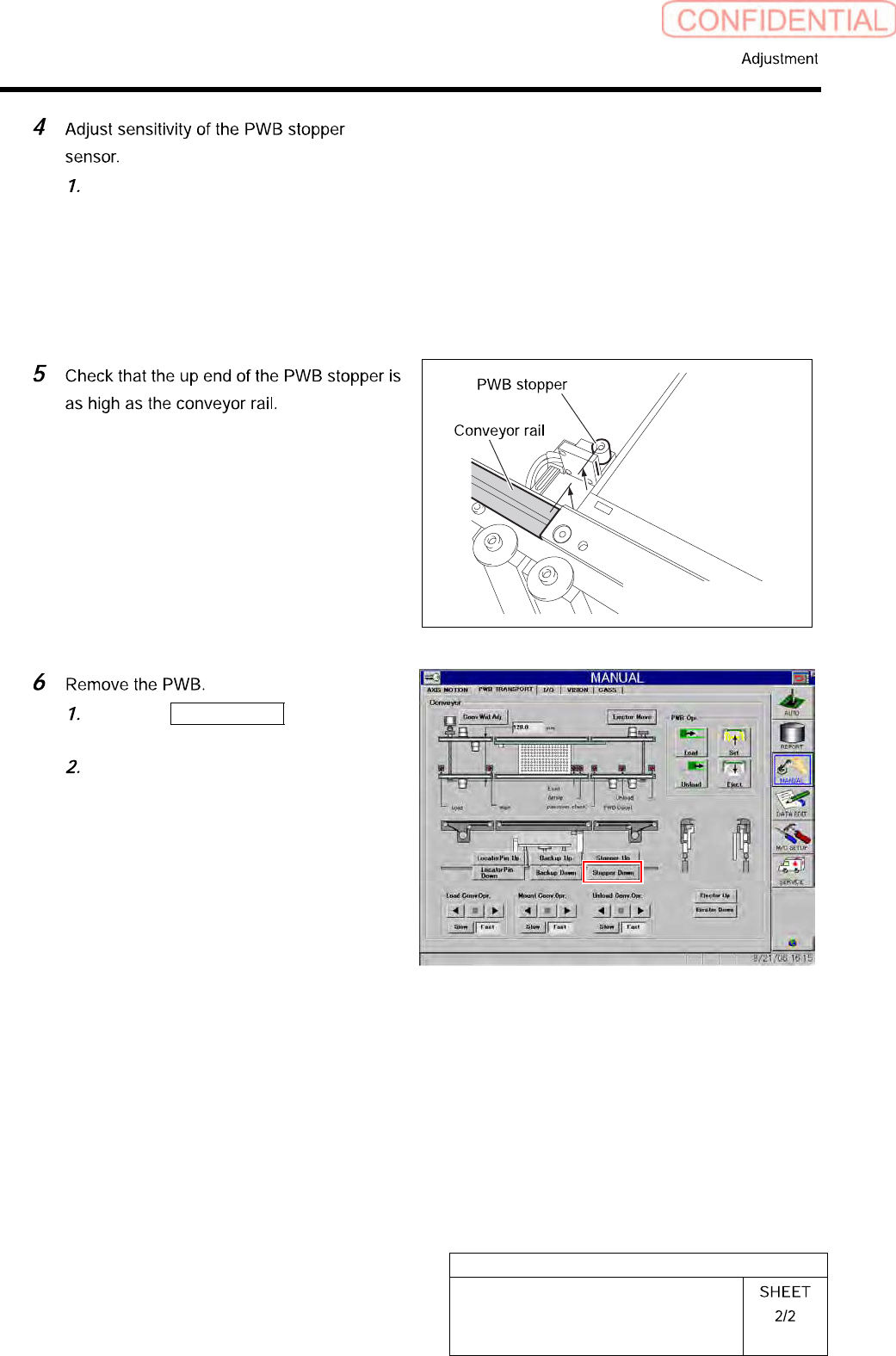

HLGB-10418-01
Adjustment of PWB Stopper Sensor
[Procedure]
Any PWB sized to be mountable on this
machine can be allowed.
Mountable PWB:
- Minimum PWB dimension: 50 x 50 mm
- Maximum PWB dimension: 460 x 360 mm
- PWB thickness: 0.5 to 2.6 mm
Click in an order of MANUAL menu
PWB TRANSPORT tab to open the
PWB TRANSPORT screen.
Click the Stopper Up button to raise
the PWB stopper.
Loosen the fixing screws for PWB
stopper sensor.
Adjust the position of the sensor so
that the gap between the PWB and the
PWB stopper sensor.
The gap can be easily adjusted by inserting a
hexagon wrench of 2 mm between the PWB and
the PWB stopper.
Tighten the fixing screws for the PWB
stopper sensor.
HLGB-10418-01
Adjustment of PWB Stopper Sensor
Make adjustment by turning the
sensitivity adjustment volume of the
sensor amplifier so that the PWB
stopper sensor is turned on (both of the
green LED and orange LED light up)
at this position.
Click the Stopper Down button to
lower the reference pin.
Remove the PWB on the conveyor.
HLGB-10419-01
Fixed Camera Pickup Check Sensor
Adjustment
Perform this operation for fixed camera pickup check sensors on both of front and rear sides.
[Necessary jigs]
Fixed camera Jig base (G200)
Nozzle Jig for fixed camera
Fixed camera parts presence/absence
sensor adjustment Jig
Sensor adjusting nozzle (1)/long thin
Sensor adjusting nozzle (2)/short thick
[Procedure]
Loosen screw (2-+T4x8) to remove the
lower cover.
Tile the lower cover slightly toward you and pull
the fan cable to remove the lower panel.
Loosen screw (2-+T4x8) to remove the
shooter.
