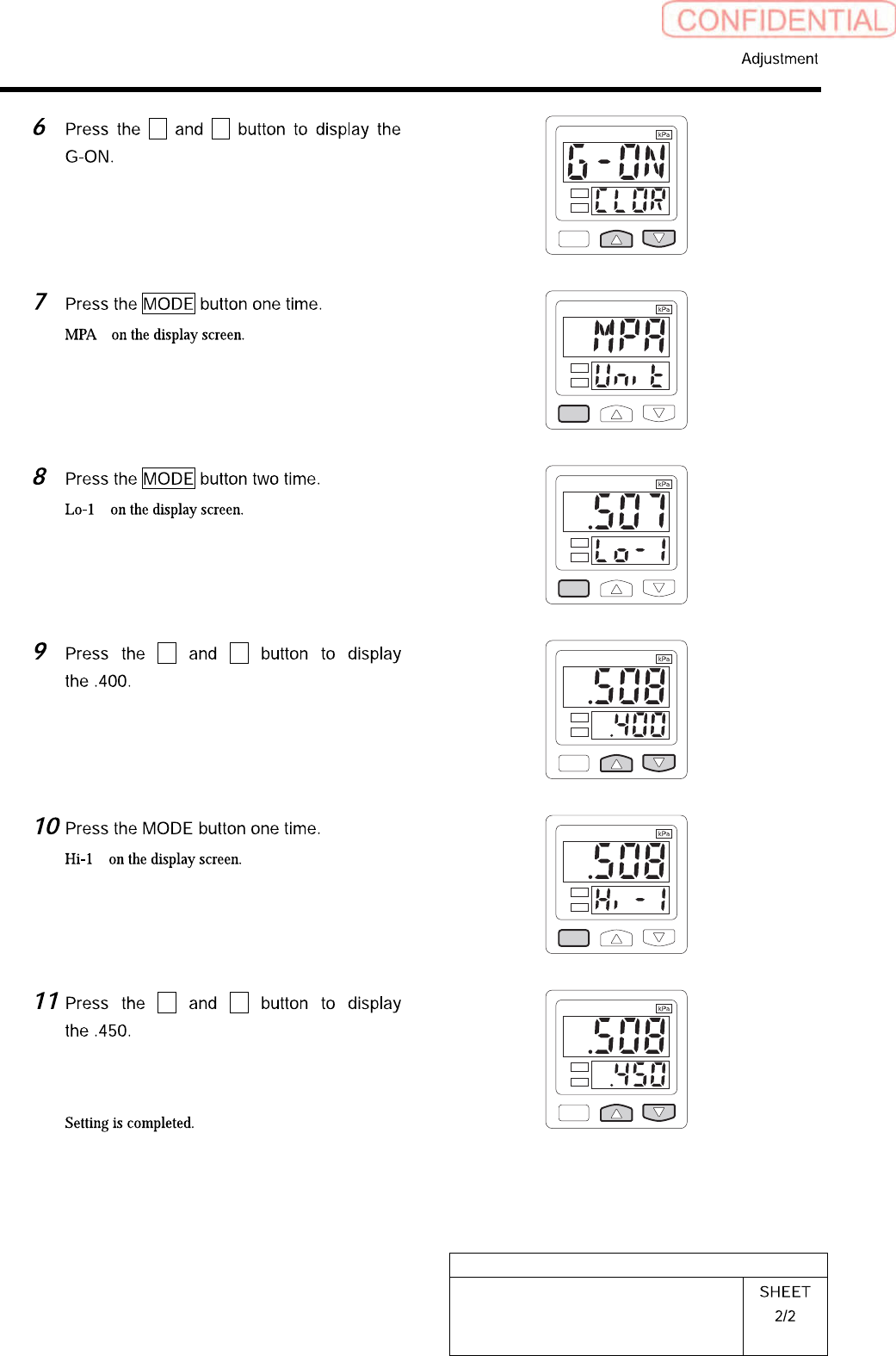

Supplied Air Sensor Setup
1
2
1
2
1
2
1
2
1
2
1
2
HLGB-10425-01
Adjustment and checking of H-axis
software limit
[Procedure]
For the front side, open Properties
window for ac_param.ini file in
C:¥asm¥mcdata1.
For the rear side, open Properties
window for ac_param.ini file in
C:¥asm¥mcdata2.
Uncheck “Read-only” on the Properties
window of the ac_param.ini file.
Click the OK button.
HLGB-10425-01
Adjustment and checking of H-axis
software limit
Open Notepad by the ac_param.ini
file.
Input “3.800” into a space of
“SOFT_LIMIT_PLUS” of [AC_H].
Input “- 30.00” into a space of
“SOFT_LIMIT_MINUS” of [AC_H].
Save the ac_param.ini file and end.
Open the Properties window of the
ac_param.ini file, and check the
“Read-only”.
Close the explorer window.
Press the power off switch.
Press the power on switch.
Click in an order of MANUAL menu
AXIS MOTION tab R.H button.
3.800
-30.00
