HLGB-10425-01 Adjustment and checking of H-axis soft ware lim it Open Notepad by th e ac_param.ini file. Input “3.800” into a s pace of “SOFT_LIMIT_PLUS” of [AC_ H]. Input “- 30.00” into a space of “SOFT_LIMIT_MINUS” of …
HLGB-10425-01
Adjustment and checking of H-axis
software limit

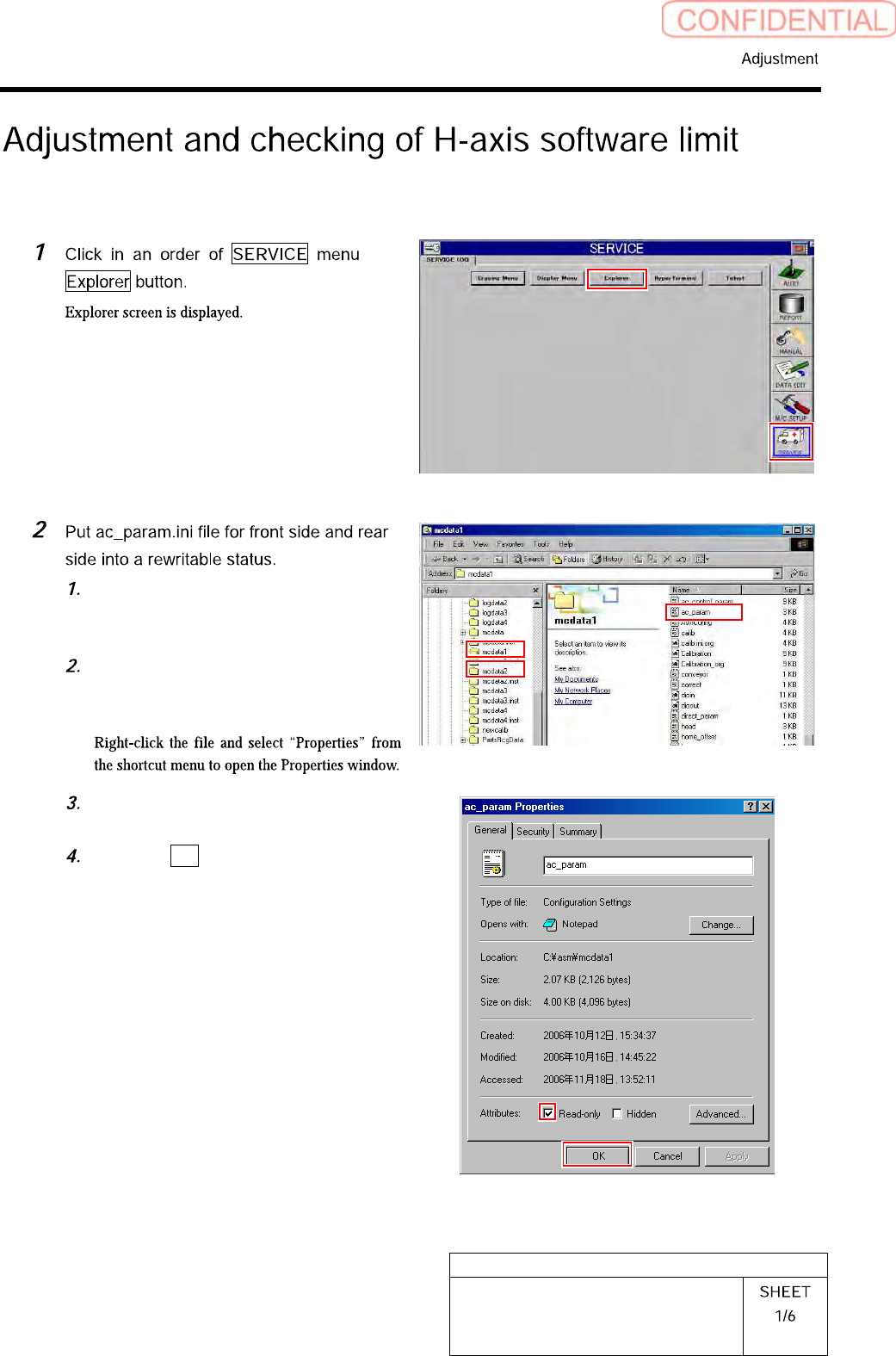

[Procedure]
For the front side, open Properties
window for ac_param.ini file in
C:¥asm¥mcdata1.
For the rear side, open Properties
window for ac_param.ini file in
C:¥asm¥mcdata2.
Uncheck “Read-only” on the Properties
window of the ac_param.ini file.
Click the OK button.
HLGB-10425-01
Adjustment and checking of H-axis
software limit

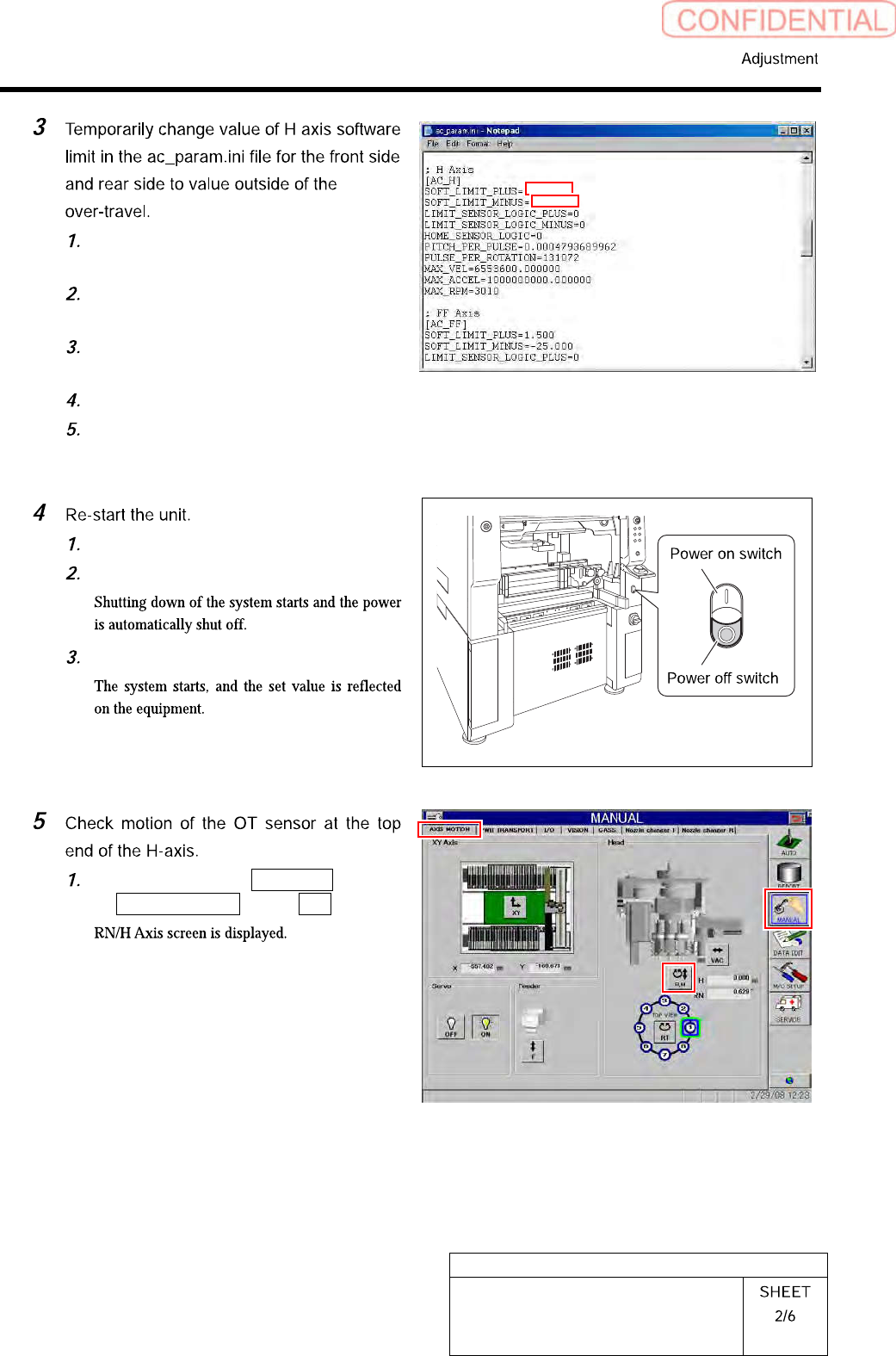

Open Notepad by the ac_param.ini
file.
Input “3.800” into a space of
“SOFT_LIMIT_PLUS” of [AC_H].
Input “- 30.00” into a space of
“SOFT_LIMIT_MINUS” of [AC_H].
Save the ac_param.ini file and end.
Open the Properties window of the
ac_param.ini file, and check the
“Read-only”.
Close the explorer window.
Press the power off switch.
Press the power on switch.
Click in an order of MANUAL menu
AXIS MOTION tab R.H button.
3.800
-30.00
HLGB-10425-01
Adjustment and checking of H-axis
software limit

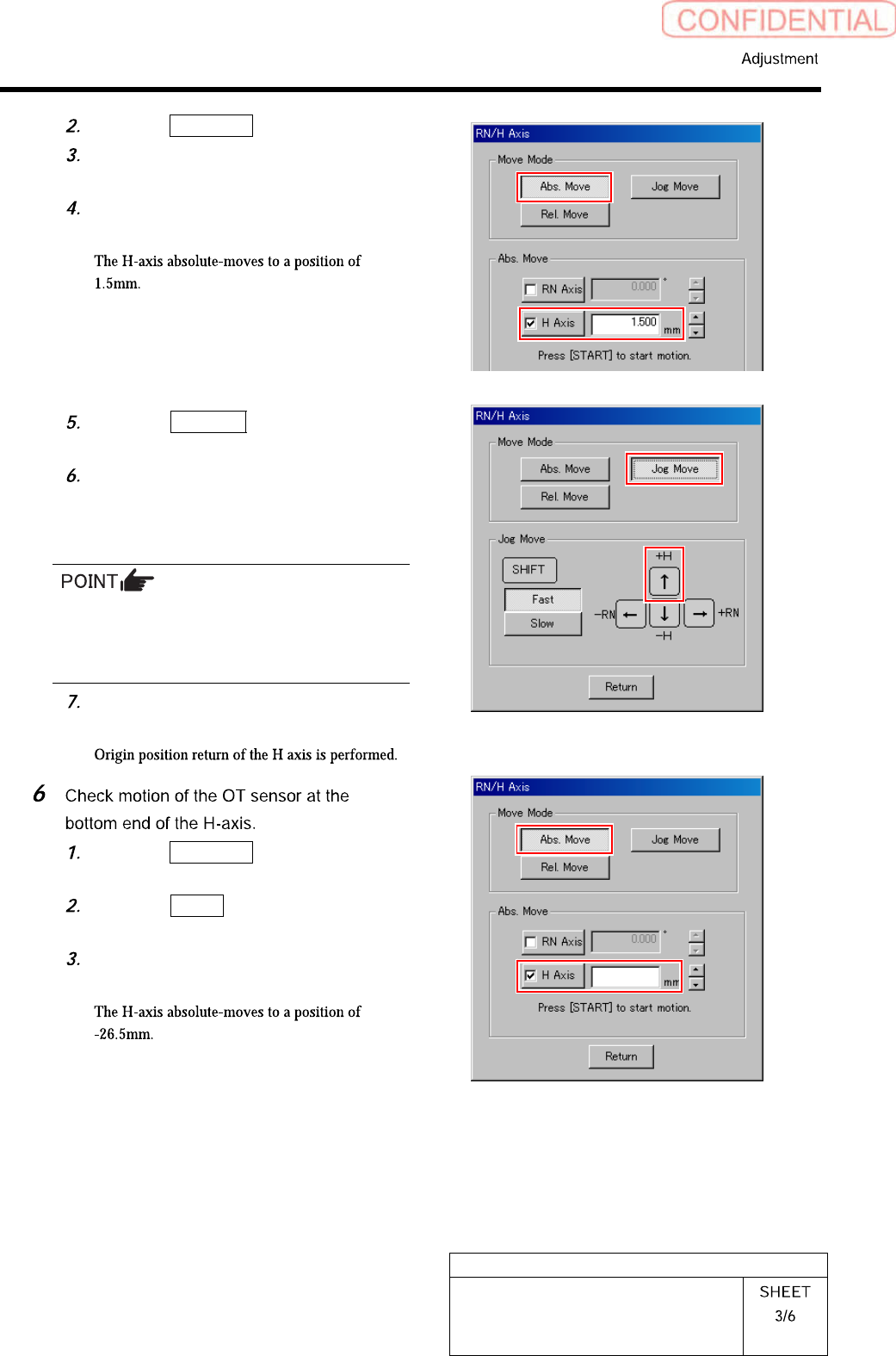

Click the Abs. Move button.
Click the H-axis button and input “1.5”
into the input space.
Press the [START] button on the
operation panel.
Click the Jog Move button in the move
mode.
Press the upward cursor to jog-move
the H-axis to a position of 1.6mm, and
check that alarm of over-travel is
displayed.
Unless the alarm of over-travel is displayed
when the H-axis is at the position of 1.6mm,
re-perform “Adjustment of OT sensor at top end
of H-axis [HLGB-10404-01]”.
Press the [ORG] button on the
operation panel.
Click the Abs. Move button on the
RN/H-axis screen.
Click the H-axis button and input
“-26.5” into the input space.
Press the [START] button on the
operation panel.
-26.5
