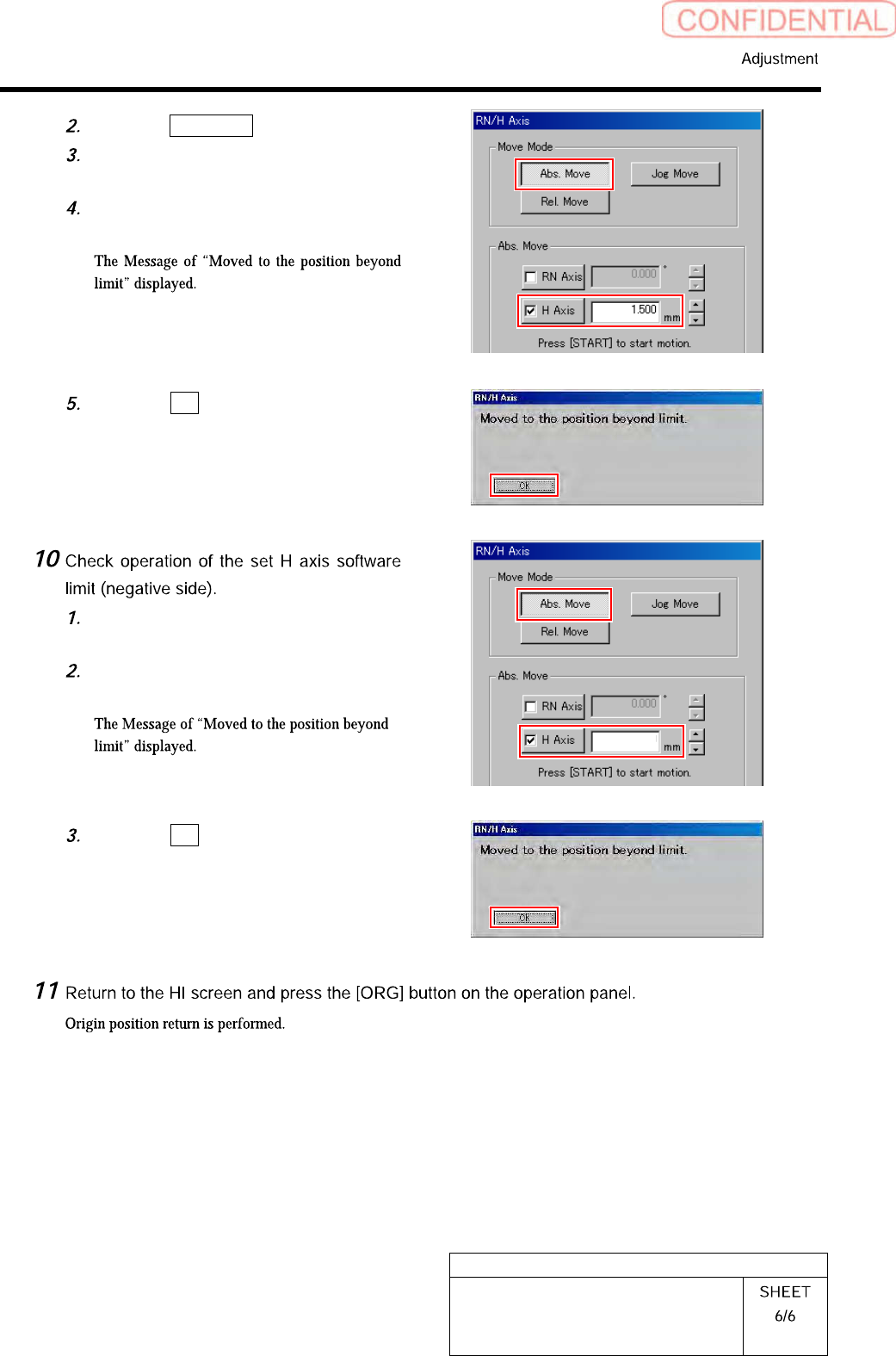

Adjustment and checking of H-axis
software limit
Click the Abs. Move button.
Click the H-axis button and input “1.5”
into the input space.
Press the [START] button on the
operation panel.
Click the OK button.
Input “-26.4” into the input space of
the H-axis in the Abs. Move.
Press the [START] button on the
operation panel.
Click the OK button.
-26.40
