CLGB-10101-01
SI-G200BB Service Manual
“Jig List Contents”
Jig List
JGGB-10101-01
Jig List
SHEET
1/12
Jig List

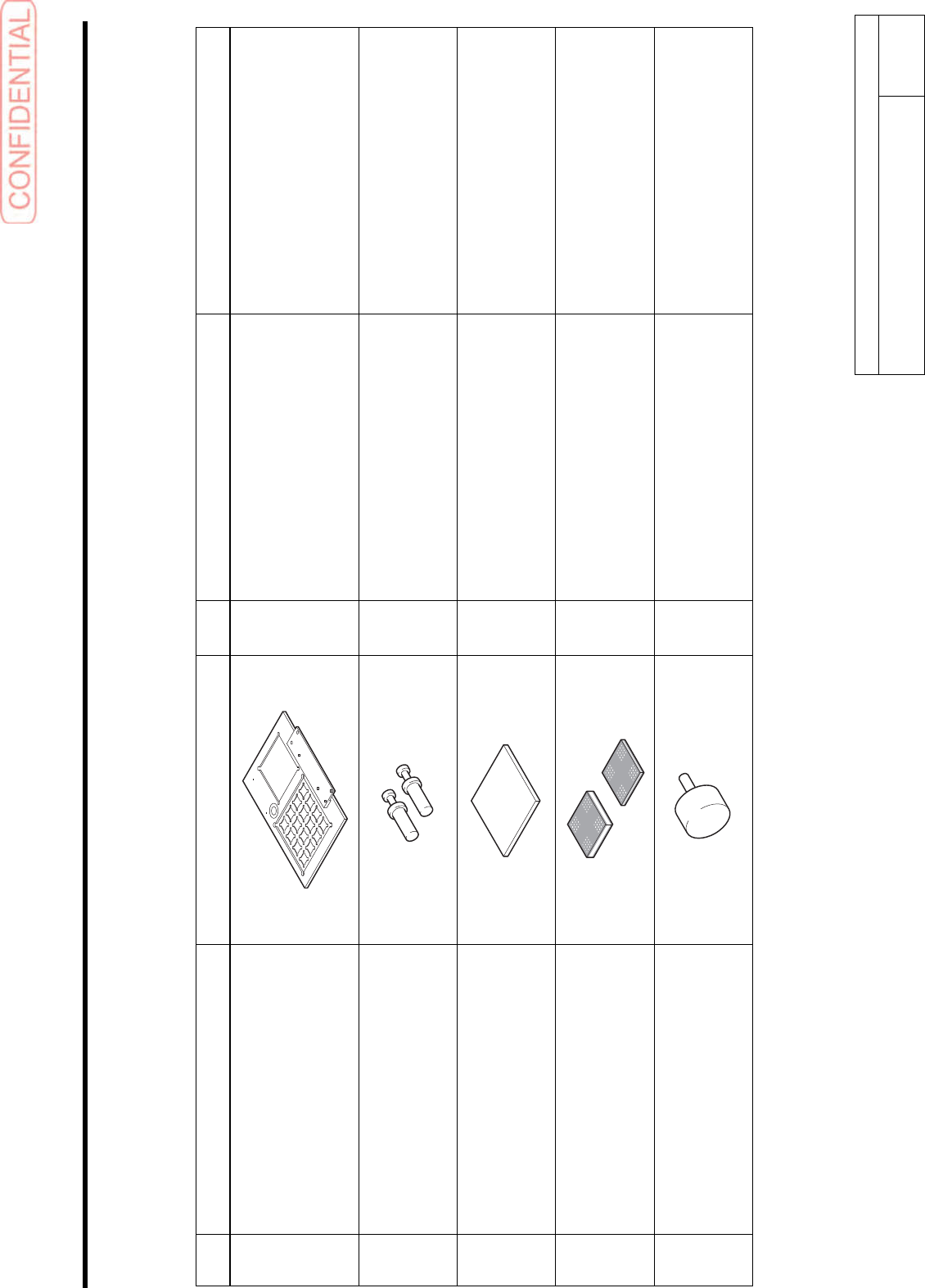

No. Jig name / Parts No. Outside appearance
Qty Uses Remarks
1 Calibration plate jig (1 set)
(Calib.ini data provided)
A-1433-203-A
1
Calibration Calibration plate B: 3-280-814-01
Urethane rubber: 2-595-904-01
Glass retainer: 3-280-792-01
2 Jig positioning pin
A-8417-273-A
2
Positioning of calibration plate
locating pin
3 Calibration jig chip (glass)
3-280-791-01
1
Auto calibration
4 Jig chip (t=3.4, 1.4)
8
Auto calibration Jig chip (1) Ass’y (t=1.4 mm):
X-2055-168-1
Jig chip (2) Ass’y (t=3.4 mm):
X-2055-169-1
5 Pickup check resolution inspection
jig B
3-280-806-01
1
Pickup check camera calibration
