BBGB-10102-01 How to check RAS alarm [Checking procedure on DR board] When the HI screen is not displayed due to t rouble on the equipment, check RAS alarm a nd perform recover y operati on according to the procedure des…

BBGB-10102-01

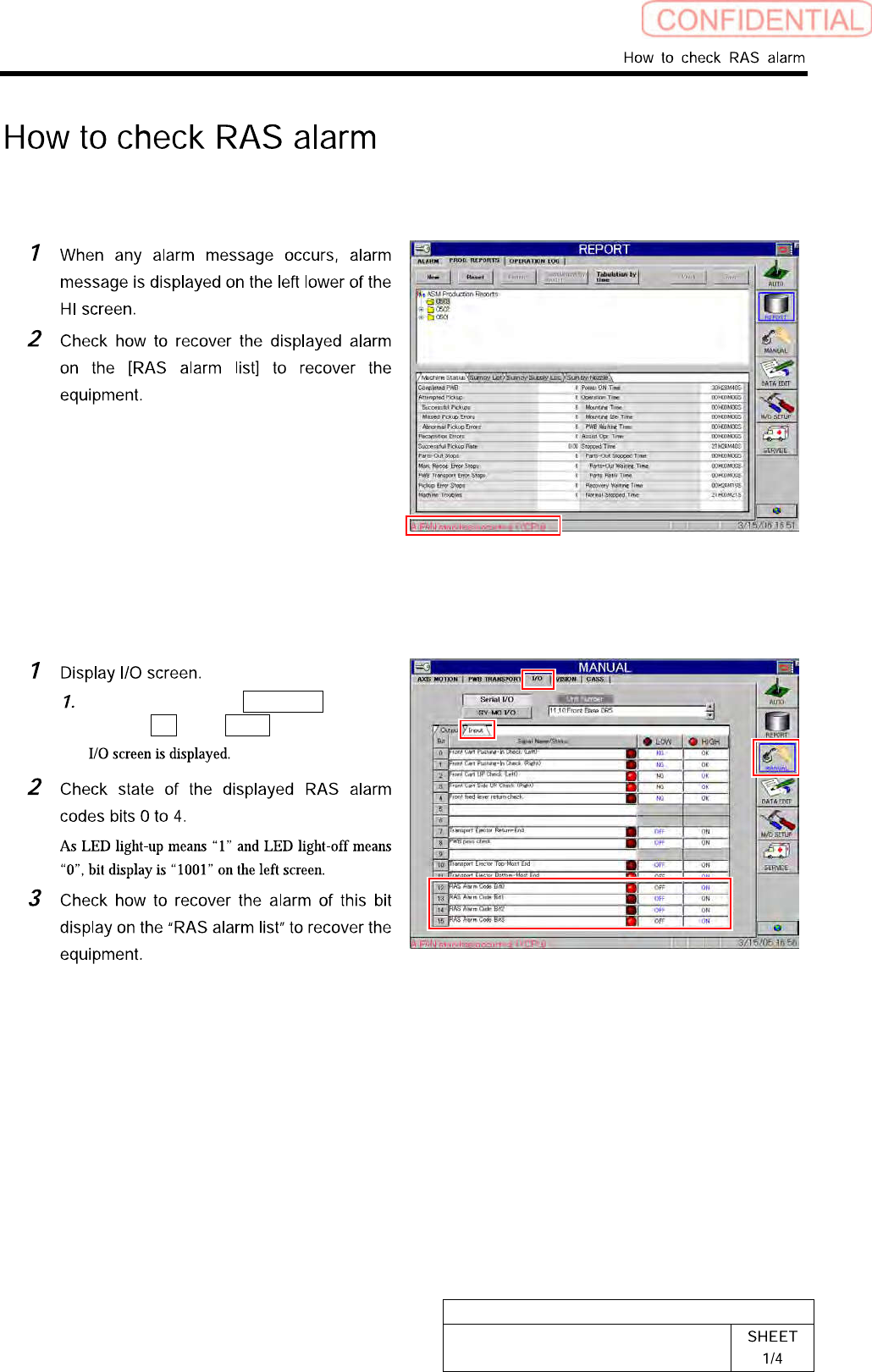

How to check RAS alarm

[Checking procedure on HI screen (alarm message)]

[Checking procedure on HI screen (bit display)]

Click in an order of MANUAL

menuI/O tabInput tab.

BBGB-10102-01

How to check RAS alarm

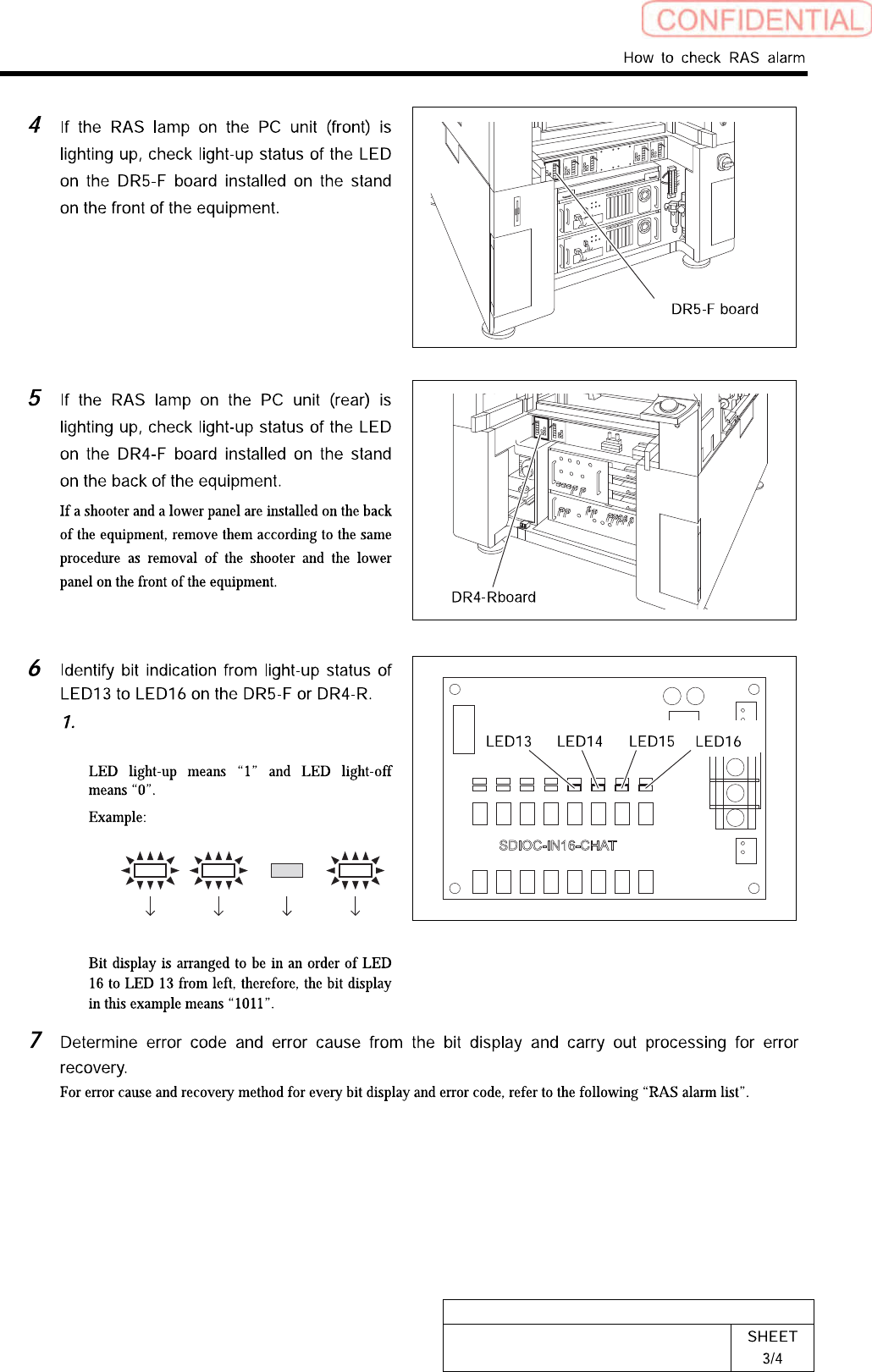

[Checking procedure on DR board]

When the HI screen is not displayed due to trouble on the equipment, check RAS alarm and

perform recovery operation according to the procedure described here.

BBGB-10102-01

How to check RAS alarm

LED light-up status is replaced with

bit display.

LED13

Bit:

LED14 LED15 LED16

1 1 0 1
