RPGB-10101-01 F A xis Belt Replacement Procedure
RPGB-10101-01
F Axis Belt Replacement Procedure

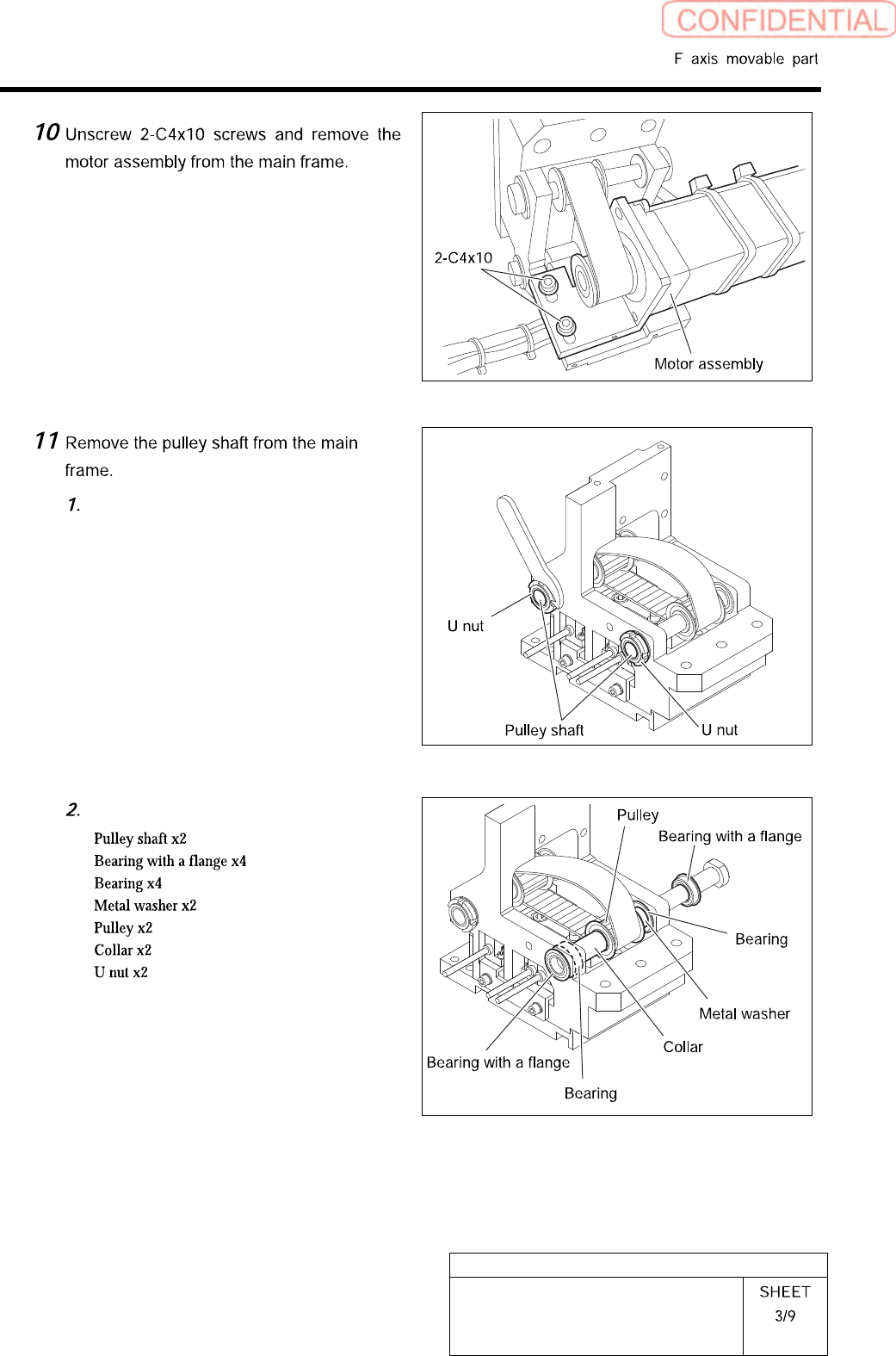

Remove the U nut with a wrench.
Remove both of two pulley shafts.
RPGB-10101-01
F Axis Belt Replacement Procedure
RPGB-10101-01
F Axis Belt Replacement Procedure
[Installment]

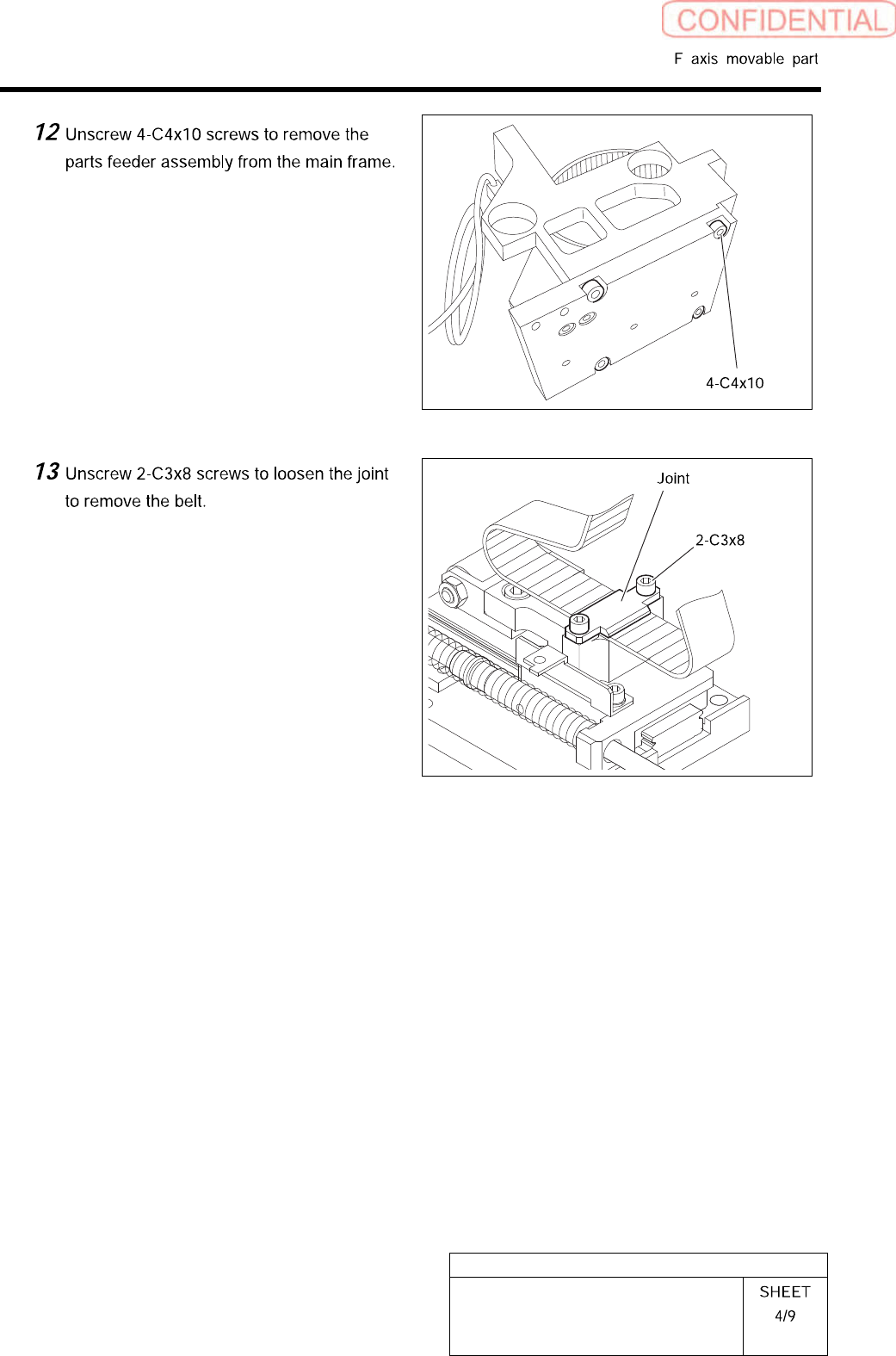

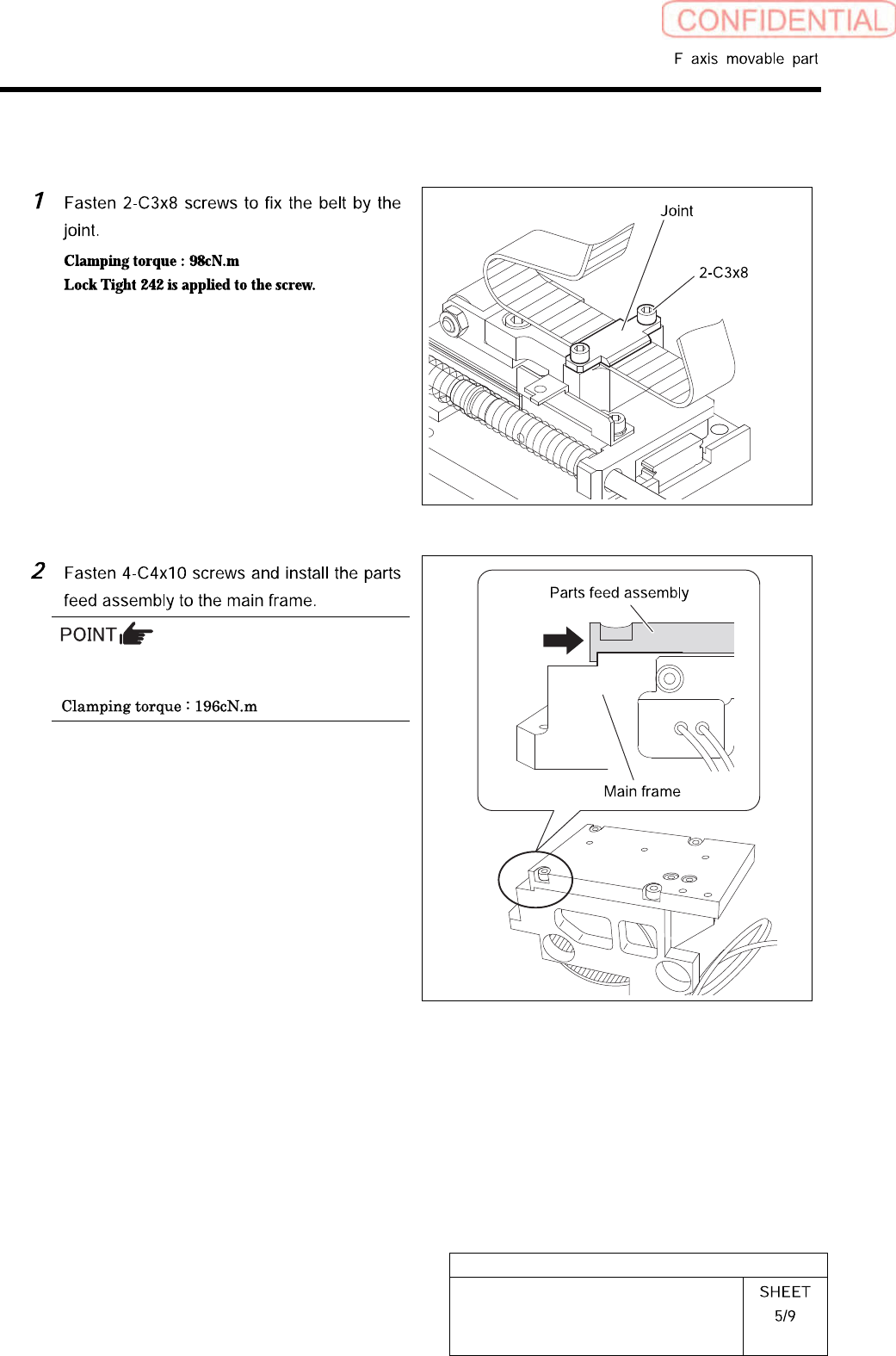

Press the parts feed assembly against the main
frame assembly.
